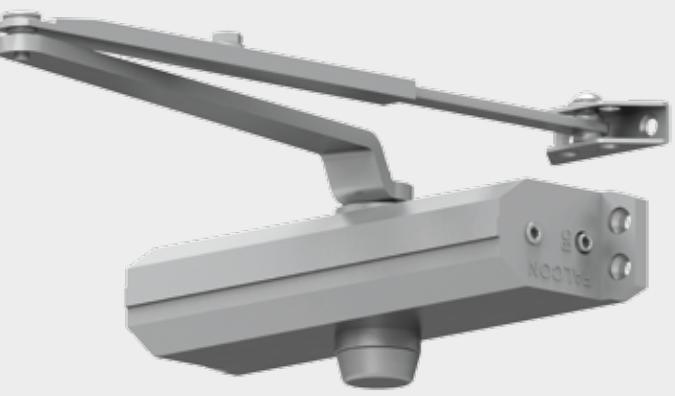

SC60A Series

Standard-duty, Grade 1 door control

Overview

When you need a dependable closer for a light or medium-duty commercial application like a small boutique or office, the Falcon SC60A Series fits perfectly. Designed for interior use with aluminum storefronts and mix use complexes, the SC60A Series offers ANSI Grade 1 durability backed by a ten-year warranty. Since the SC60A has the most common hole pattern in the industry, it's a versatile and easy choice for retrofit. The SC60A is another great example of how Falcon provides a solid product at a solid price.

Features and benefits:

• § Single piece cast aluminum body
• § Fully adjustable sizes 1-5
• § Separate adjustable general speed, latch speed and backcheck
• § Industry common hole pattern retrofittable to Norton 1600
• § Non-handed for left-or right-swinging doors
• § Heat treated pinion and steel piston
• § Staked valves
• § Universal screw pack, now including SRTs screws
• § Meets ANSI A117.1
• § Certified ANSI/BHMA A156.4, Grade 1
• § Cover is UL approved for use in fire rated assemblies
• § UL listed and compliant to UL10C and UBC 7-2 (1997)
• § 10-year warranty

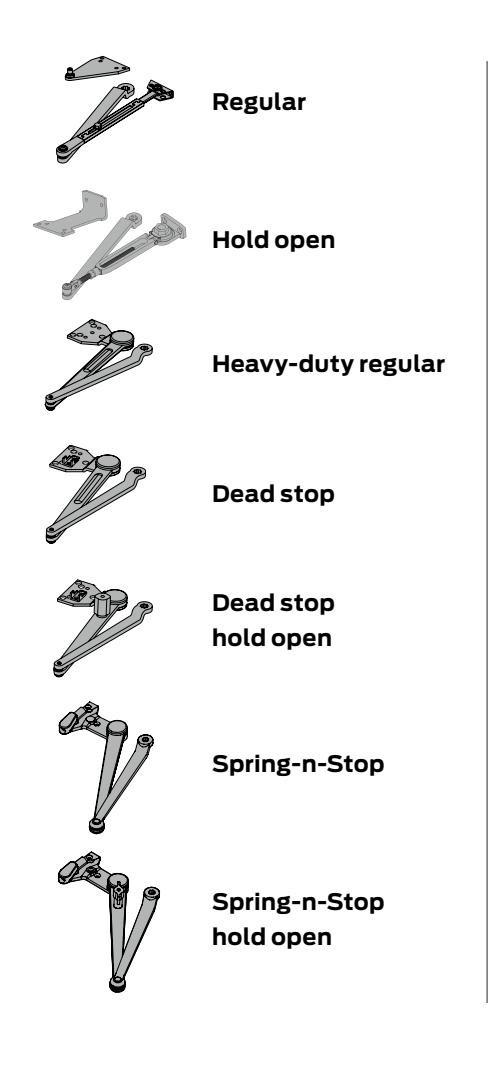

The right accessories for every job

The non-handed design of the SC60A Series, paired with its mounting position versatility, means you can install this closer just about anywhere depending on the needs of the door opening. A host of arm types and accessories make it easy to fit the demands of a variety of applications.

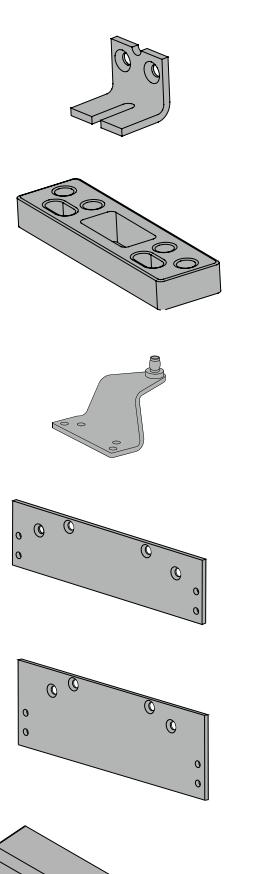

Soffit shoe support

Provides anchorage for fifth screw used with soffit shoe where reveal is less than 3 1 ⁄16" (78mm).

Blade stop spacer

Required to lower parallel arm shoe to clear 1 ⁄2" (13mm) blade stop.

Auxiliary shoe

Requires a top rail of 7" (178mm). Optional shoe replaces PA shoe for parallel arm mounting of regular arm with overhead holder/stop.

Plate

Required for top jamb mounting where head frame is less than 1 3⁄4" (44mm).

Parallel arm plate

Required for parallel arm mounting where top rail is less than 4 3⁄8" (111mm) for PA, 4 1 ⁄4" (108mm) for HD and DS, measured from the top. Plate requires 2 3⁄8" (60mm) minimum top rail measure from stop.

Cover

No cover comes standard unless otherwise specified. Optional, non-handed, slim line plastic cover available when specified.

Available finishes

695 Dark bronze

696 Brass

About Allegion

Allegion (NYSE: ALLE) is a global pioneer in safety and security, with leading brands like CISA®, Interflex®, LCN®, Schlage®, SimonsVoss® and Von Duprin®. Focusing on security around the door and adjacent areas, Allegion produces a range of solutions for homes, businesses, schools and other institutions. Allegion is a $2 billion company, with products sold in almost 130 countries. For more, visit www.allegion.com.

¹ Available on the standard cylinder, RWPA arm, HWPA arm, and DS arm.
