View PDFS-Lock and X-Lock Tailpiece Installation

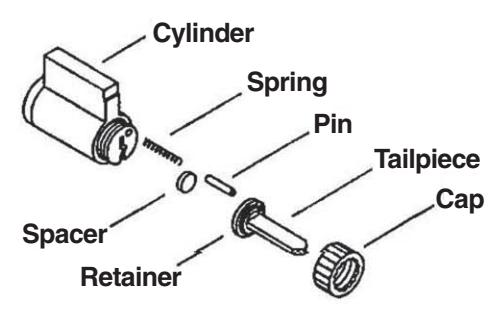

For proper function of the lock, the tailpiece must be installed correctly. All S and X locks with standard cylinders must have the tailpiece installed HORIZONTALLY on the cylinder as shown.
NOTE: The cap must be properly adjusted.
If too loose, excessive plug end play will prevent the key from being withdrawn.
If too tight, the plug will drag, making it difficult to rotate the key.
|
5.500 |
|
|---|---|
| 5.500 |
| FRONT | |
|---|---|
| 4.000 | |
| Additional Notes: | ||
|---|---|---|
| 1. None | ||
| Revision History | Revision Description: | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| А | В | С | D | E | F | D > Revised artwork | |||
| 4600-264 | 0790 | 6683 | ] | ||||||
| Material | Edited By | Approved By | EC Number | Release Date | |||||
| White Paper | J. Ellis | M. Roberts | xxxxx | 10/14 | |||||
| Notes | Notes 1. printed one side | Title | |||||||
| 2. printed black | S-Lock and X-Lock Tailpiece Installation | ||||||||
| 3. tolerance ± .13 | Creation Date | Number | Revision | ||||||
| 4. printed in country may vary | 10-28-14 | 030101-000-70 | D | ||||||
|
