Falcon RU-Series Functions RU101 RU881 2-1by16in Latch for Wood Doors Template 108092

RU-Series RU101-RU881

Door Type: Wood or Composite, Flat or Beveled Door Thickness: 1C\v" (35mm), 2" (51mm), 2Z\v" (57mm) ONLY

Latch Height: 2Z\zn" (52mm)

Backsets: FRU102-D, 2C\v" (70mm)

Dimensions shown in parentheses () are in millimeters.

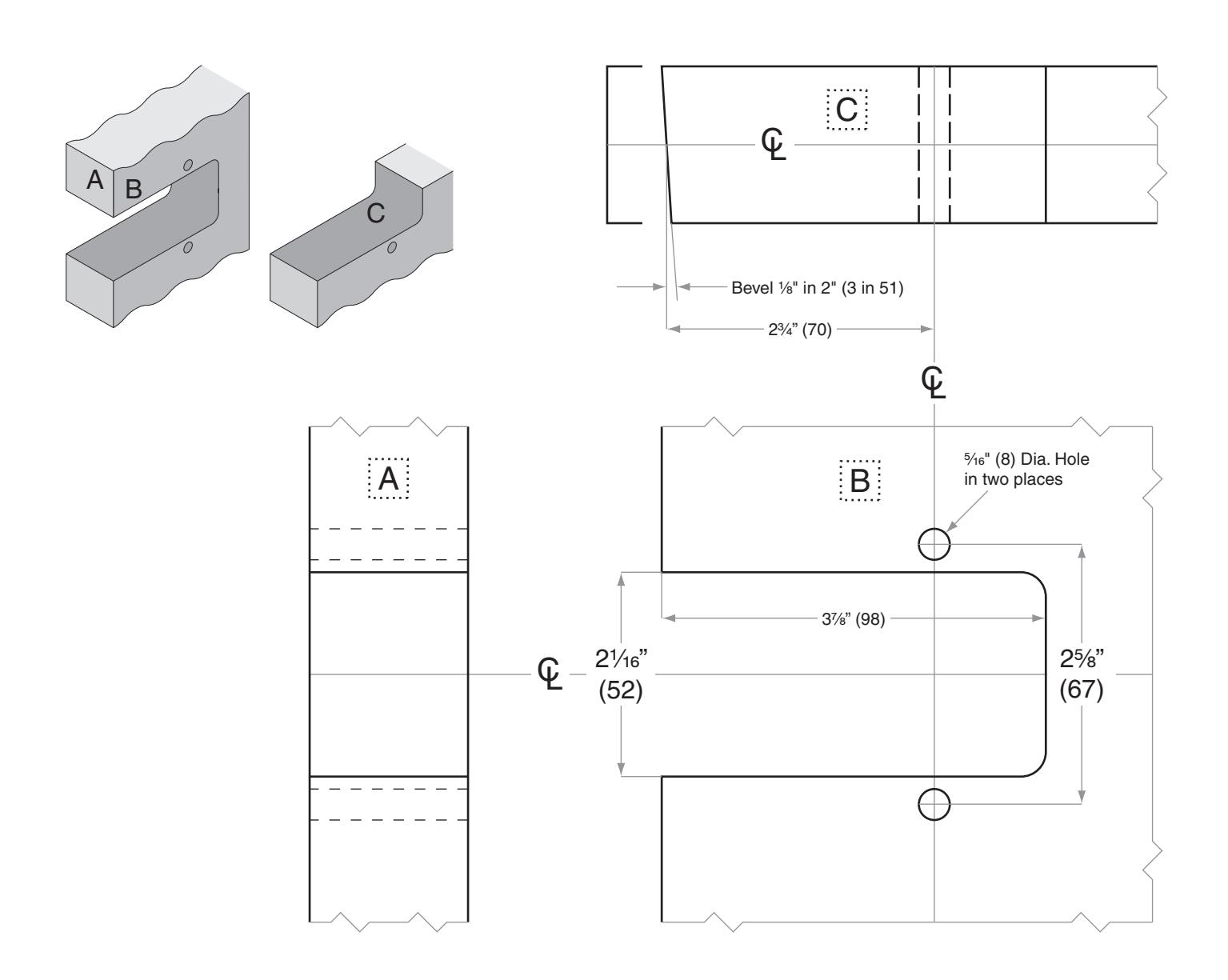

Door preparation template
