Falcon Preparing Door and Frame of Falcon Mortise Locks Installation Instructions – English 106807

INSTRUCTIONS FOR PREPARING DOOR AND FRAME AND INSTALLATION OF FALCON MORTISE LOCKS

APPLIES TO MORTISE LOCKSETS WITH LM, MM OR SM TRIM

READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLING LOCKSET

FIG. 1

HORIZONTAL

FIG. 3

LOCATING VERTICAL Q

OF LOCK AND

DOOR THICKNESS

LOCATOR

DRAW A HORIZONTAL CENTERLINE ON BOTH SIDES AND EDGE OF DOOR AT THE DESIRED KNOB CENTER HEIGHT (FIG. 1).

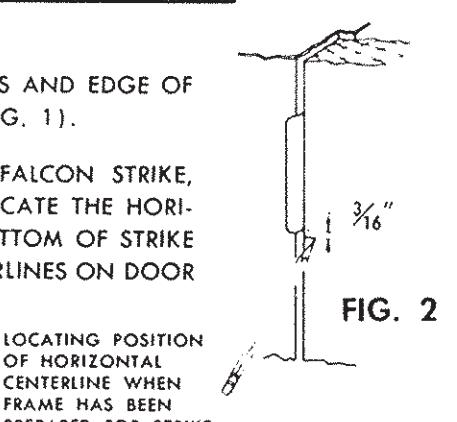

NOTE: IF FRAME HAS ALREADY BEEN PREPARED FOR A FALCON STRIKE, INSTALL STRIKE AND USE STRIKE LIP AS A REFERENCE TO LOCATE THE HORI-ZONTAL CENTERLINE POSITION. MARK DOOR 36" BELOW BOTTOM OF STRIKE LIP AS ILLUSTRATED IN FIG. 2 AND DRAW HORIZONTAL CENTERLINES ON DOOR AT THIS POSITION AS ILLUSTRATED IN FIG. 1.

OF HORIZONTAL CENTERLINE WHEN USING THE BACKSET LOCATOR FRAME HAS BEEN FURNISHED, MARK TWO POINTS ON PREPARED FOR STRIKE EACH SIDE OF DOOR, ABOVE AND BELOW THE HORIZONTAL CENTERLINE, (FIG. 3) DRAW A VERTICAL LINE THROUGH THE TWO

POINTS ON EACH SIDE OF DOOR.

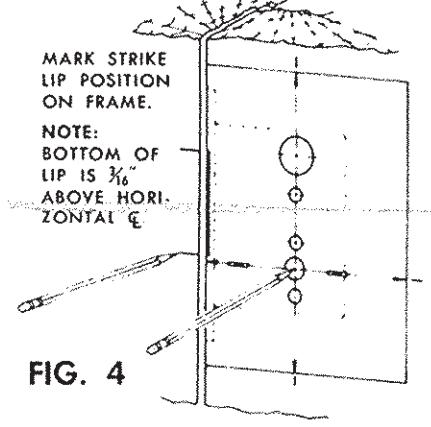

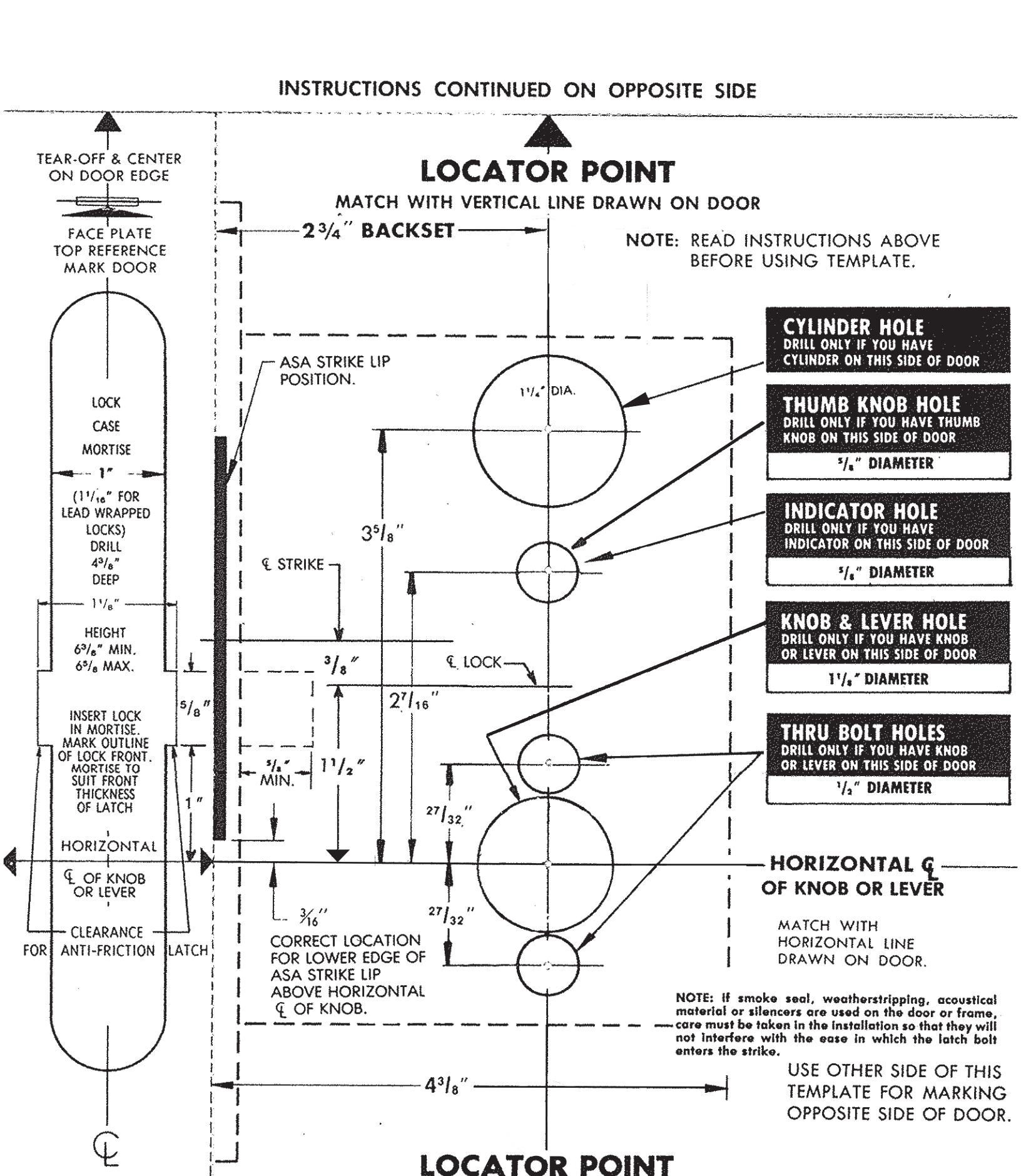

DETACH TEMPLATE AND SEPARATE INTO TWO PARTS. POSITION CORRECT SIDE OF TEMPLATE ON OUTSIDE FACE OF DOOR, ALIGNING LOCA-TOR POINTS WITH HORIZONTAL AND VERTICAL LINES DRAWN ON DOOR AS ILLUSTRATED IN FIG. 4 AND . . . CAUTION: SPOT ONLY THOSE HOLES REQUIRED FOR LOCKSET BEING INSTALLED, SEE CHART BELOW FOR COR-RECT HOLE PATTERN. MARK STRIKE LIP POSITION ON FRAME

ALLEGION © Allegion 2014 Printed in U.S.A

002385-000-70 Rev. 10/14-d

LOCK FUNCTION	OUTSIDE			INSIDE			LOCK FUNCTION	OUTSIDE			INSIDE
CATALOG NUMBER M SERIES	CYLINDER HOLE	THUMB TURN HOLE	KNOB & TRIM HOLES CYLINDER HOLE	CYLINDER HOLE	THUMB TURN HOLE	KNOB & TRIM HOLES	CATALOG NUMBER M SERIES	CYLINDER HOLE	THUMB TURN HOLE	KNOB & TRIM HOLES	CYLINDER HOLE	THUMB TURN HOLE	KNOB &
M101/161			Х			Х	M711	X	Х	Х		×	Х
M301/311/321		Χœ	Х		Х	Х	M911/931	X			Χ®
M361/371/381/411/421/811/821	Х		Х	Х		Х	M921	Х
M451	Х	Χŵ	Х		Х	Х	M941	×				Х
M521/561/581/591/631/771/851/881	Х		Х			Х	M961					Х
M531/541/551/571/621/641	Х		Х		X	X		†

①DRILL ONLY WHEN EMERGENCY RELEASE IS REQUIRED. ②VISUAL INDICATOR. ③THREADED CYLINDER T-TURN (911)

MATCH WITH VERTICAL LINE DRAWN ON DOOR

INSTRUCTIONS FOR PREPARATION AND INSTALLATION (cont.) (NOTE: INSTRUCTIONS BEGIN ON OPPOSITE SIDE)

4

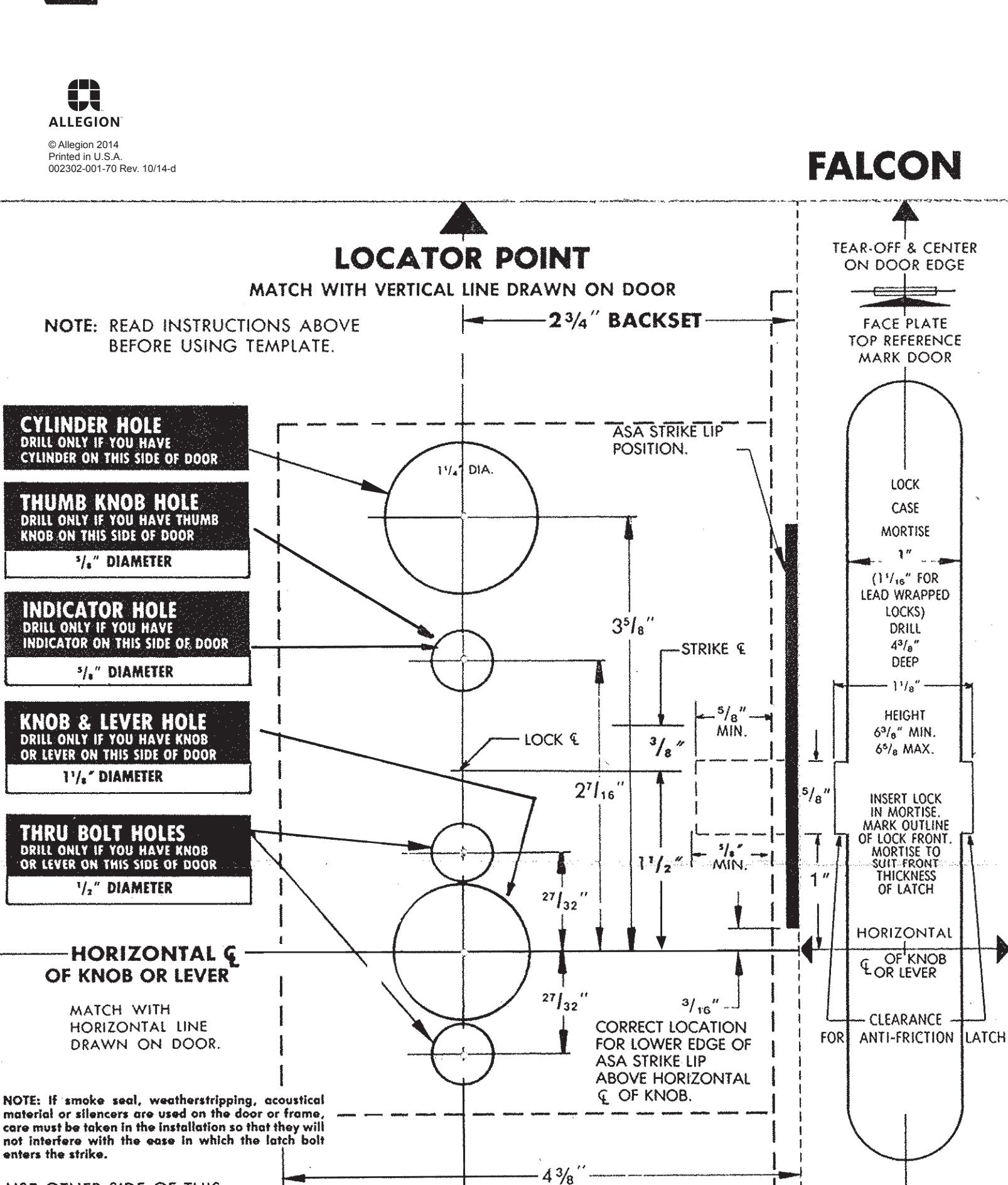

USING THE OPPOSITE SIDE OF THE TEMPLATE, POSITION ON INSIDE FACE OF DOOR ALIGNING LOCATOR POINTS WITH HORIZONTAL AND VERTICAL LINES DRAWN ON DOOR AND SPOT REQUIRED HOLES.

USE OTHER SIDE OF THIS TEMPLATE FOR MARKING OPPOSITE SIDE OF DOOR.

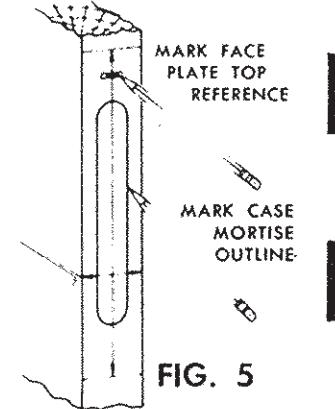

CENTER THE DOOR EDGE PORTION OF THE TEMPLATE ON DOOR EDGE AND ALIGN THE HORIZONTAL LOCATOR POINTS WITH HORIZONTAL LINES DRAWN ON DOOR, MARK OUTLINE OF CASE MORTISE AND FACE PLATE TOP REFERENCE AS ILLUSTRATED IN FIG. 5.

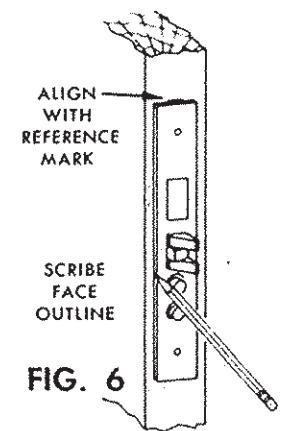

MORTISE DOOR EDGE FOR LOCK CASE TO DIMENSIONS SHOWN ON TEMPLATE. INSERT LOCK IN MORTISE, (WITH FACE PLATE) ALIGN TOP OF FACE PLATE WITH REFERENCE MARK AND SCRIBE FACE PLATE OUTLINE AS ILLUSTRATED IN FIG. 6. MORTISE TO FRONT THICKNESS

OF LOCK AND

DOOR THICKNESS

7

6

DRILL REQUIRED SIDE HOLES THROUGH OUTSIDE AND INSIDE FACES OF DOOR.

CAUTION: DRILL HOLES ONLY HALFWAY THROUGH DOOR FROM EACH SIDE.

STRIKE PREPARATION. DRAW A VERTICAL CENTERLINE ON THE FRAME ONE-HALF DOOR THICKNESS FROM STOP PLUS ANY REQUIRED ALLOWANCE FOR PAINT, WEATHERSTRIPPING, ETC. POSITION STRIKE ON FRAME, ALIGNING LIP WITH REFERENCE MARKS DRAWN ON FRAME AND CENTER MOUNTING HOLES ON VERTICAL LINE DRAWN ON FRAME, SCRIBE STRIKE OUTLINE. MORTISE TO STRIKE THICKNESS (32" DEEP). MARK LOCATION OF STRIKE OPENINGS OR STRIKE BOX, IF REQUIRED. MORTISE TO SUFFICIENT DEPTH TO ACCOMMODATE BOLTS OR STRIKE BOX.

LOCKSET INSTALLATION

• ★ ALL FALCON MORTISE LOCKS ARE PACKED COMPLETE WITH ALL NECESSARY SCREWS FOR INSTALLATION IN ANY COMBINATION OF WOOD OR METAL DOORS AND FRAMES.
• ★ ALL FALCON MORTISE LOCKS WITH KNOB TRIM HAVE THROUGH-BOLTED POST INDEXING FEATURE THAT PROVIDES SELF-ALIGNMENT AND FAST ATTACHMENT.
• 9 DRILL 1/6" DIA. PILOT HOLES FOR CASE ATTACHMENT SCREWS. ADJUST FRONT BÈVEL AS REQUIRED BY LOOSENING SCREWS AT TOP AND BOTTOM OF CASE, SET BEVEL AND SECURELY RE-TIGHTEN SCREWS. INSTALL LOCK CASE.
• ATTACH TRIM. REFER TO ENCLOSED TRIM ATTACHMENT INSTRUCTION SHEET FOR PROPER INSTALLATION OF KNOB AND CYLINDER TRIM. ATTACH FACE PLATE TO LOCK FRONT.
• 11 INSTALL STRIKE AND STRIKE BOX IF REQUIRED. CHECK TO BE SURE THAT BOLTS FULLY PROJECT INTO STRIKE OPENINGS.

LOCATOR POINT

MATCH WITH VERTICAL LINE DRAWN ON DOOR

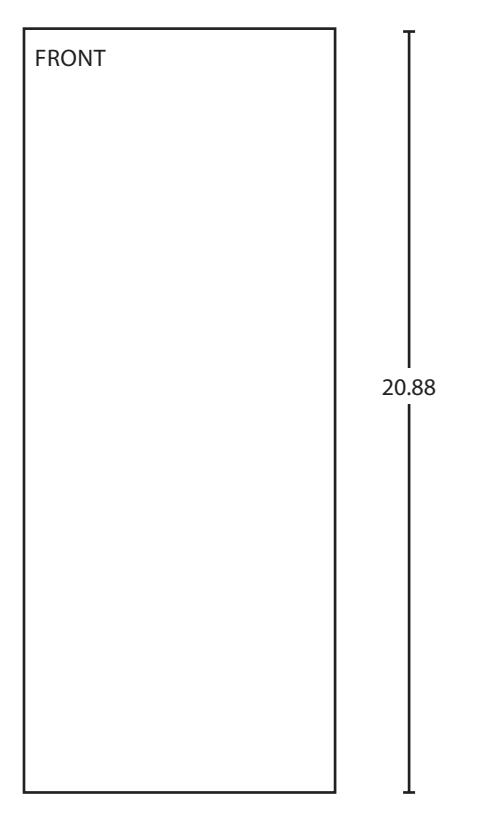

FRONT 4.41

FOLDED SHEET

BEGINNING SHEET
