ACTIVATION SENSORS FOR INDUSTRIAL DOORS

FALCON

MOTION SENSOR

FEATURES

Uni- and bi-directional microwave motion detection

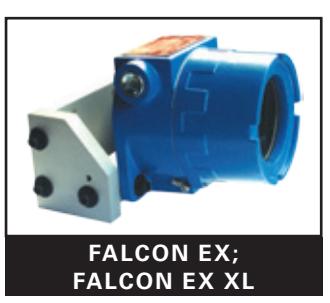

Multiple models and settings allow the Falcon family to cover various applications (explosion-proof housing available)

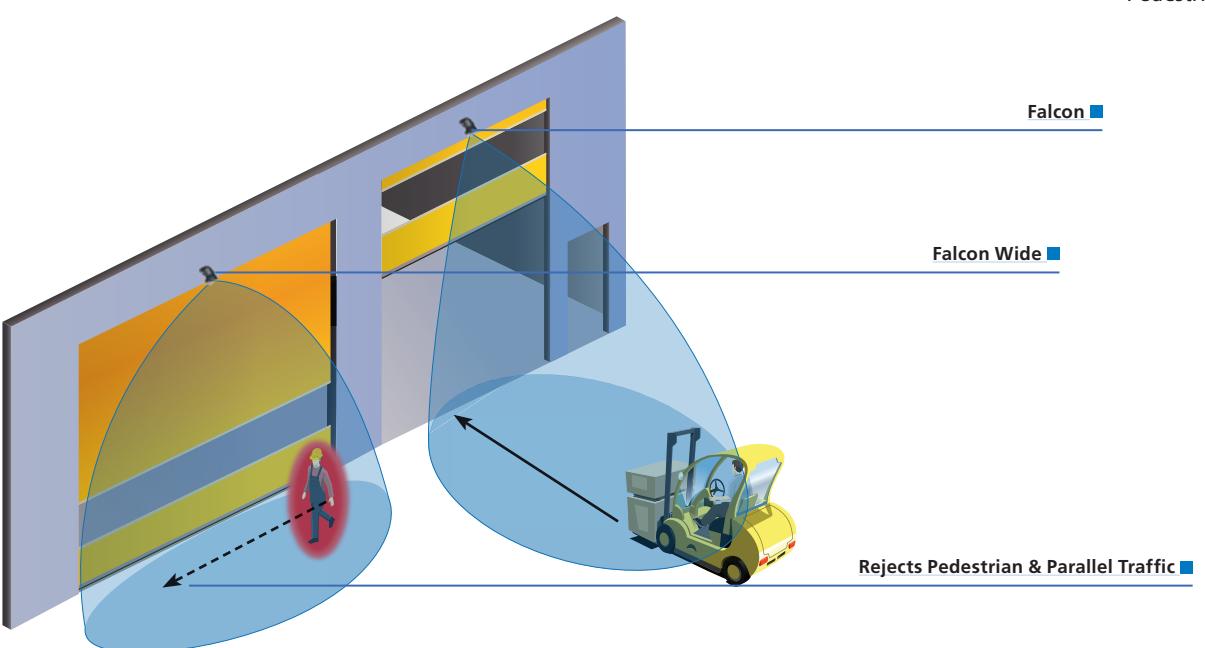

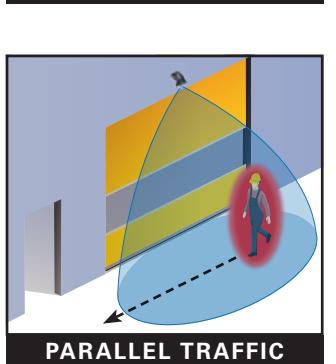

Can reject pedestrian and parallel traffic
Supplied mounting bracket allows multiple mounting options from 0º to 180º tilt
A telescopic, heavy-duty mounting bracket offers extension up to 3-feet (optional)
NEMA 4 rated enclosure provides protection against dust, cleaning agents and environmental conditions

Intelligence & Durability, All In One Enclosure

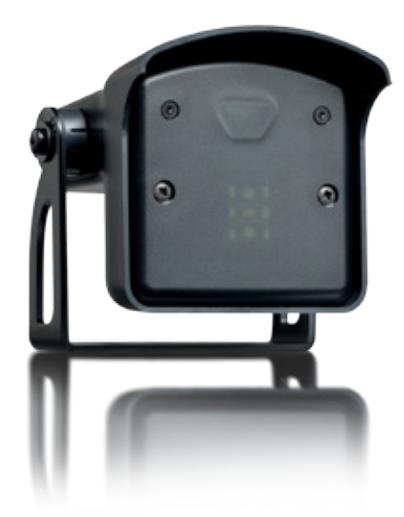

The Falcon is a uni- and bi-directional motion sensor optimizing the performance of automatic doors. The Falcon detects moving objects and can reject pedestrian traffic and parallel traffic.

By detecting vehicles and rejecting parallel traffic, the Falcon reduces door cycling and helps save energy.

Pedestrian Rejection Capable

International Door Closers, Inc.

West: 800-544-4422 • East: 800-225-6737

REJECTION

DETECTION ZONES (S=SENSITIVITY) 3 ft 9 ft 15 ft 3 ft 9 ft 15 ft 9 ft 3 ft 0 3 ft 9 ft H = 8' / Tilt Angle = 30 (Falcon XL Pattern) S= 3 S= 6 S= 9 3 ft 9 ft 15 ft 3 ft 9 ft 15 ft 9 ft 3 ft 0 3 ft 9 ft H = 16' / Tilt Angle = 30 (Standard Falcon Pattern) S= 3 S= 6 S= 9 4 ft 12 ft 20 ft 4 ft 12 ft 20 ft 18 ft 6 ft 0 6 ft 18 ft H = 11.5' / Sensitivity = 9 (Falcon Wide Pattern) 15º 30º 45º


TECHNICAL SPECIFICATIONS

Technology	K-Band Microwave Doppler Radar
Radiated Frequency Transmitter Radiated Frequency	24.125 GHz < 20 dBm EIRP
Radiated Power Density	< 5 mW / cm2
Detection Mode	Motion
Detection Zone (W×D)
Falcon (narrow pattern)	13 ft × 16 ft; @ 16 ft
Falcon XL (wide pattern) Falcon Wide (extra wide pattern)	13 ft × 6.5 ft; @ 8.2 ft 30 ft × 11 ft; @ 21 ft
Tilt Angles	0º to 180º when mounted vertically

Output Maximum Contact Voltage	Relay (free of potential change-over contact)
Maximum Contact Current	42 V AC/DC 1 A (resistive)
Maximum Switching Power	30 W (DC); 60 VA (AC)
Output Hold Time	0.5 to 9 seconds (adjustable)
Reaction Time	100 ms
Minimum Detection Speed	2.2 in/s
LED Signals	Green: Value indication Red: Detection state & parameter indication
Mains Frequency	50 to 60 Hz
Supply Voltage	12 to 24 VAC; ±10% 12 to 24 VDC; +30% / -10%
Maximum Power Consumption	< 2 W
Mounting Height
Falcon	11.5 to 23 ft

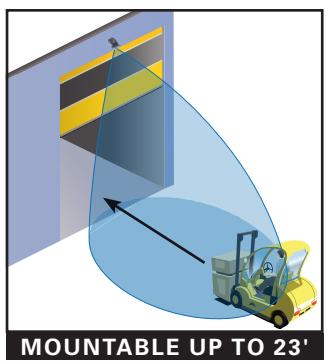

Falcon XL Falcon Wide	6.5 to 11.5 ft 11.5 to 21 ft
Dimensions (WxLxH)	4.14 × 6.54 × 3.82 inches
Materials	ABS & Polycarbonate
Temperature Range	-22º F to +140º F

Degree of Protection	NEMA 4 (IP65)
Humidity	0-95% non condensing
Norm of Conformity	EMC: 2004 / 108 / EC R&TTE: 1999 / 5 / EC

Specifications are subject to change without prior notice.
