Quality key system solutions at an unmatched value

Falcon offers some of the most versatile and easy to use cylinders, cores and keying systems in the industry, all designed to fit your budget, project and security needs. Our key system portfolio is backed by the durability, performance and security of Falcon, a proven brand name you can trust.

Falcon offers a wide variety of standard cylinders and Small Format Interchangeable Cores (SFIC). Each format is available in both open (unrestricted) and restricted keyways, designed to meet your specific key system requirements.

SFIC

• Open keyways, equivalent to Best and Arrow, include:
  • A, B, C, D, DD, E, F, G, H, J, K, L, M, N, Q, R, TB, TD
• Available both combinated and uncombinated, in 6 or 7 pin configurations
• Factory master keying available
• All core options include either Best style capping or Falcon slidebar
• Falcon branded and blank core faces are available, and can be stamped for visual key control
• Restricted dealer and end user keyways available

Conventional

• Open keyways include Falcon G, E, H, K, L, N, P and Schlage C and E
• Available in 5,6, or 7 pin configurations
• Factory master keying available
• Falcon brand and blank core faces are available, and can be stamped for visual key control
• Restricted end user keyways available

Falcon restricted keyways

• Conventional and SFIC cylinders
• Available in dealer and zip code based end user keyways
• Multi-plex (hierarchy) keyway available

Product specifications

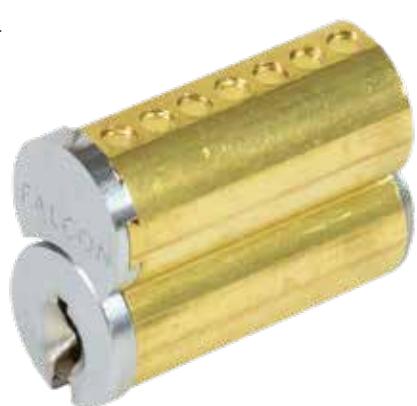

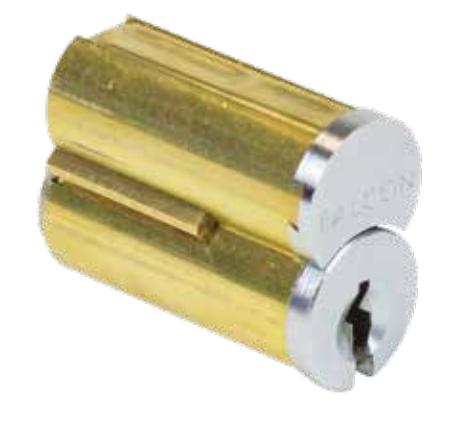

SFIC Interchangeable core

Based on the industry standard SFIC plug diameter size which is less than ¹/2", Falcon cores can be used in place of Best® and other SFIC cores on competitive locksets.

• 6- and 7-pin
• All brass cylinder and housings
• Nickel silver cylinder pins
• 12 mortise cylinder housing cam options
• 9 mortise and rim cylinder housing face finishes
• 5 core finish options

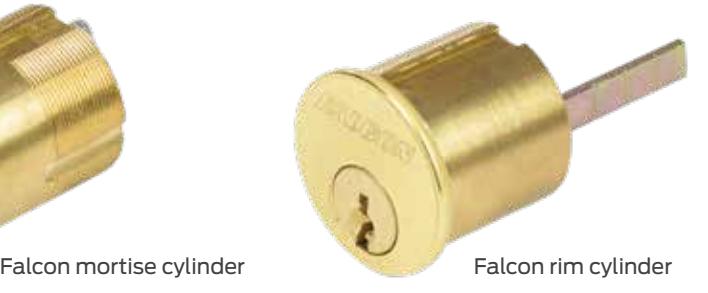

Conventional cylinders

Falcon provides uncompromising product performance to meet your functional and budgetary needs.

• Solid brass bar stock construction
• Mortise cylinder lengths from 1 ¹/8" to 2"

Keyway attributes

SFIC keyways

Factory master keying is available as defined by your needs. The Falcon A keyway is provided standard and will supplied unless otherwise specified at time of order.

Conventional keyways

Factory master keying is available as defined by your needs. The Falcon G keyway is provided standard and will supplied unless otherwise specified at time of order.

A2, A3 and A4 systems

Falcon master keying uses the A2 system (depths 0-9) standard. A4 (depths 0-5) key systems can be provided to key into existing systems. New A4 systems are created solely at the discretion of the master key department. Falcon interchangeable cores are compatible with the discontinued A3 systems, however Falcon does not master key or manage A3 systems.
