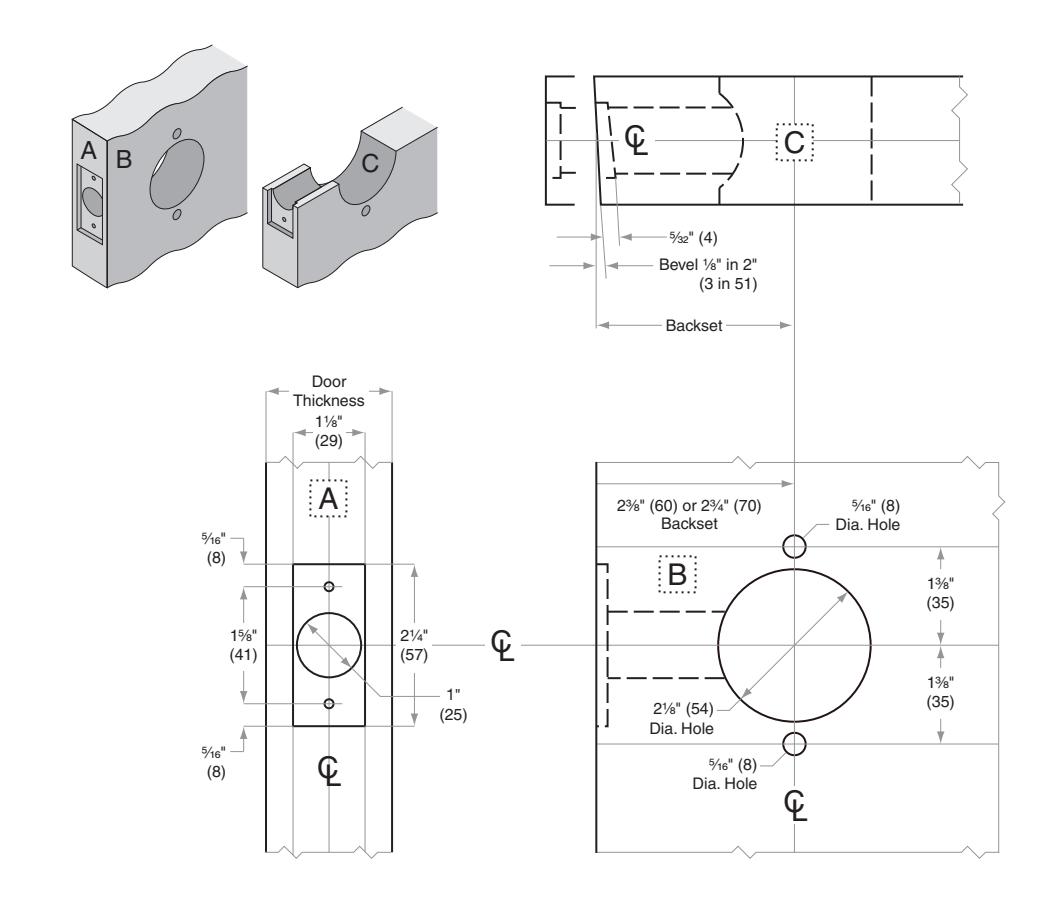

Falcon K-Series Lock Door Preparation Template 111026

K-Series

Models K101, K301, K501, K511, K561, K571, K581

Door Type: Wood or Composite, Flat or Beveled

Door Thickness: 1C\," (35 mm)–2Z\v" (57 mm)

Faceplate: Square Corner, Round Corner 1Z\," (29 mm) wide x 2Z\v" (57 mm)

Backsets: 2C\," (60 mm), 2 C\v " (70 mm)
