Falcon H2 Series H2101 and H2171 Square Corner Wood Door Template 111783

H2 Series

Model H2101, H2171

Door Type: Wood or Composite, Flat or Beveled

Door Thickness: 1C\v" (44 mm)– 2" (51 mm) Faceplate: Square Corner, 1" (25 mm) wide

Backsets: 2 C\v " (70 mm)

Dimensions shown in parentheses () are in millimeters.

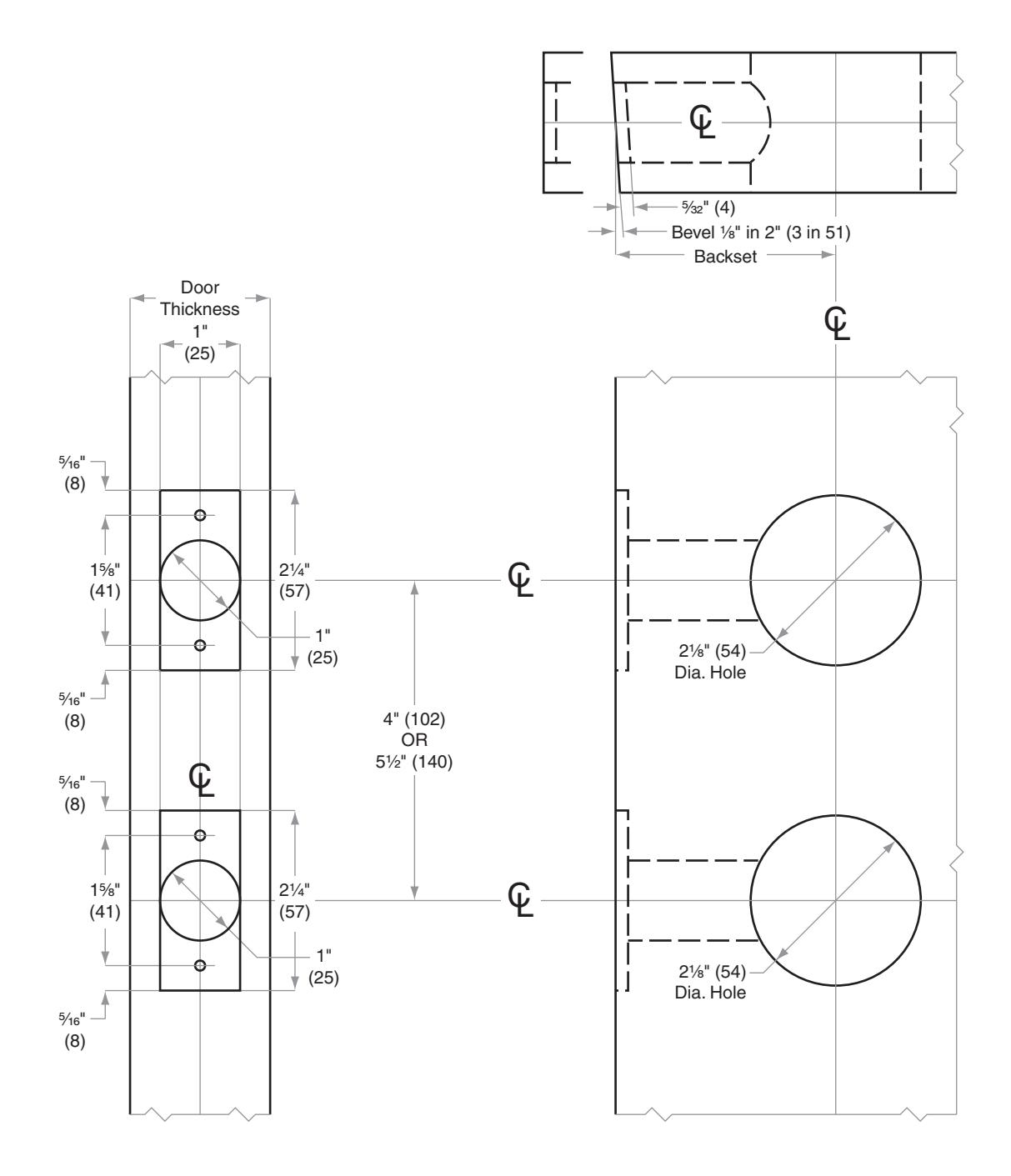

Door preparation template
