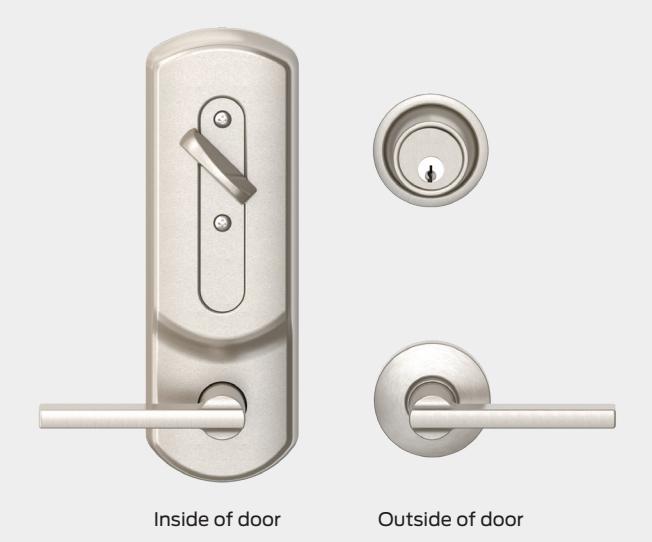

H2 Series

Interconnected lock

Falcon® is committed to delivering a solid product at a solid price. The H2 Series interconnected lock is Falcon's newest offering, featuring single motion egress to meet Life and Safety code requirements.

The H2 Series is BHMA Grade 2 certified and is available in multiple finishes and lever styles for cohesive styling/pairing with other Falcon products.

The H2 Series is designed for multi-family and public restroom applications requiring a durable, robust commercial interconnect lock.

Features and benefits

• § ANSI/BHMA Grade 2 (A156.25)
• § 3 hour UL fire rating
• § 8 lever styles and 6 finishes for suiting across other Falcon and Schlage branded products
• § Two functions available:
  • − Entrance Single Lock
  • − Bathroom with Occupancy Indicator
• § Supports 2 3⁄8" or 2 3⁄4" backsets
• § 1 3⁄4" 2" door range standard; 1 3⁄8" available
• § Standard and SFIC cores available

Lever and knob styles

Most levers can be suited with other Falcon locks and exit device trim. Levers also suite with Schlage residential lever designs, making the Falcon H2 Series perfect for multi-family applications.

Boardwalk (BRK) Broadway (BRW)

Dane (DAN) Flair (FLA) Latitude (LAT)

Quantum (QUA) Longitude (LON)

Available finishes

605/US3 Bright brass

619/US15 Satin nickel

622/US19 Matte black

625/US26 Bright chrome

626/US26D Satin chrome

643e/US11 Aged bronze

Ordering instructions

Order using standard Falcon order form as follows:

H2 Series interconnected lock
Function	Cylinder	Lever	Finish	Handing	Door thickness
H2101	G	FLA	626	RH	1 3⁄4"

Lock specifications
Function	H2101 - entrance lock, deadbolt single cylinder H2171 - public bathroom with occupancy indicator, no cylinder (interior locking only)
Cylinder	Standard P (6 pin cylinder pinned to 5 chambers) L (Less 6 pin cylinder) P6 (6 pin cylinder pinned to 6 chambers) CP6 (Schlage C 6 pin cylinder)	SFIC G (Falcon SFIC) B (Less SFIC) BB (Best SFIC) BDC (Disposable SFIC) H (Construction core SFIC)
Lever	AVA, BRK, BRW, DAN, FLA, LAT, LON, QUA
Finish	605 Bright brass 619 Satin nickel	622 Matte black 625 Bright chrome	626 Satin chrome 643e Aged bronze
Handing	LH (Left Hand) LR (Left Hand Reverse)	RH (Right Hand) RR (Right Hand Reverse)
Door thickness	1 3⁄4" to 2" standard (1 3⁄8" available, must be specified)
