Falcon (F)XX-V Device with FSA or FSE Feature Wood Door Template 108971
Open the original PDF document
View PDF(F)XX-V Device with FSA or FSE Feature

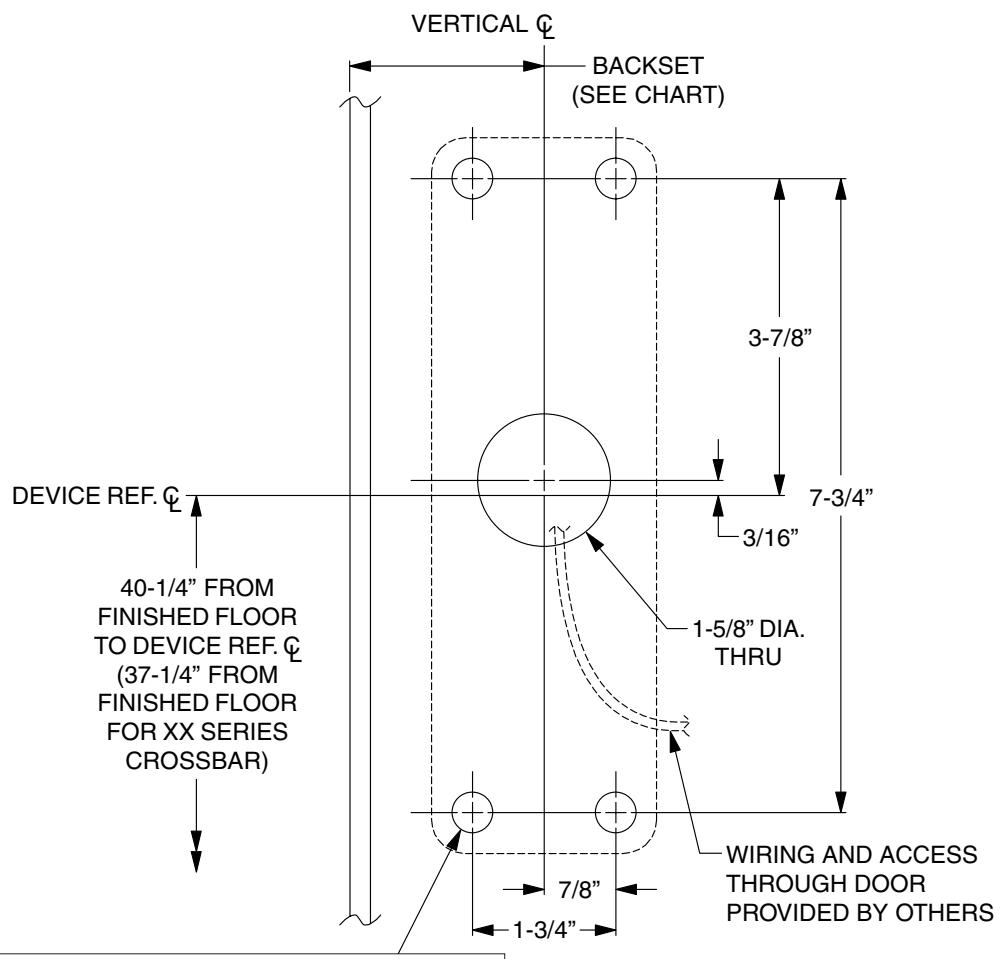

Wood Door, LHR Shown, RHR Opposite
- • For exit only device or device with non-thrubolting trim, drill >\nv"(4 mm) diameter hole x 1Z\v" (32 mm) deep, or refer to Template W-4014 for sexbolt preparation (4 holes).
- • For device with thrubolting trim, refer to trim template.
- • Fire rated devices require sexbolts.
| INSTALLATION | BACKSET | |
|---|---|---|
| 3-1/2" MIN. STILE | FLUSH DOOR | |
| TWO VERTICAL ROD DEVICES | 1/2 OF STILE | 2-3/4" |
| VERTICAL ROD x MORTISE DEVICE | 2-3/4" | 2-3/4" |
|
VERTICAL ROD x RIM DEVICE
(USING 571 STRIKE) |
2-3/4" | 2-3/4" |
|
VERTICAL ROD x RIM DEVICE
(USING 571-A STRIKE) |
2-1/4" | 2-1/4" |
NOTE: 571 AND 571-A STRIKES ARE NOT APPROVED FOR FIRE RATED APPLICATIONS.
TEMPLATE
W-5016-a
