Falcon (F)XX-R Rim Device Wood Door Template 108801
Open the original PDF document
View PDF(F)XX-R Rim Device

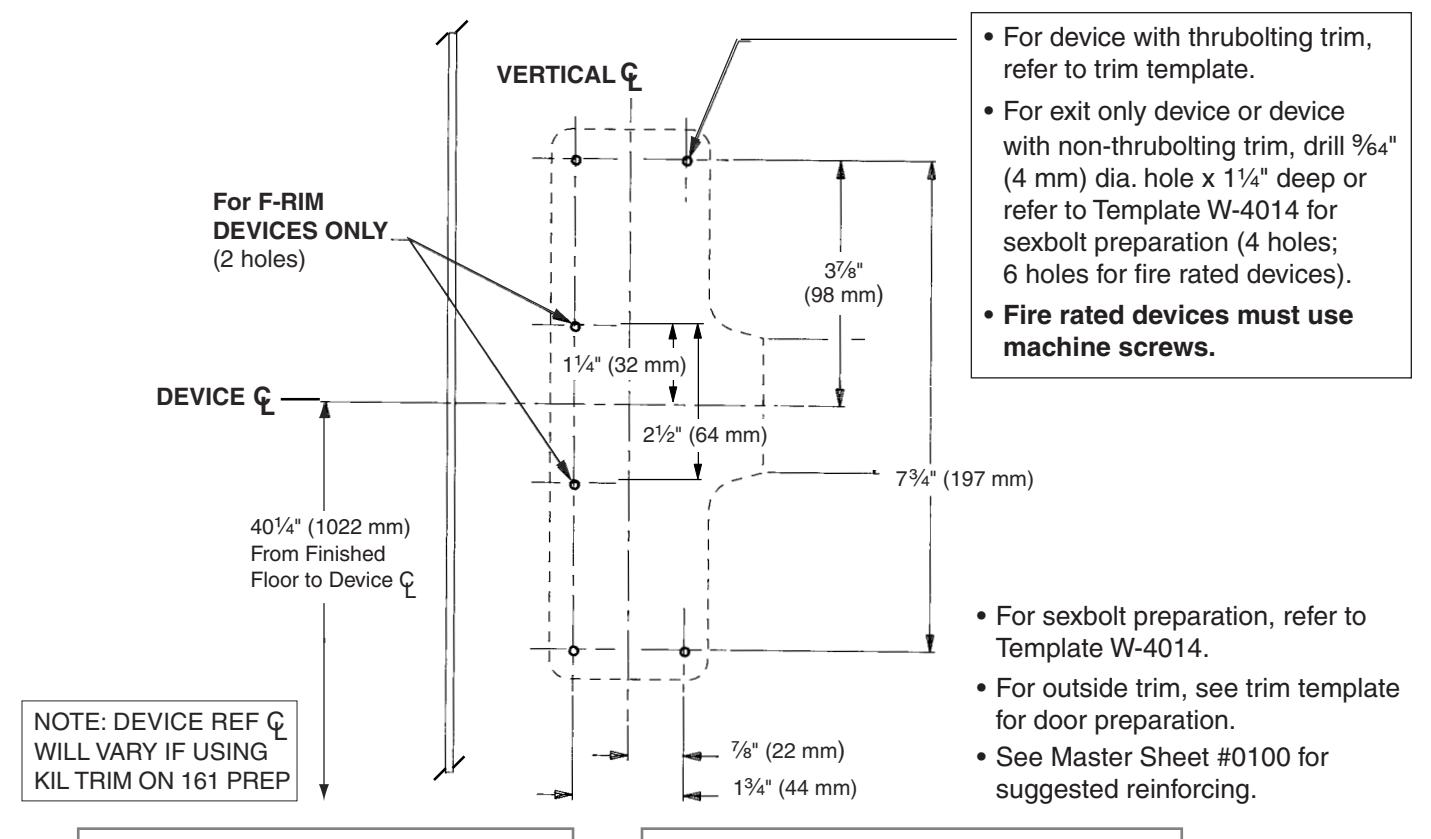

Rim Panic and Fire Exit Device, Wood Door, LHR Shown, RHR Opposite

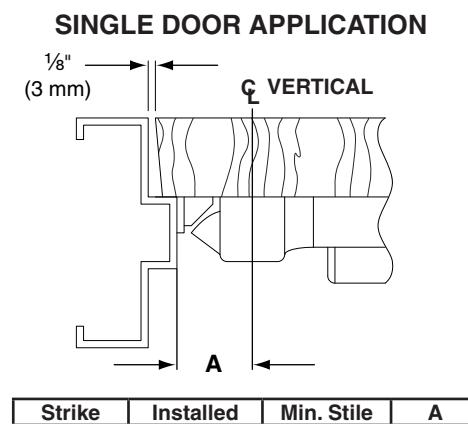

| Strike | Installed | Min. Stile | A |
|---|---|---|---|
| 565 | Surface | 3C\v" | 2" |
| 565 | Flush | 3Z\v" | 1Z\x" |
| 570* | Surface | 4" | 2Z\v" |
| 579 | Surface | 3Z\x" | 1B" |
| 490* | Surface | 4" | 2Z\v" |
| F-570* | Surface | 4" | 2Z\v" |
| F-490* | Surface | 4" | 2Z\v" |
*Covers ANSI A115.2 stock prep using a B\, " (16 mm) stop height.

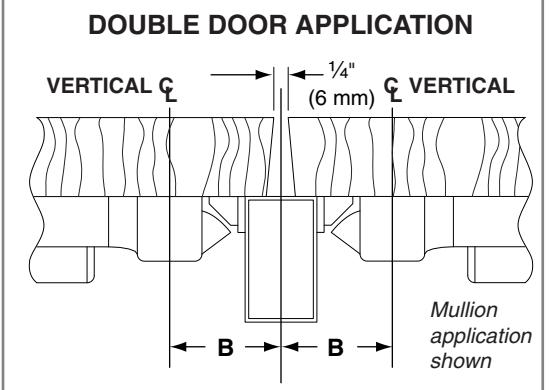

| Strike | Installed With | Min. Stile | B |
|---|---|---|---|
| 565 | 2923 Mullion | 3C\v" | 2C\v" |
| 565 | 4023 Mullion | 4" | 3" |
| 570 | 2923 Mullion | 4" | 3" |
| 570 | 4023 Mullion | 4Z\v" | 3Z\v" |
| 579 | 2923 Mullion | 3C" | 2C" |
| 579 | 4023 Mullion | 3B" | 2B" |
| 490 | 2923 Mullion | 4" | 3" |
| 490 | 4023 Mullion | 4Z\v" | 3Z\v" |
| F-570 | F-4023 Mullion | 4Z\v" | 3Z\v" |
| F-490 | F-4023 Mullion | 4Z\v" | 3Z\v" |
| 571 | 18/XX Vertical | 3M" | 2M" |
| 571-A | 18/XX Vertical | 3C" | 2C" |
Note: 571 and 571-A strikes are not approved for fire rated applications.
TEMPLATE
W-1401-a
