Falcon (F)XX-M Mortise Device Wood Door Template 108802

(F)XX-M Mortise Device

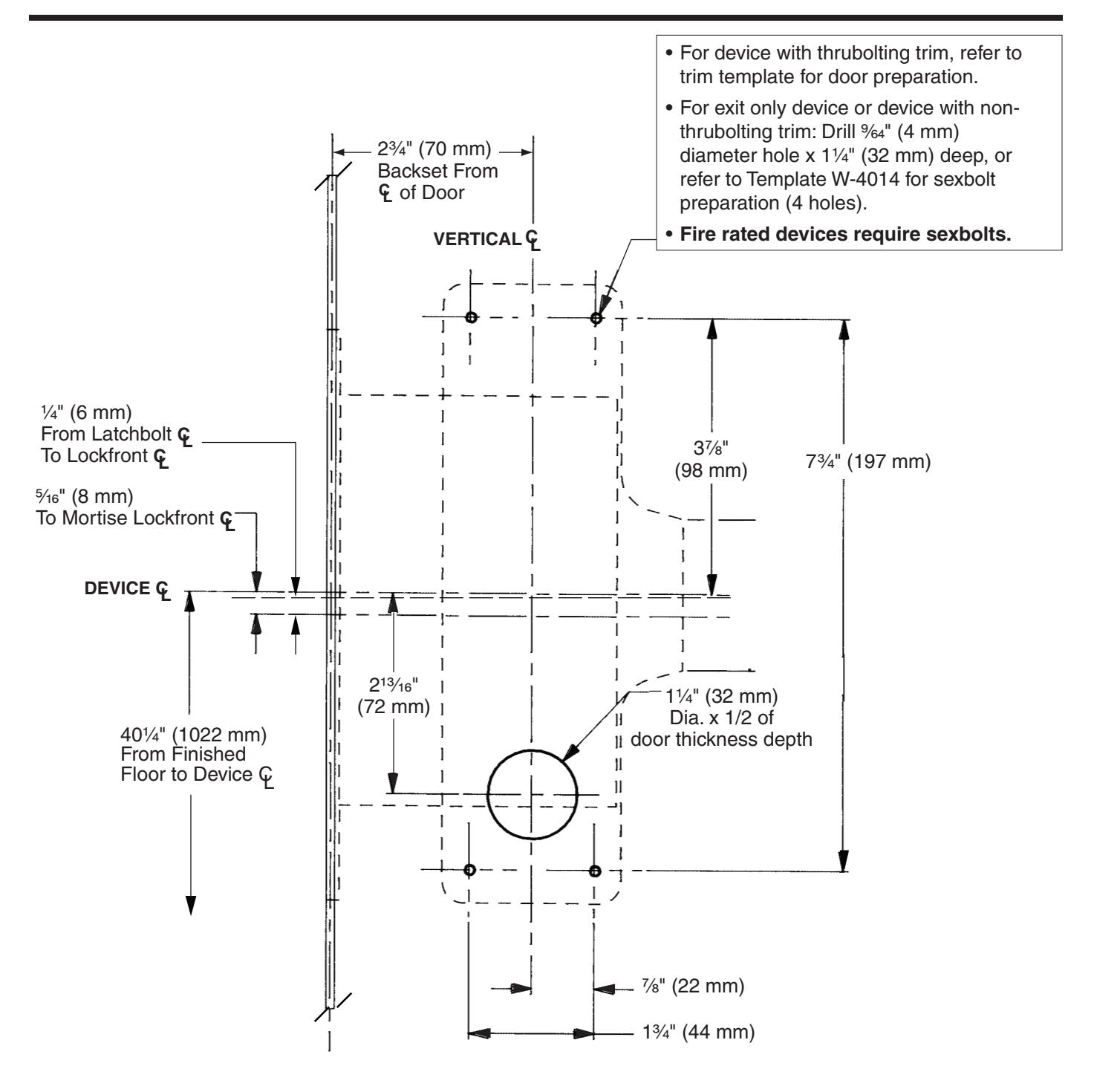

Mortise Panic and Fire Exit Device, Wood Door, LHR Shown, RHR Opposite

• For mortise lock preparation, refer to Template W-4012.
• For doors with existing mortise lock preparation, the device ref $\backslash mathbb\{Q\}$ is 5/16" (8 mm) above the lockfront $\backslash mathbb\{Q\}$ .
• For outside trim, see trim template for door preparation.
• For sexbolt preparation, refer to Template W-4014.

TEMPLATE

W-1410-a
