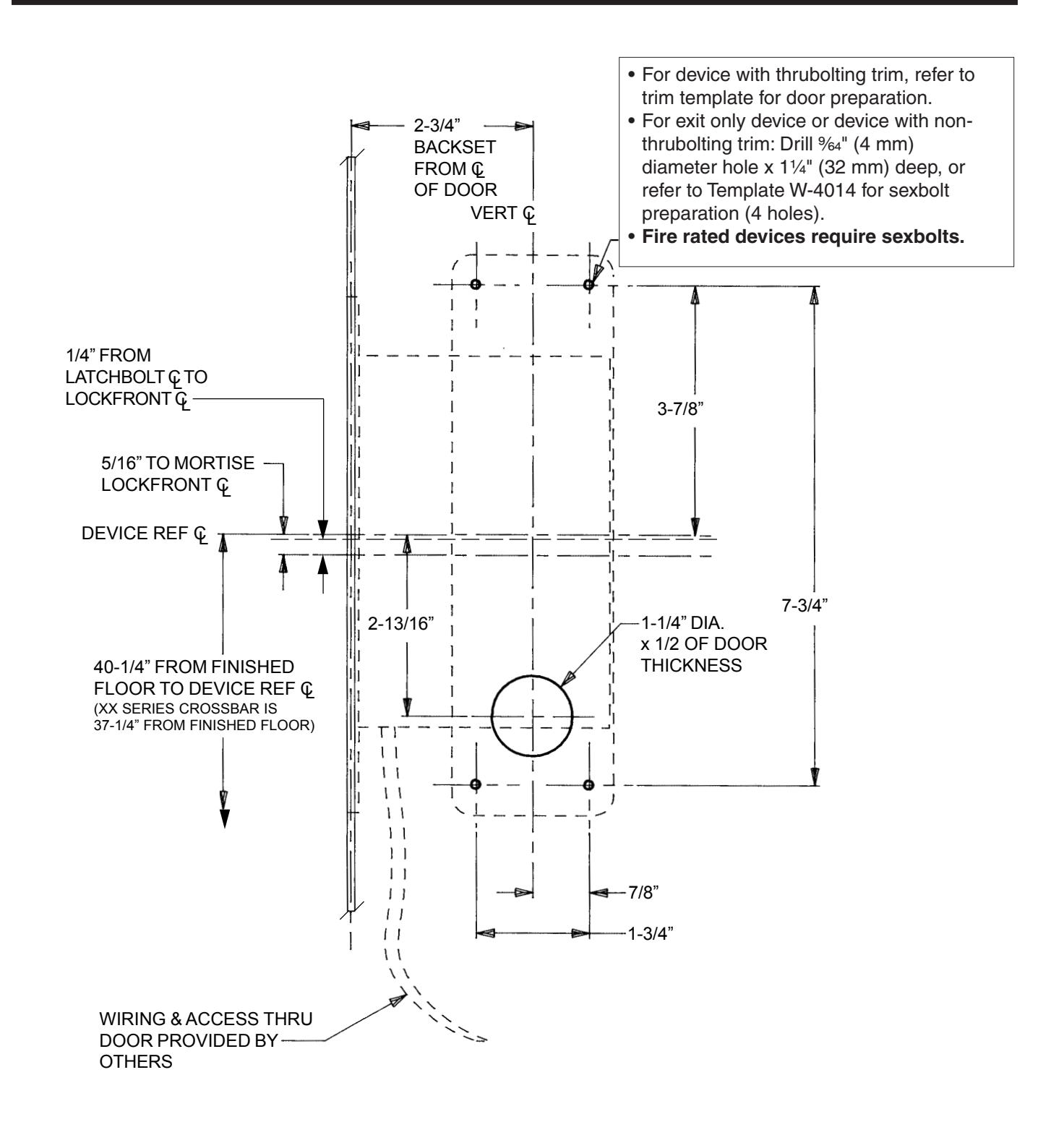

(F)XX-M Device with FSA or FSE Feature

Wood Door, LHR Shown, RHR Opposite

For mortise lock preparation, refer to Template W-4012.
For doors with existing mortise lock preparation, the device ref $\mathbb{Q}$ is 5/16" (8 mm) above the lockfront $\mathbb{Q}$ .
For outside trim, see trim template for door preparation.
For sexbolt preparation, refer to Template W-4014.

TEMPLATE

W-5010-a
