Falcon (F)XX-M Device with FSA or FSE Feature Metal Door Template 108605

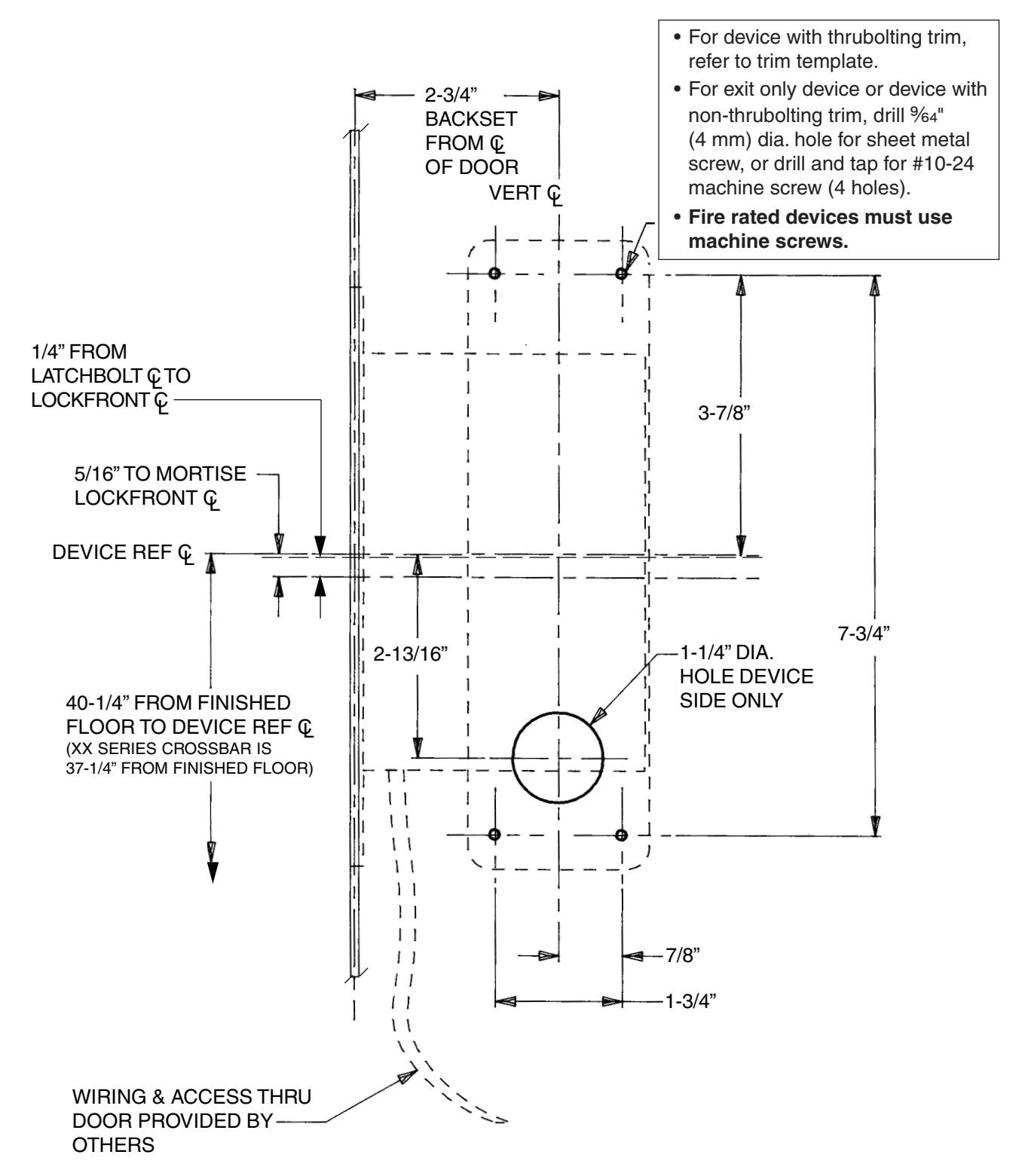

(F)XX-M Device with FSA or FSE Feature

Metal Door, LHR Shown, RHR Opposite

• For doors with existing mortise lock preparation, the device ref $\backslash mathbb\{Q\}$ is 5/16" (8 mm) above the lockfront $\backslash mathbb\{Q\}$ .
• See Template T-4012 for mortise lock preparation.
• For outside trim, see trim template for door preparation.
• For sexbolt preparation, refer to Template T-4014.
• See Master Sheet #0100 for suggested reinforcing.

TEMPLATE

T-5010-a
