Falcon (F)XX-C Concealed Vertical Device (5in Stile) Wood Door Template 108805
Open the original PDF document
View PDF(F)XX-C Concealed Vertical Device

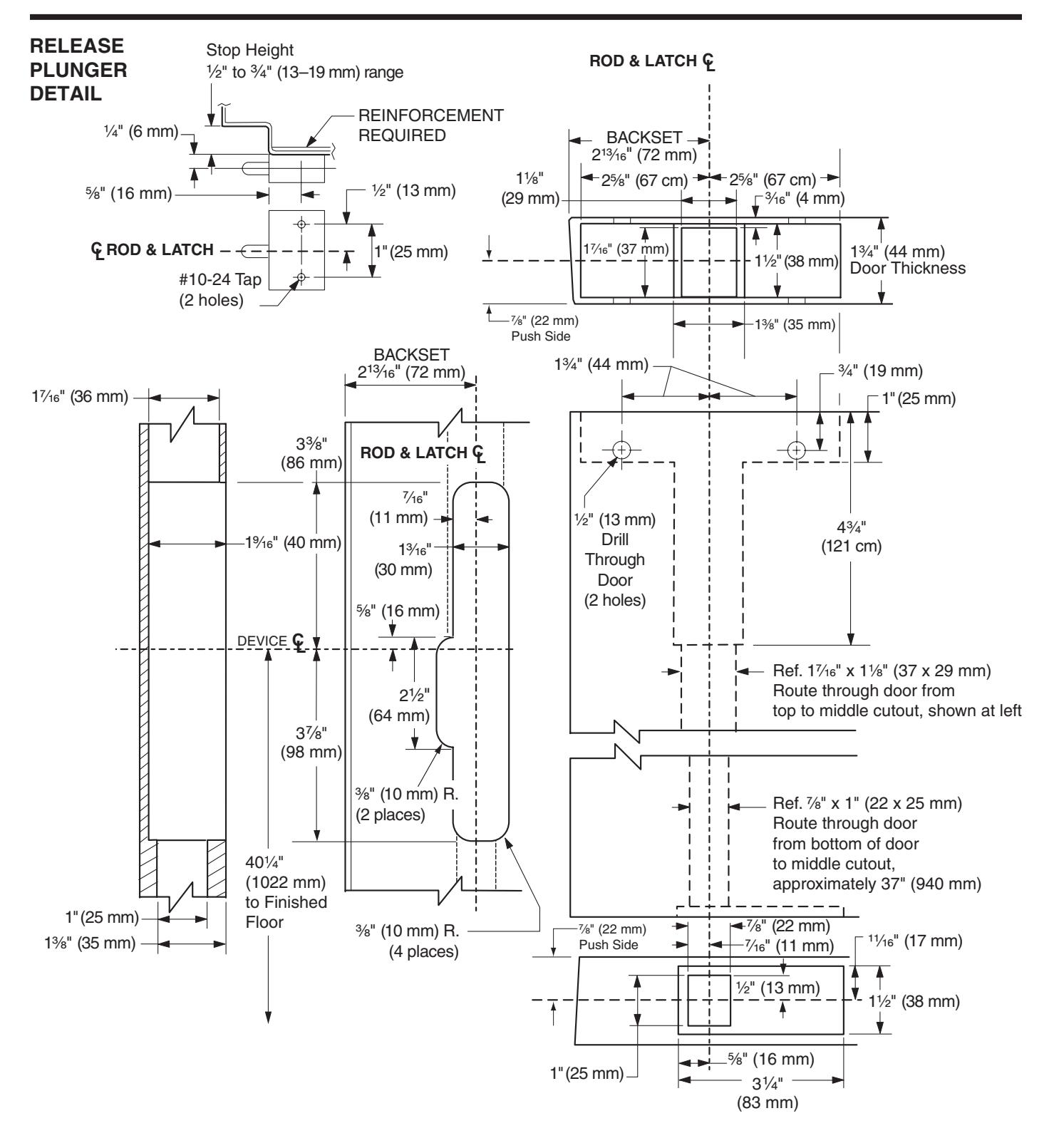

Concealed Vertical Rod Panic and Fire Exit Device With Metal Edge 5" Stile
- For outside trim, see trim template for door preparation.
- See Template W-1300 for steel door wrap preparation.
- For Less Bottom Rod (LBR) application (20 minute rating), refer to Template W-5494 for auxiliary fire latch preparation and omit bottom preparation.
TEMPLATE
W-1460-c
