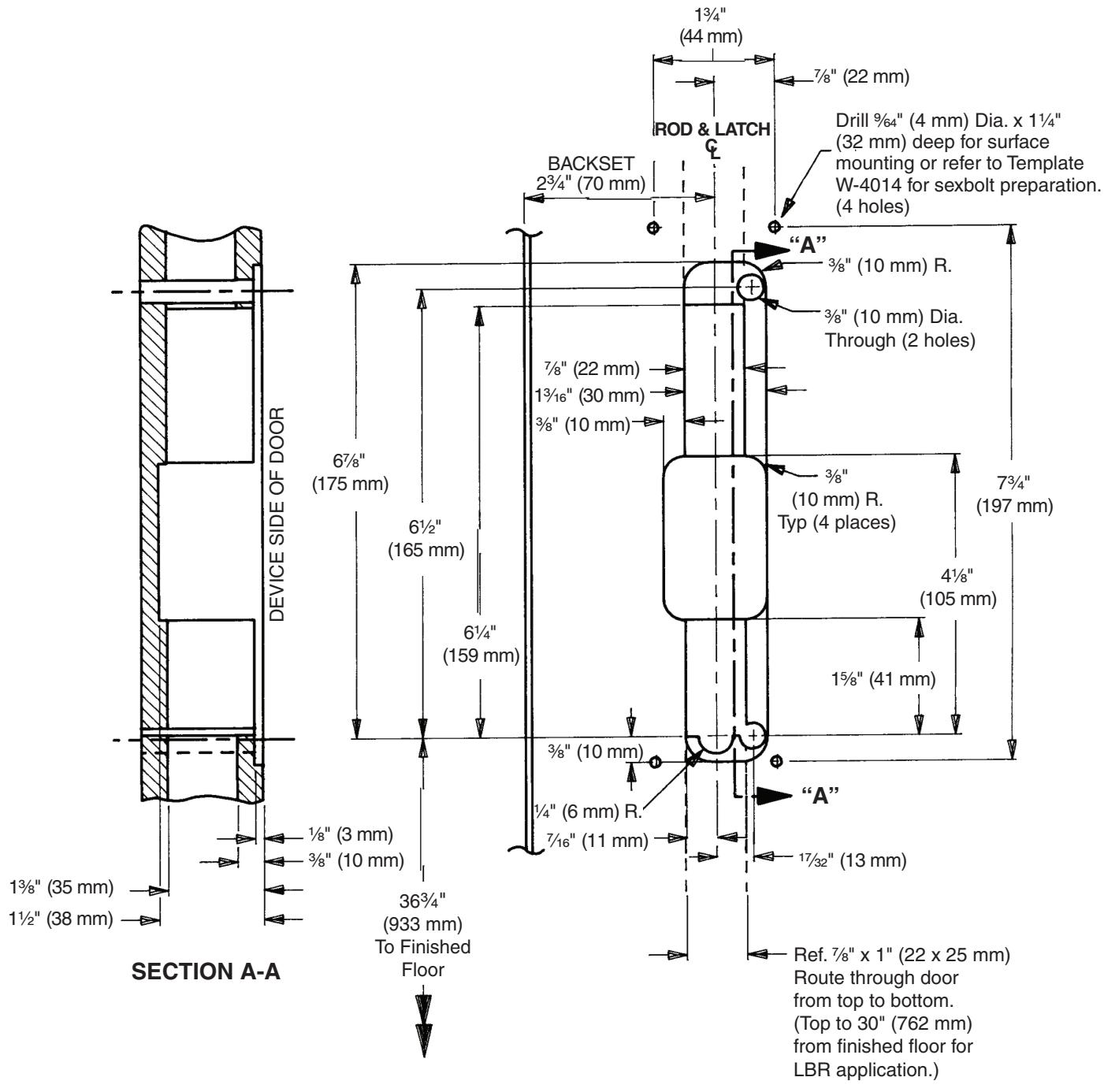

(F)XX-C Concealed Vertical Centerslide Preparation

Panic Device - Wood Door, LHR Shown, RHR Opposite

Device Ref. $\varphi$ is 40½" (102.2 cm) from the finished floor.
$\bullet$ Crossbar is 37½" (94.6 cm) from the finished floor.
For top latch preparation, refer to Template W-1482.
For bottom bolt preparation, refer to Template W-1483.
For Less Bottom Rod (LBR) application omit bottom bolt preparation. On fire rated applications, refer to Template W-5494 for auxiliary fire latch preparation.
For outside trim, see trim template for door preparation.

TEMPLATE

W-1481-b
