Falcon (F)XX-C Concealed Top Latch Preparation Wood Door Template 108807
Open the original PDF document

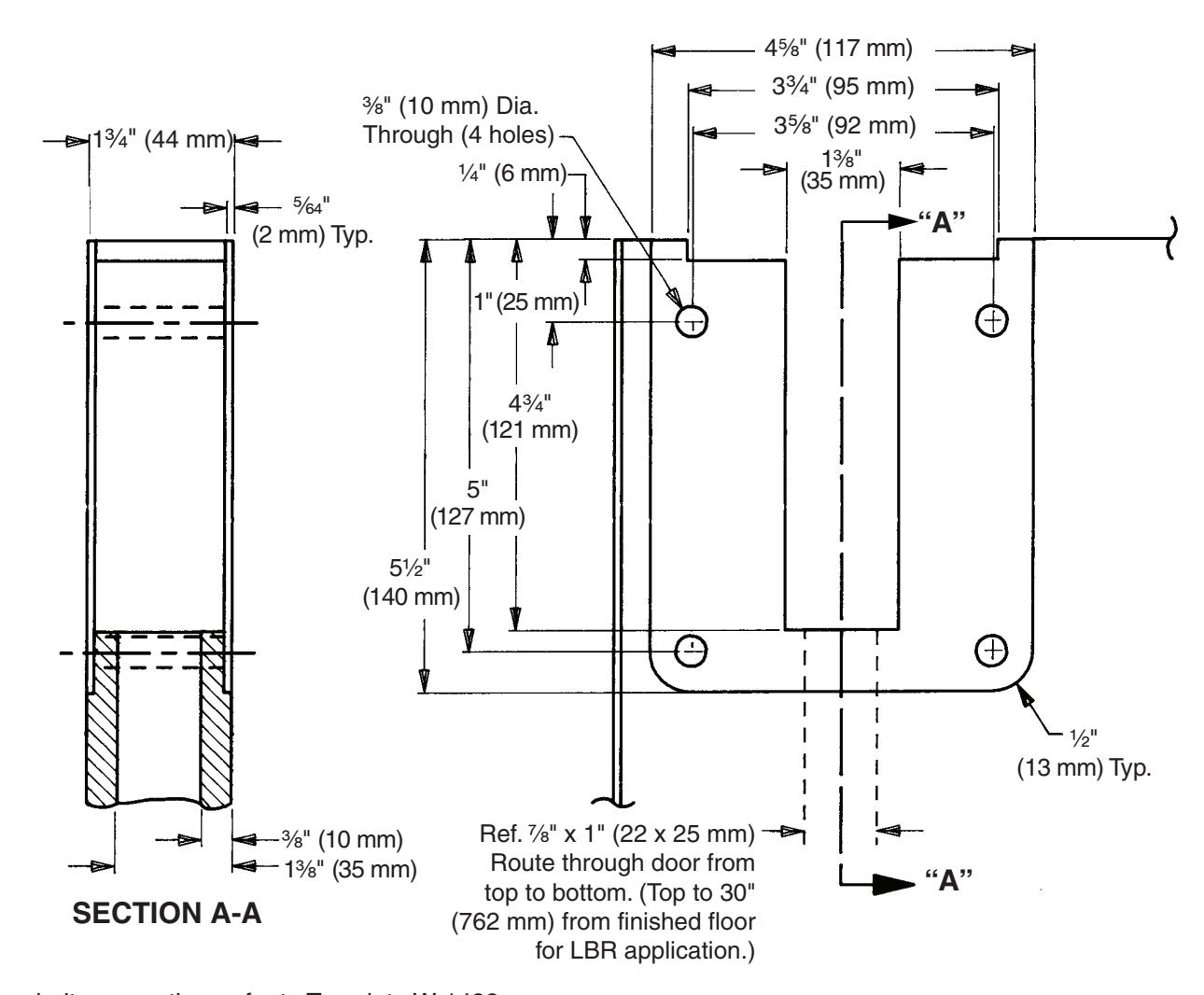

View PDF(F)XX-C Concealed Top Latch Preparation
Panic - Wood Door, LHR Shown, RHR Opposite

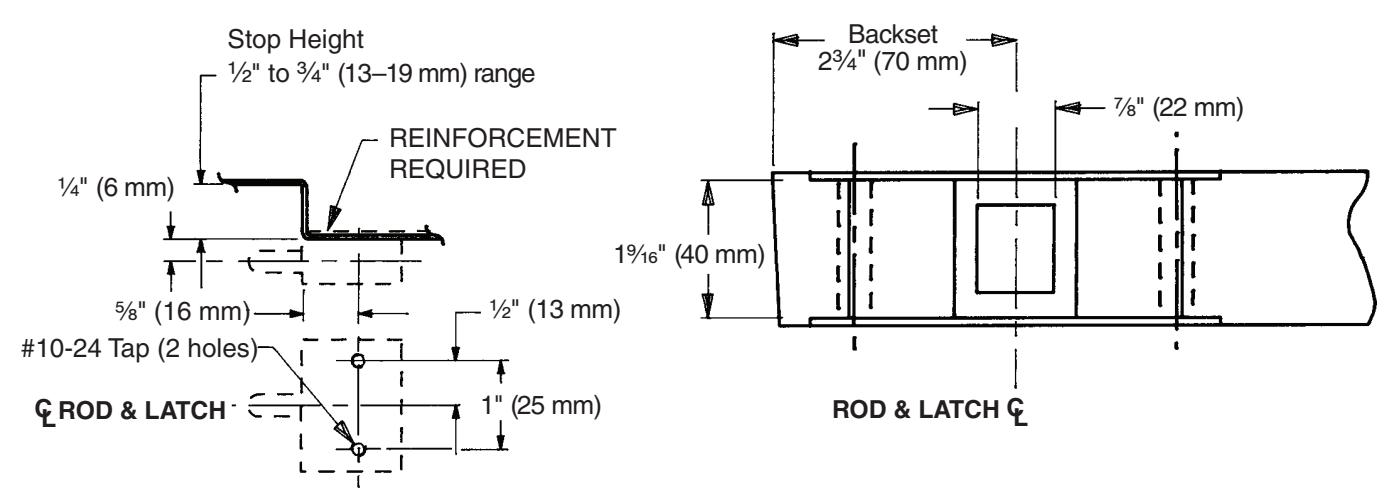

RELEASE PLUNGER DETAIL
- For bottom bolt preparation, refer to Template W-1483.
- For outside trim, see trim template for door preparation.
- For centerslide preparation, refer to Template W-1481.
- For Less Bottom Rod (LBR) application omit bottom bolt preparation. On fire rated applications, refer to Template W-5494 for auxiliary fire latch preparation.
TEMPLATE
W-1482-b
