Falcon (F)XX-C Concealed Botton Bolt Preparaton Wood Door Template 108808

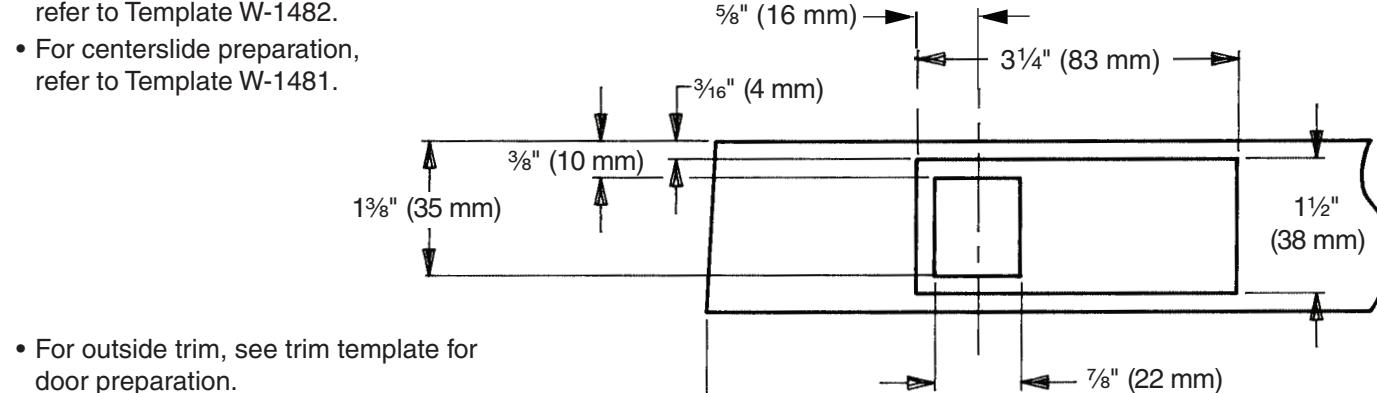

(F)XX-C Concealed Bottom Bolt Preparation

Panic - Wood Door, LHR Shown, RHR Opposite

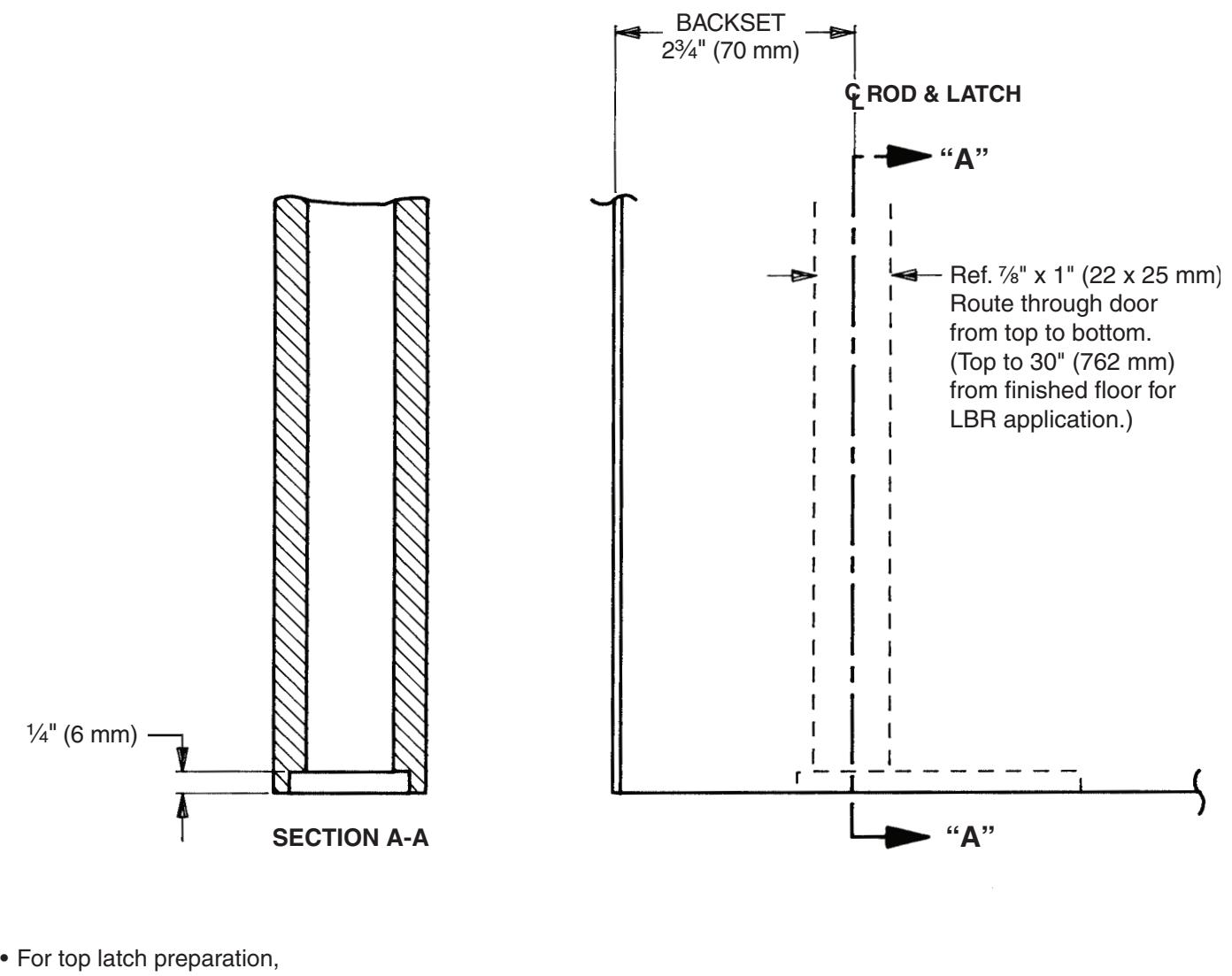

BACKSET 2³⁄₄" (70 mm)

door preparation.

• For Less Bottom Rod (LBR) application omit bottom bolt preparation. On fire rated applications, refer to Template W-5494 for auxiliary fire latch preparation.

TEMPLATE

CLROD & LATCH

W-1483-b
