Falcon (F)25-C Concealed Vertical Rod Centerslide Preparation Wood Door Template 108791
Open the original PDF document

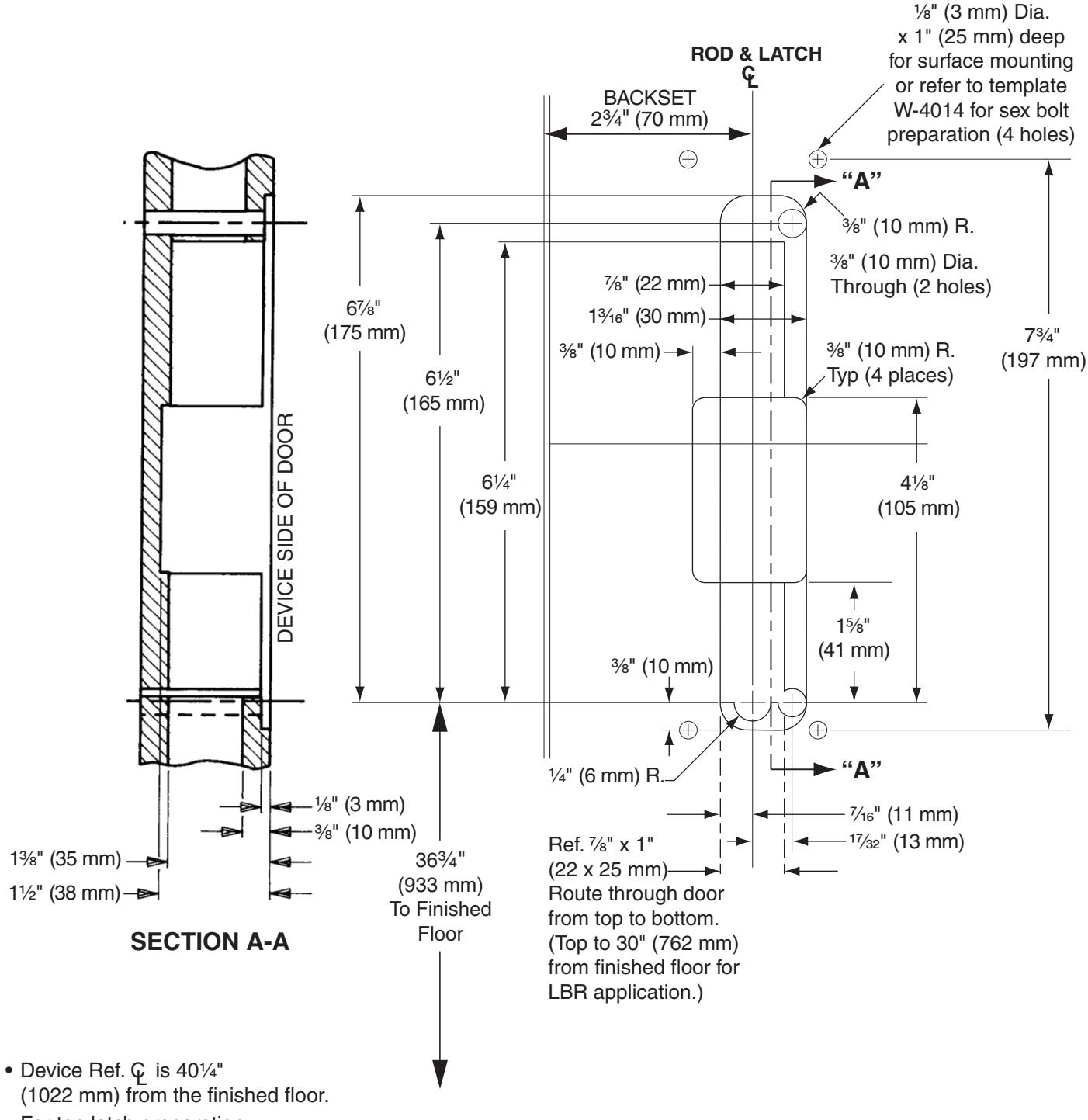

View PDF25-C Concealed Vertical Rod Centerslide Preparation
Panic Devices - Wood Door, LHR Shown, RHR Opposite
- For top latch preparation, refer to Template W-1282.
- For bottom bolt preparation, refer to Template W-1283.
- For Less Bottom Rod (LBR) application omit bottom bolt preparation.
- For outside trim, see trim template for door preparation.
TEMPLATE
W-1281-c
