Falcon (F)25-C Bottom Bolt Preparation Wood Door Template 108793
Open the original PDF document

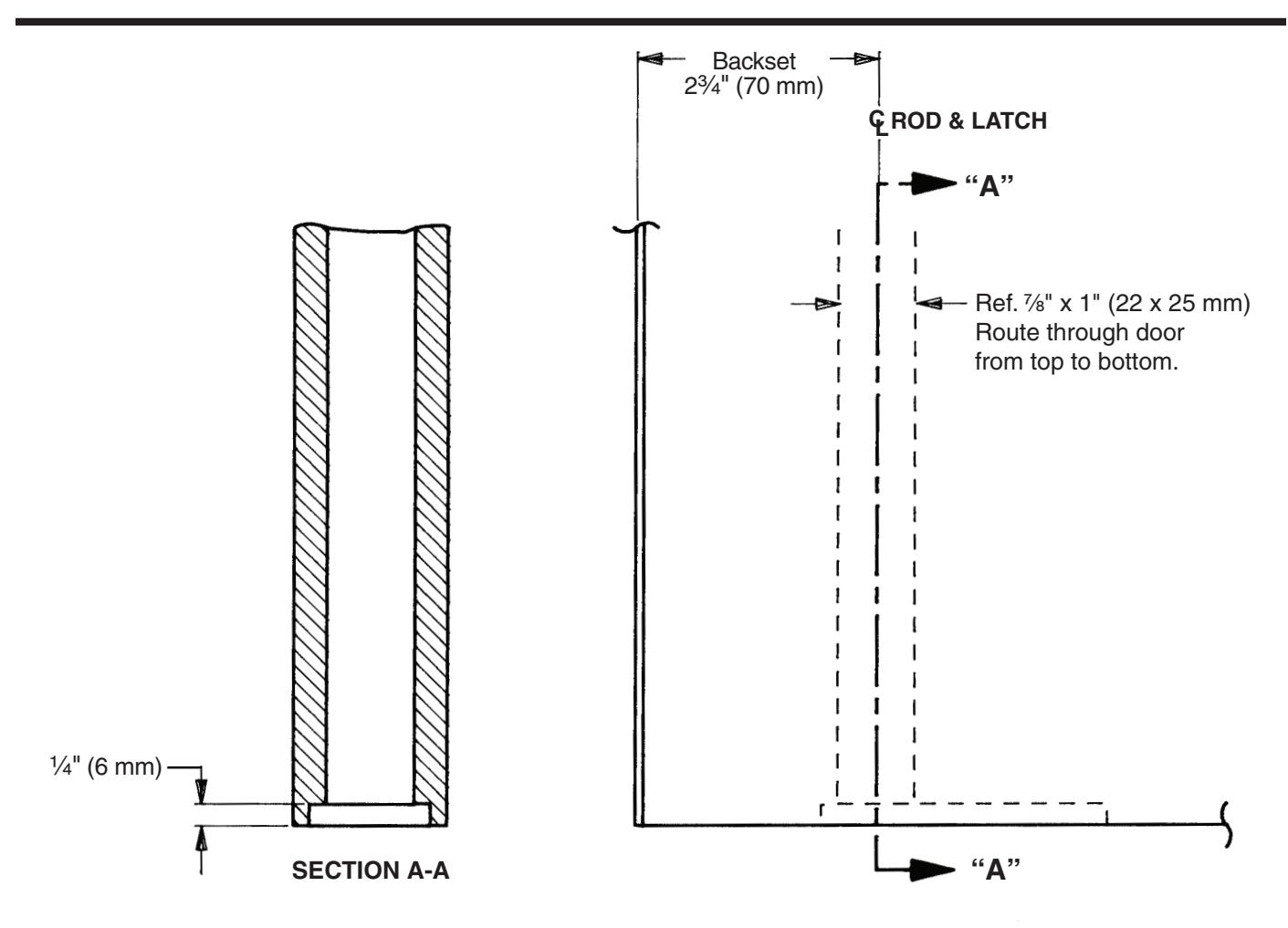

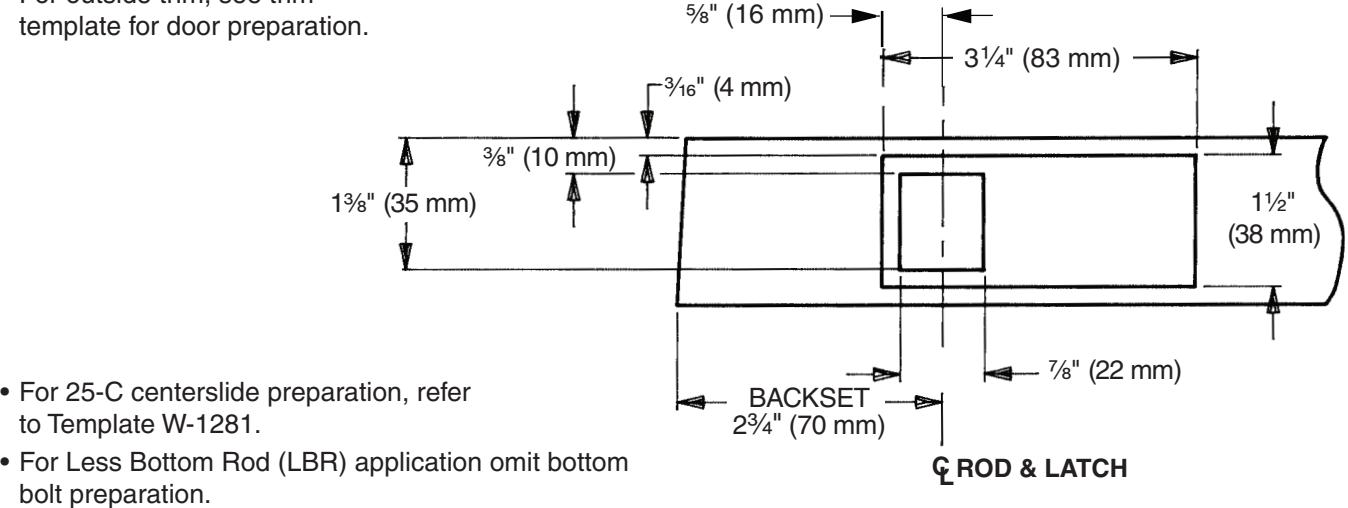

View PDF25-C Bottom Bolt Preparation
Panic Devices - Wood Door, LHR Shown, RHR Opposite
- For top latch preparation, refer to Template W-1282.
- For outside trim, see trim
TEMPLATE
W-1283-d
