Falcon (F)24-C Concealed Vertical Device Wood Door Template 108796
Open the original PDF document
View PDF(F)24-C Concealed Vertical Device

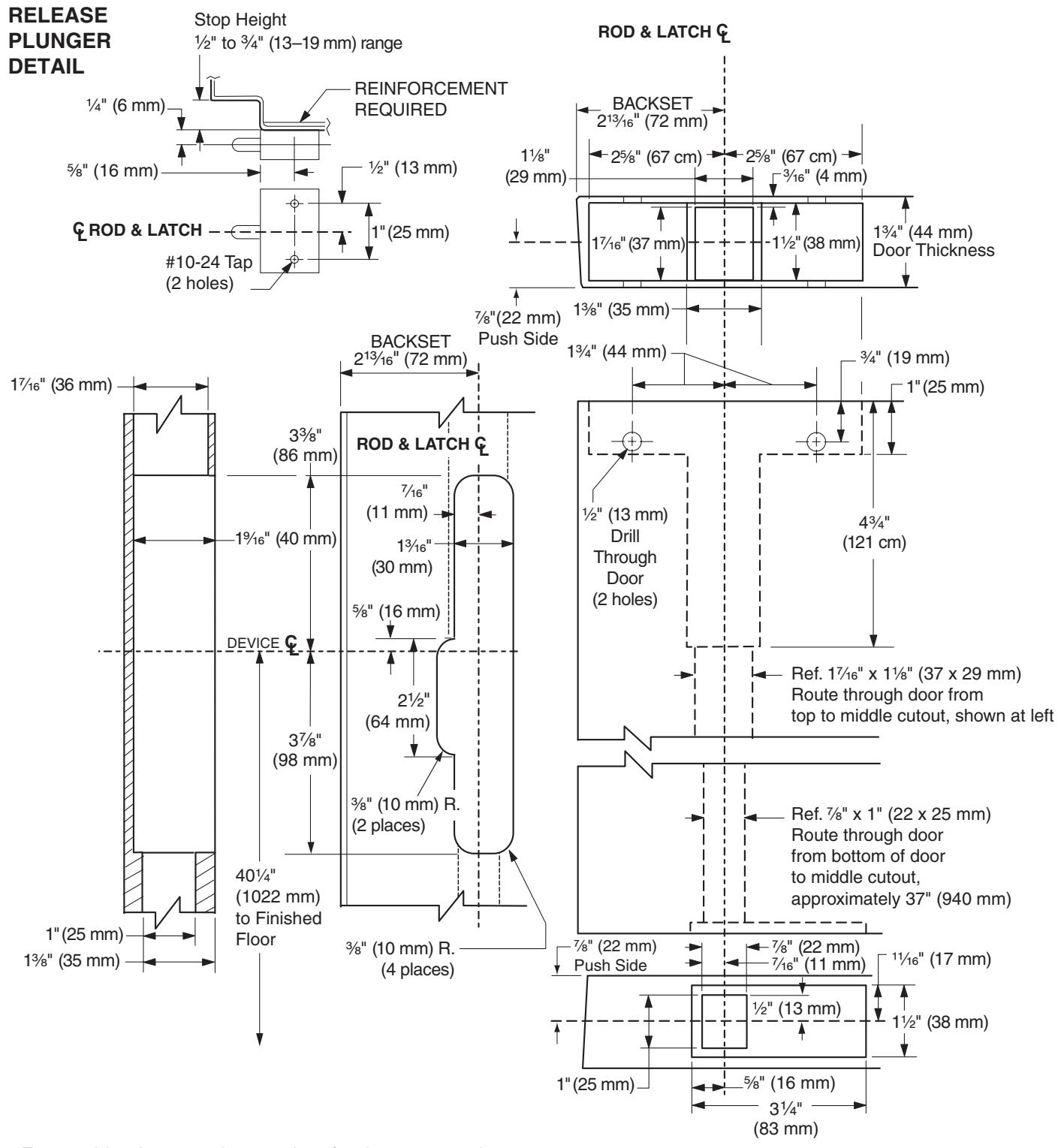

Concealed Vertical Rod Panic and Fire Exit Device With Metal Edge 5" Stile, Wood Door, LHR Shown, RHR Opposite
- For outside trim, see trim template for door preparation.
- See Template W-1352 for steel door wrap preparation.
- For Less Bottom Rod (LBR) application (20 minute rating only), refer to Template W-5494 for auxiliary fire latch preparation.
TEMPLATE
W-1342-c
