Falcon (F)24-C Bottom Bolt Preparation Wood Door Template 108800
Open the original PDF document
View PDF24-C Bottom Bolt Preparation

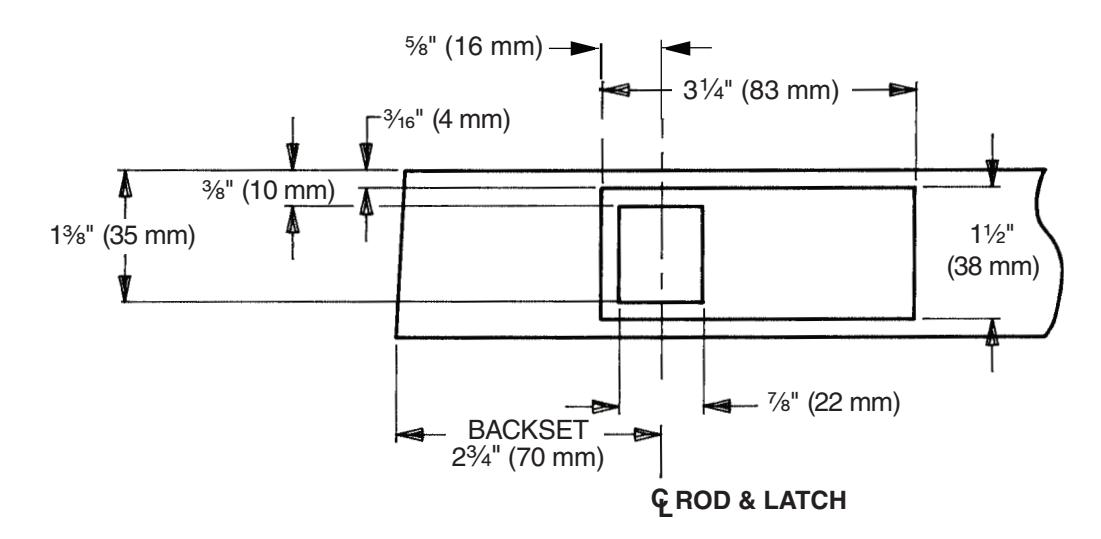

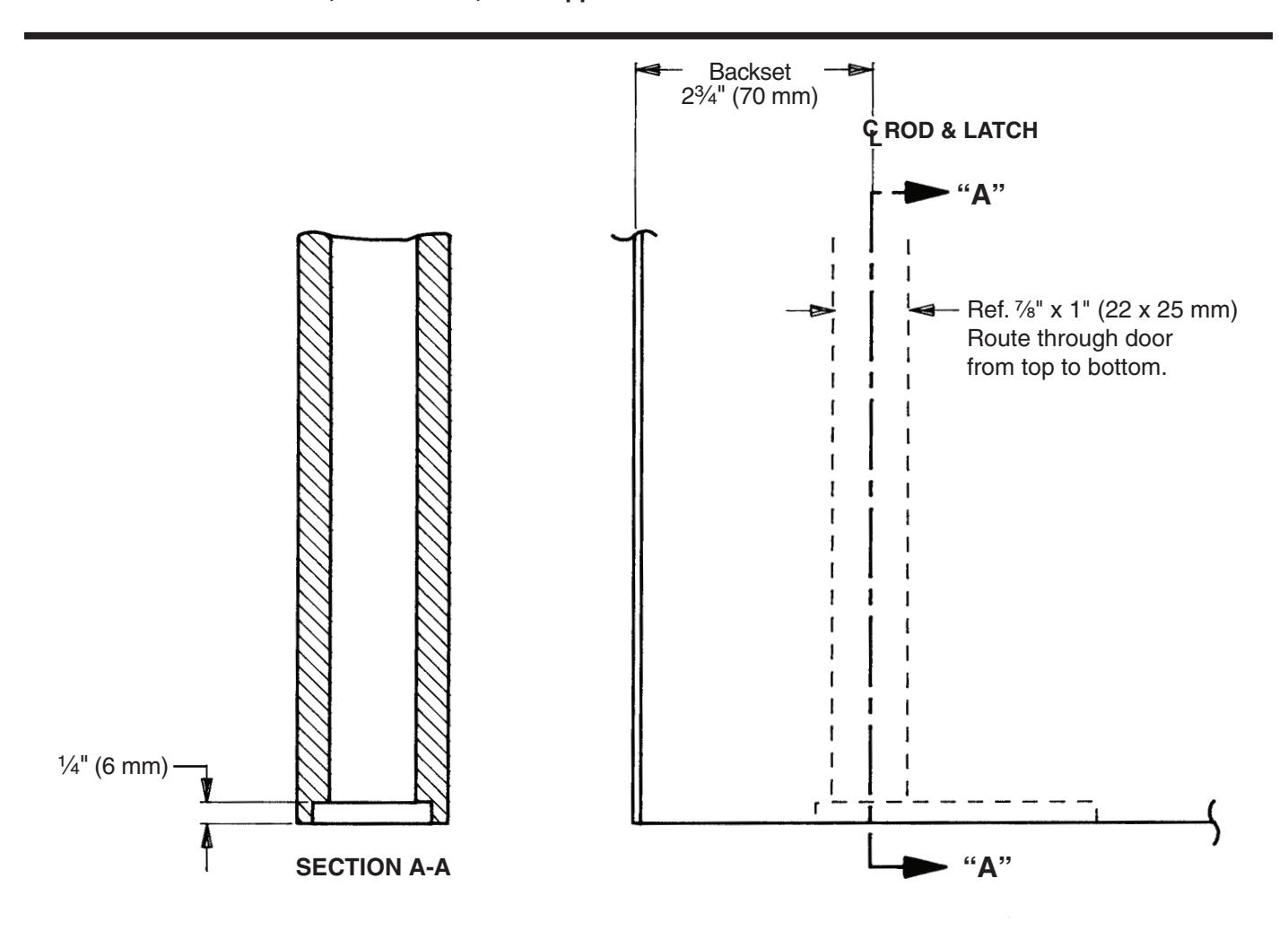

Panic Devices - Wood Door, LHR Shown, RHR Opposite
- For 24 centerslide preparation, refer to Template W-1380.
- For top latch preparation, refer to Template W-1382.
- For outside trim, see trim template for door preparation.
- For Less Bottom Rod (LBR) application omit bottom bolt preparation.
TEMPLATE
W-1383-d
