Falcon (F)19-V Surface Vertical Rod with FSA, FSE Feature Wood Door Template 108975

Open the original PDF document

View PDF

(F)19-V Surface Vertical Rod Device with FSA or FSE Feature

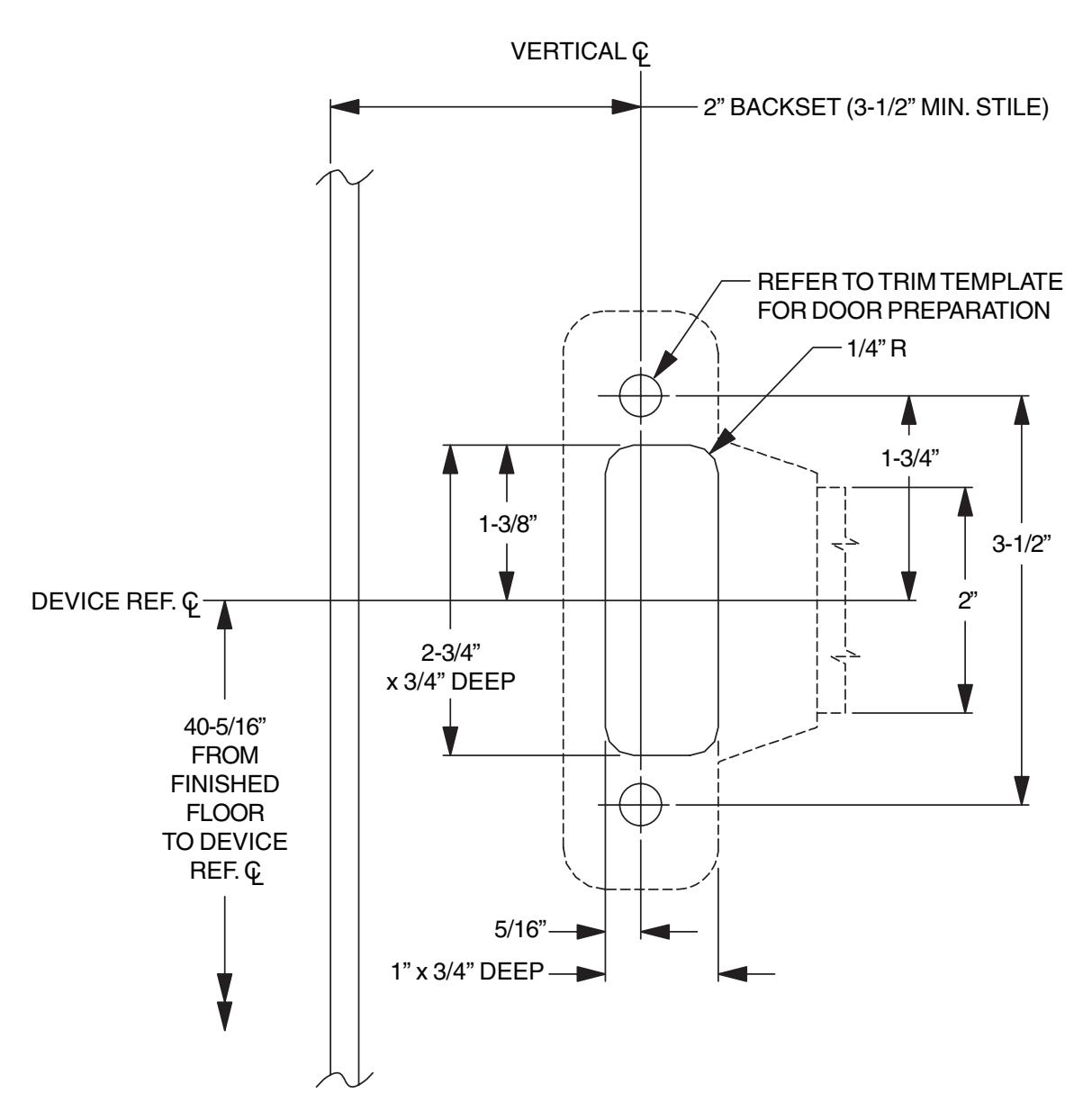

Knob, Lever and Thumbpiece Trim, Wood Door, LHR Shown, RHR Opposite

  • • For Less Bottom Rod (LBR) application, (20 minute rating), refer to template W-5494 for auxiliary fire latch and omit bottom latch preparation.
  • • Top and bottom latches/bolts to be prepared at time of device installation.

TEMPLATE

W-5105-a
