Falcon (F)19 Rim Device Wood Door Template 108773
Open the original PDF document
View PDF(F)19 Rim Device

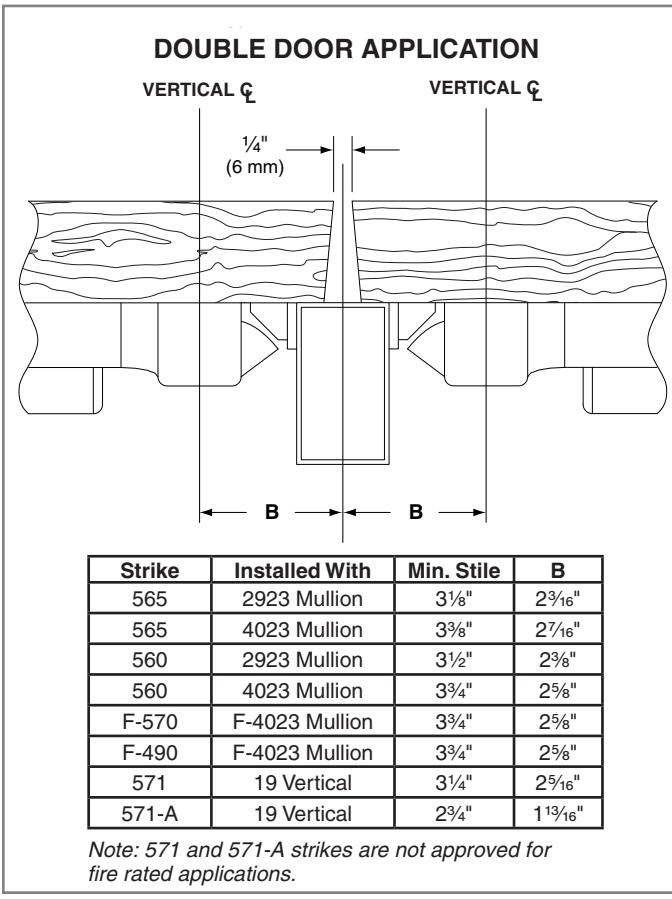

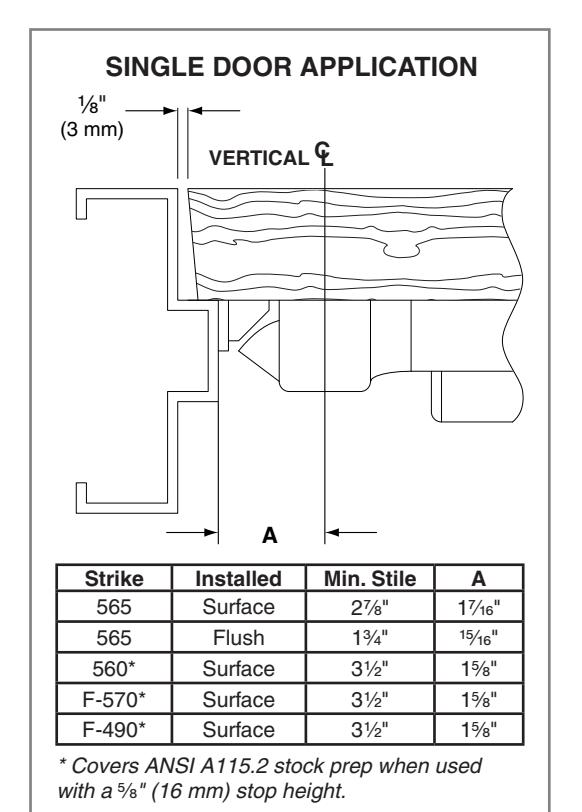

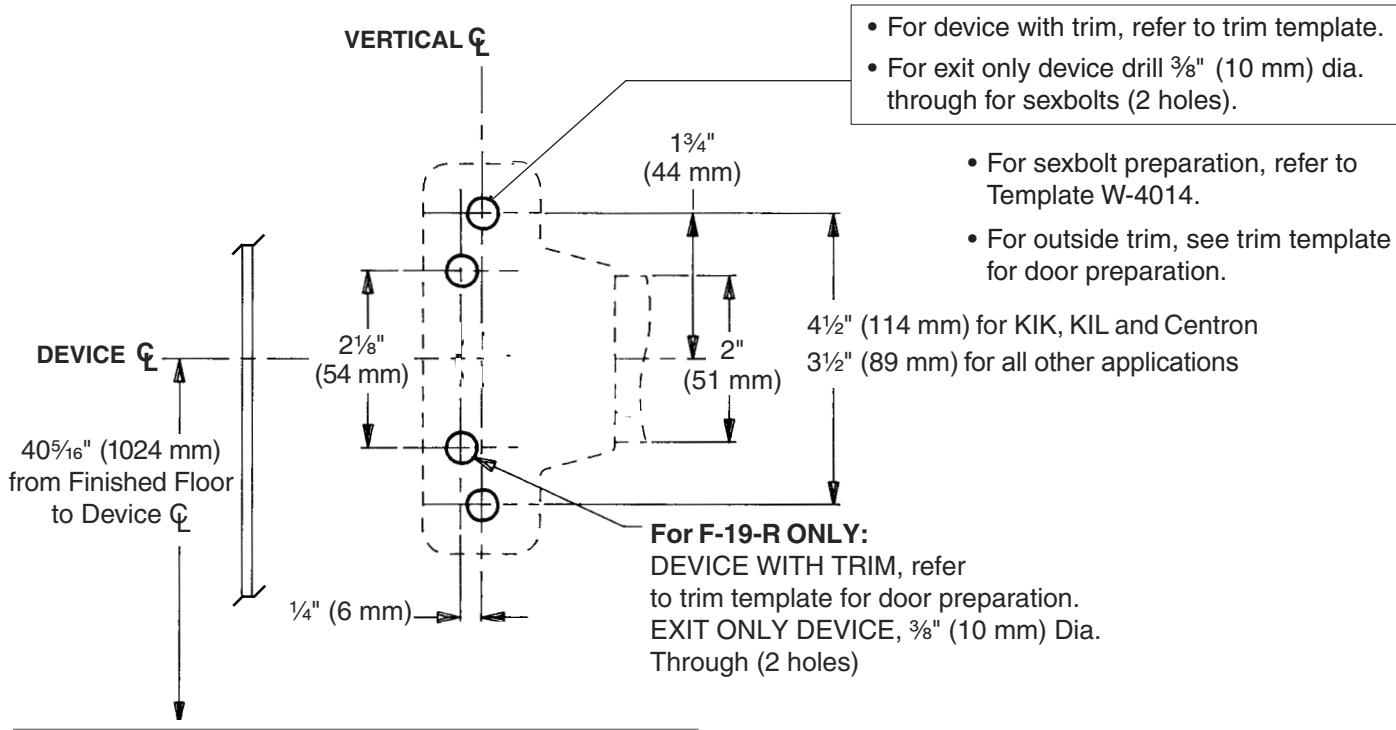

Rim Panic and Fire Exit Device, Wood Door, LHR Shown, RHR Opposite
TEMPLATE
W-1100-a
Open the original PDF document
View PDFRim Panic and Fire Exit Device, Wood Door, LHR Shown, RHR Opposite
TEMPLATE
W-1100-a
