Falcon (F)19-R Rim Device with FSA or FSE Feature Wood Door Template 108974
Open the original PDF document
View PDF(F)19-R Rim Device with FSA or FSE Feature

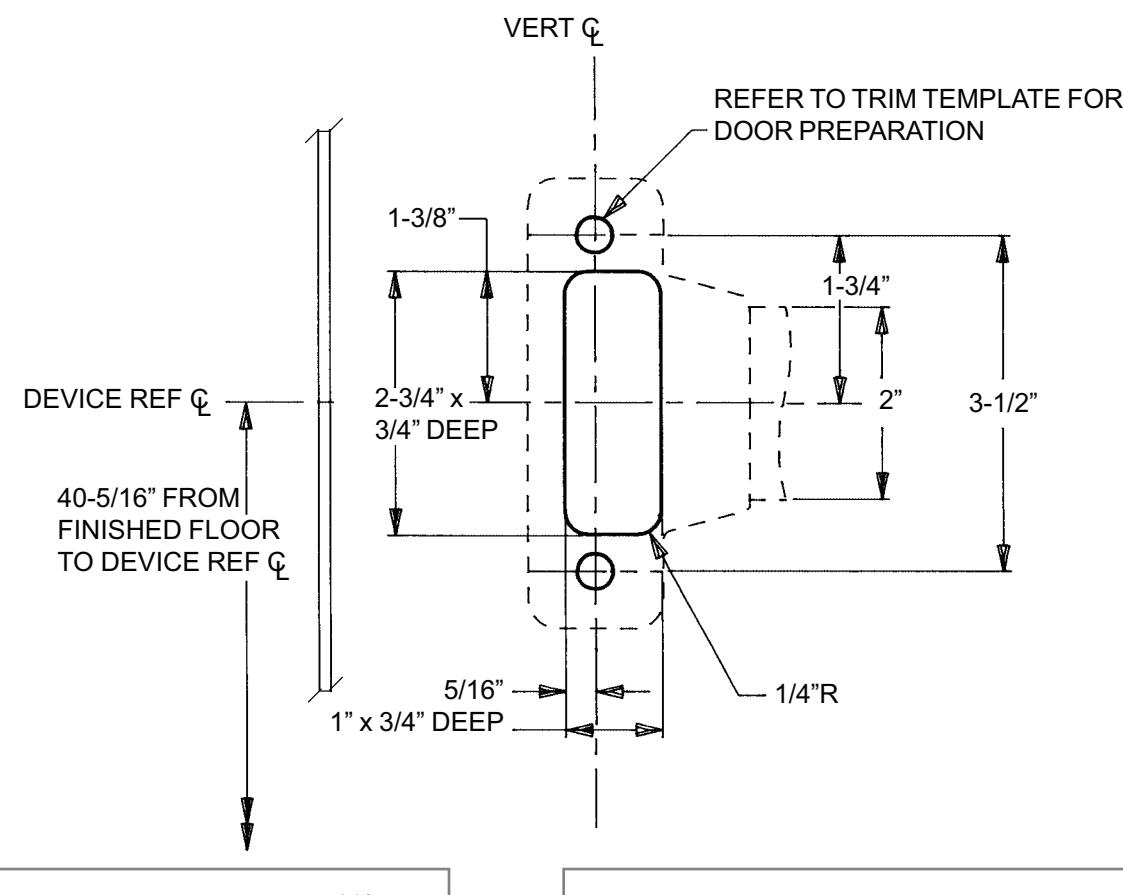

Knob, Lever and Thumbpiece Trim, Wood Door, LHR Shown, RHR Opposite
• For outside trim, see trim template for door preparation.

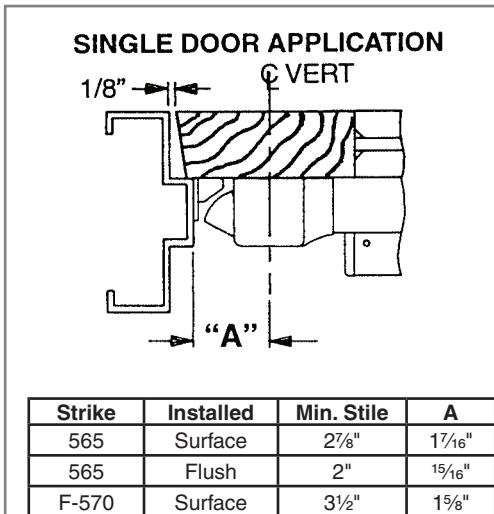

F-490 Surface 3Z\x" 1B\,"
• See Master Sheet #0100 for suggested reinforcing.

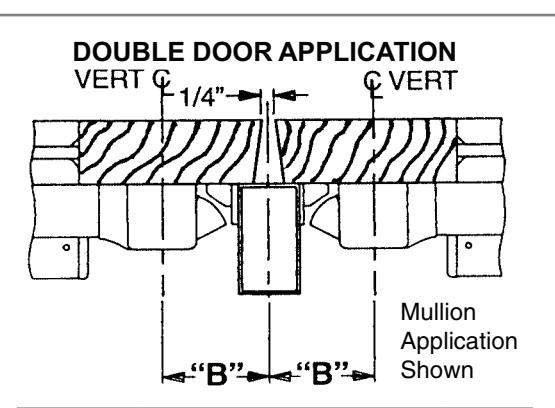

| Strike | Installed With | Min. Stile | B |
|---|---|---|---|
| 565 | 2923 Mullion | 4" | 2C\v" |
| 565 | 4023 Mullion | 4Z\v" | 3" |
| F-570 | F-4023 Mullion | 3C\v" | 2B" |
| F-490 | F-4023 Mullion | 3C\v" | 2B" |
| 571 | 19 Vertical | 3Z\v" | 2B\zn" |
| 571-A | 19 Vertical | 2C\v" | 1ZC\zn" |
Note: 571 and 571-A strikes are not approved for fire rated applications.
TEMPLATE
W-5100-a
