Falcon (F)19-R Rim Device with FSA, FSE Feature Metal Door Template 108609
Open the original PDF document
View PDF(F)19-R Rim Device with FSA or FSE Feature
Metal Door, LHR Shown, RHR Opposite

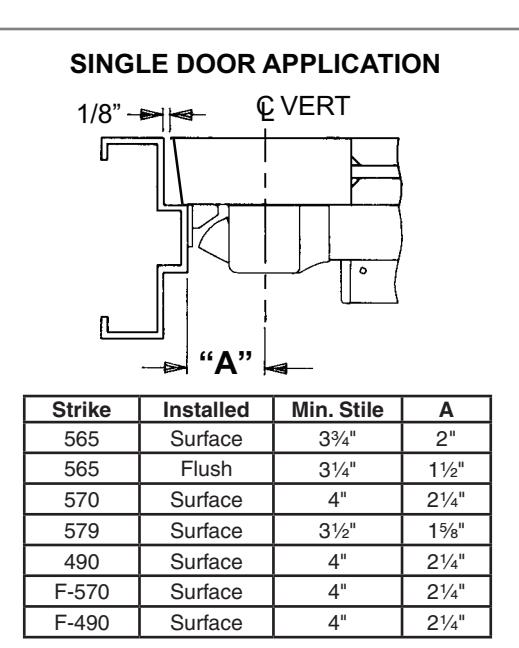

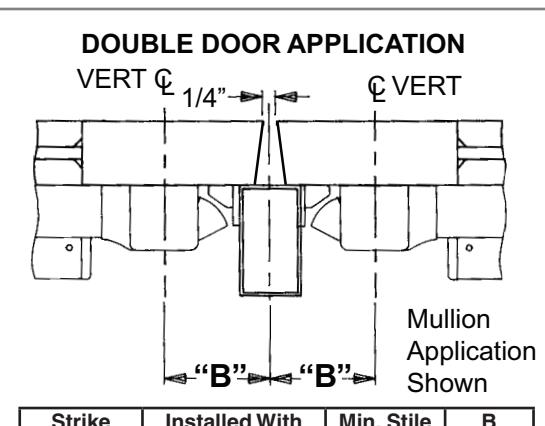

| Strike | Installed With | Min. Stile | В |
|---|---|---|---|
| 565 | 2923 Mullion | 4" | 2¾" |
| 565 | 4023 Mullion | 41/4" | 3" |
| 570 | 2923 Mullion | 41/4" | 3" |
| 570 | 4023 Mullion | 41/2" | 31/4" |
| 579 | 2923 Mullion | 35/8" | 2%" |
| 579 | 4023 Mullion | 37/8" | 25/8" |
| 490 | 2923 Mullion | 41/4" | 3" |
| 490 | 4023 Mullion | 41/2" | 31/4" |
| F-570 | F-4023 Mullion | 41/2" | 31/4" |
| F-490 | F-4023 Mullion | 41/2" | 31/4" |
| 571 | 18/XX Vertical | 41/8" | 27/8" |
| 571-A | 18/XX Vertical | 35/8" | 2%" |
Note: 571 and 571-A strikes are not approved for fire rated applications.

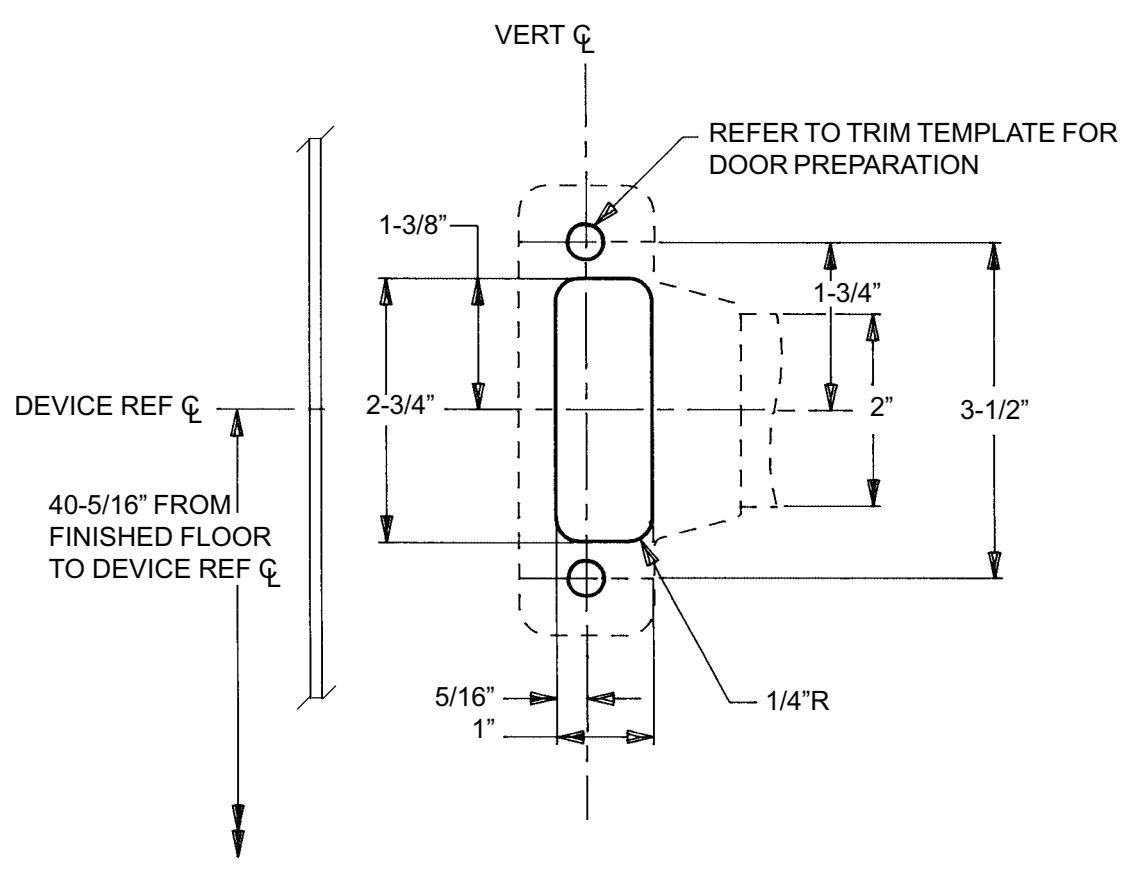

- For outside trim, see trim template for door preparation.
- See Master Sheet #0100 for suggested reinforcing.
TEMPLATE
T-5100-a
