Falcon (F)19-R Rim Device Metal Door Template 108495
Open the original PDF document
View PDF(F)19 Rim Device

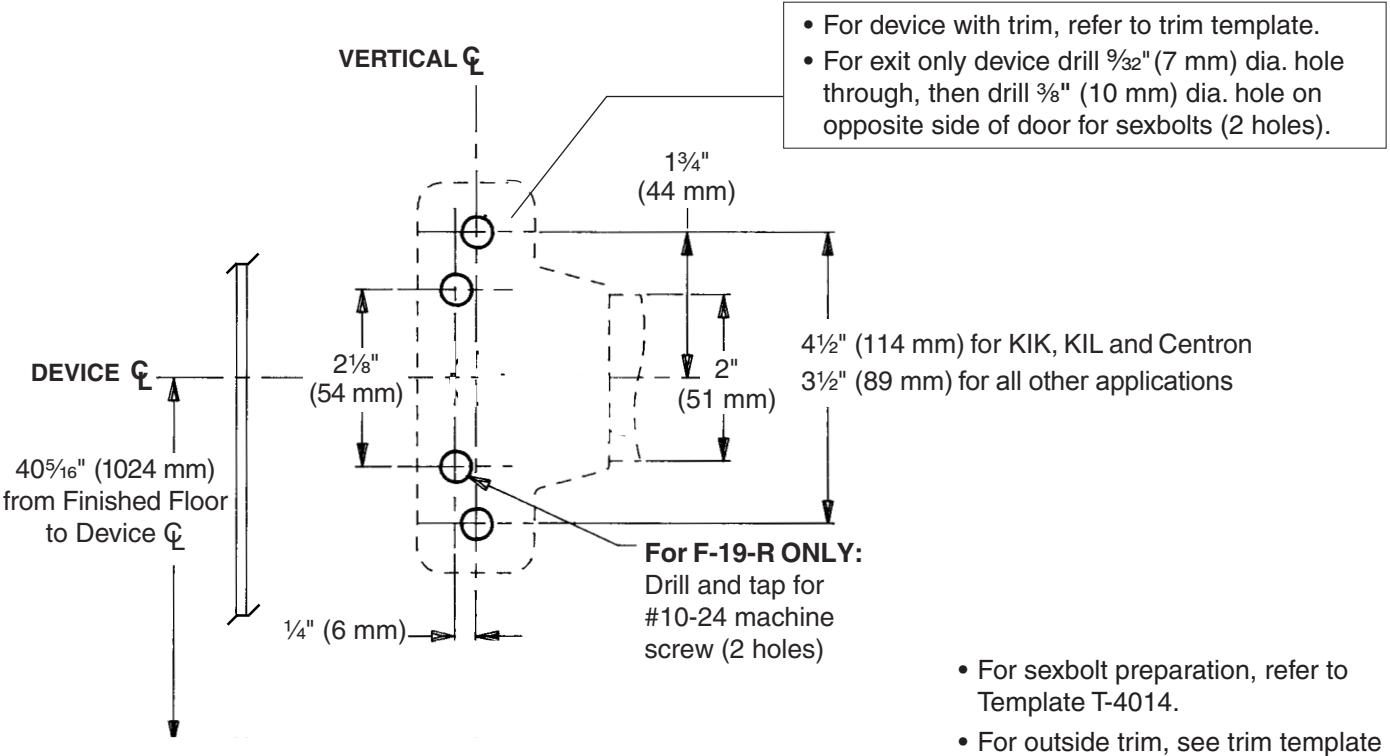

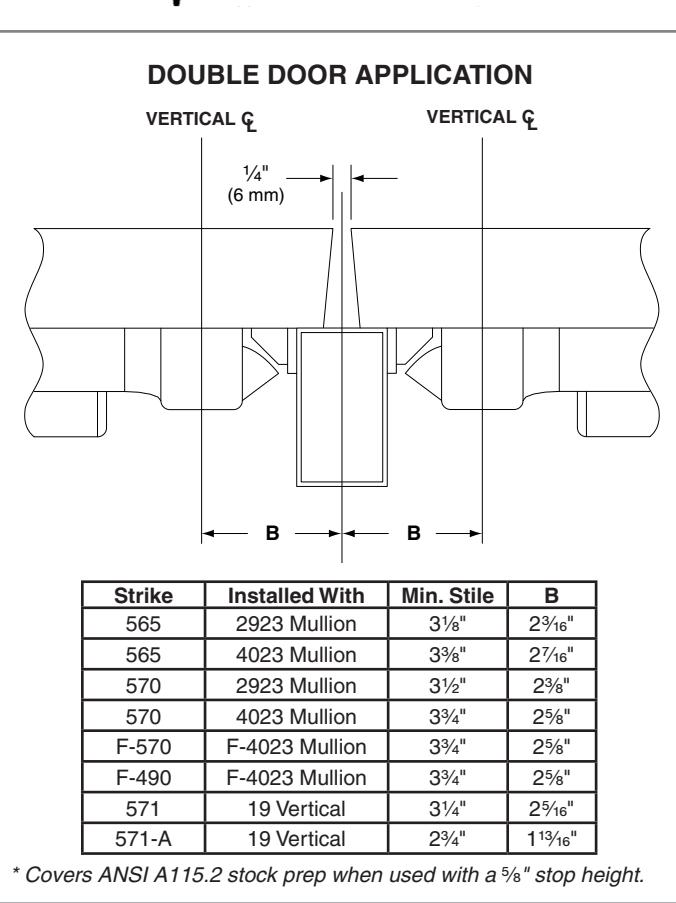

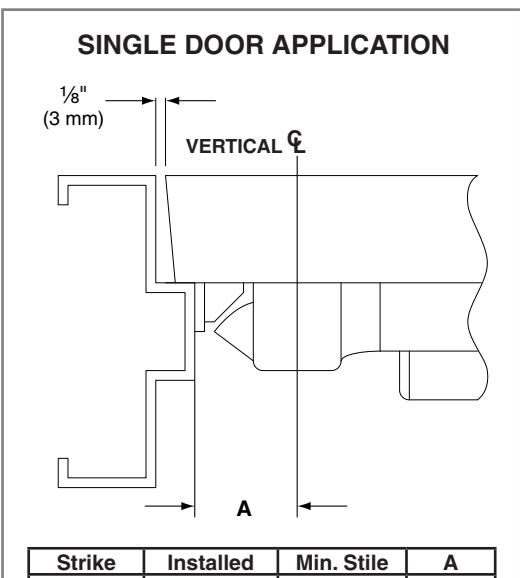

Rim Panic and Fire Exit Device, Metal Door, LHR Shown, RHR Opposite
for door preparation.
| Strike | Installed | Min. Stile | A |
|---|---|---|---|
| 565 | Surface | 2M" | 1M\zn" |
| 565 | Flush | 1C\v" | ZB\zn" |
| 570* | Surface | 3Z\x" | 1B" |
| F-570* | Surface | 3Z\x" | 1B" |
| F-490* | Surface | 3Z\x" | 1B" |
Note: 571 and 571-A strikes are not approved for fire rated applications.
TEMPLATE
T-1100-b
