Falcon F-XX-C Concealed Vertical Device Wood Door Template 108804
Open the original PDF document
View PDFF-XX-C Concealed Vertical Device

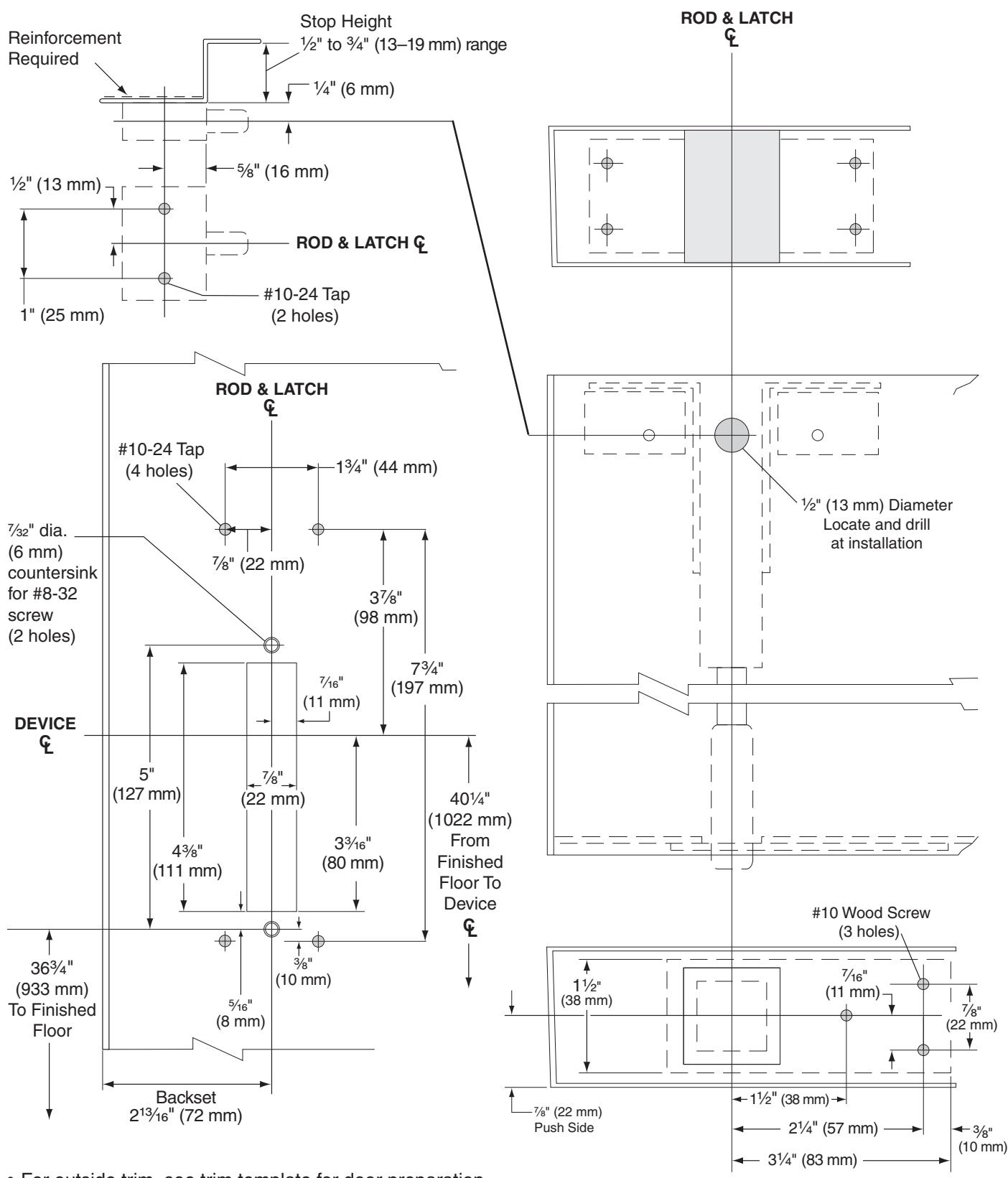

Concealed Vertical Rod Fire Exit Device (Full Steel Channel Stile Construction - 90 Minute/20 Minute LBR), Wood Door, LHR Shown, RHR Opposite
- For outside trim, see trim template for door preparation.
- For sexbolt preparation, refer to Template W-4014.
- For Less Bottom Rod (LBR) application (20 minute rating), refer to Template W-5494 for auxiliary fire latch preparation and omit bottom preparation.
TEMPLATE
W-1450-c
