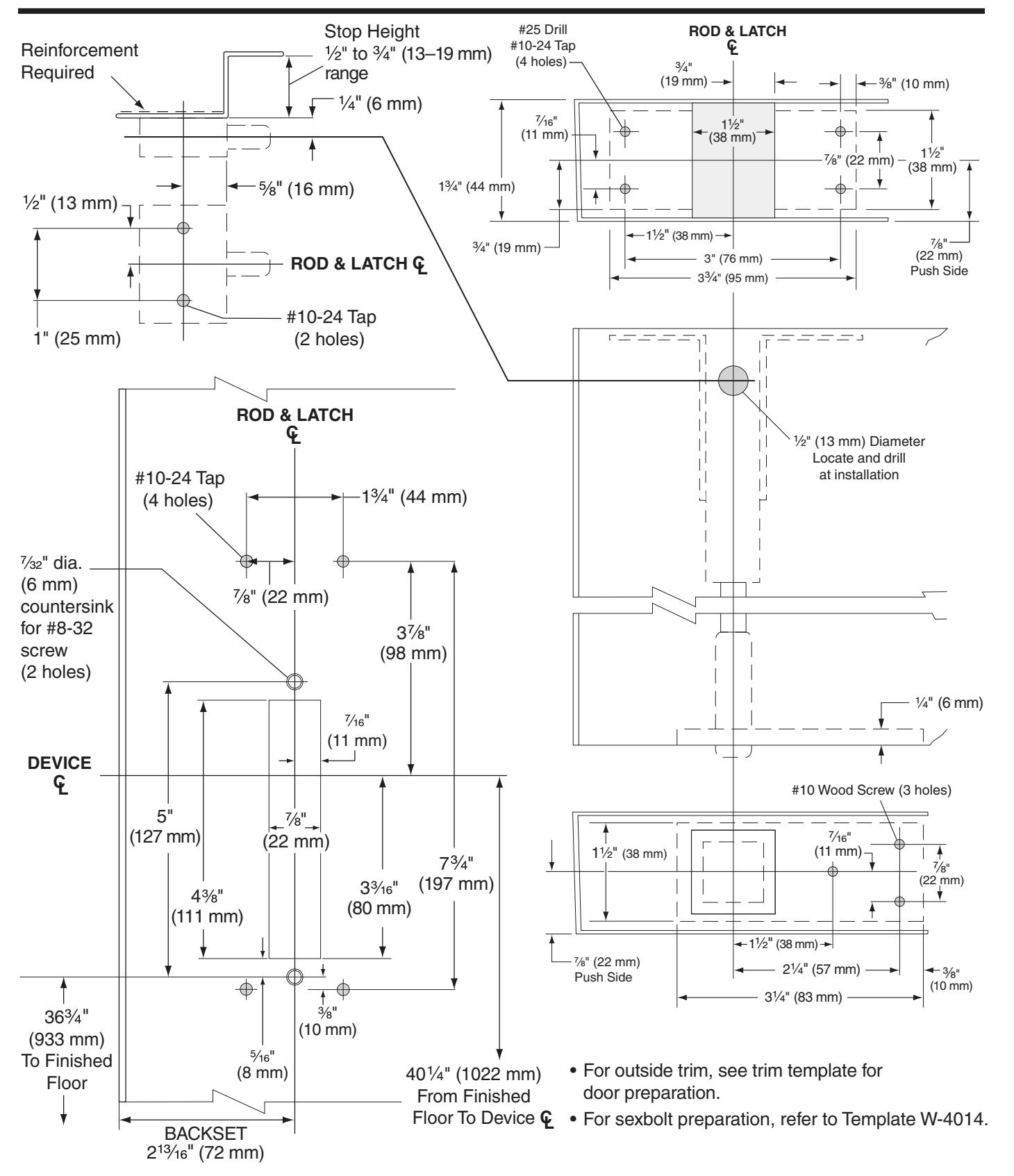

View PDFF-25-C-WDC Concealed Vertical Device
Full Steel Edge Stile Construction - Wood Door, LHR Shown, RHR Opposite
• For Less Bottom Rod (LBR) application, refer to template W-5494 for auxiliary fi re latch preparation, and omit bottom rod preparation.
TEMPLATE
W-1250-e
