View PDFF-25-C-WDC Concealed Vertical Device
Concealed Vertical Rod Panic and Fire Exit Device With Metal Wrap Edge 5" Stile, Wood Door LHR Shown, RHR Opposite
¹⁄₂" (13 mm)
1"(25 mm)
REQUIRED

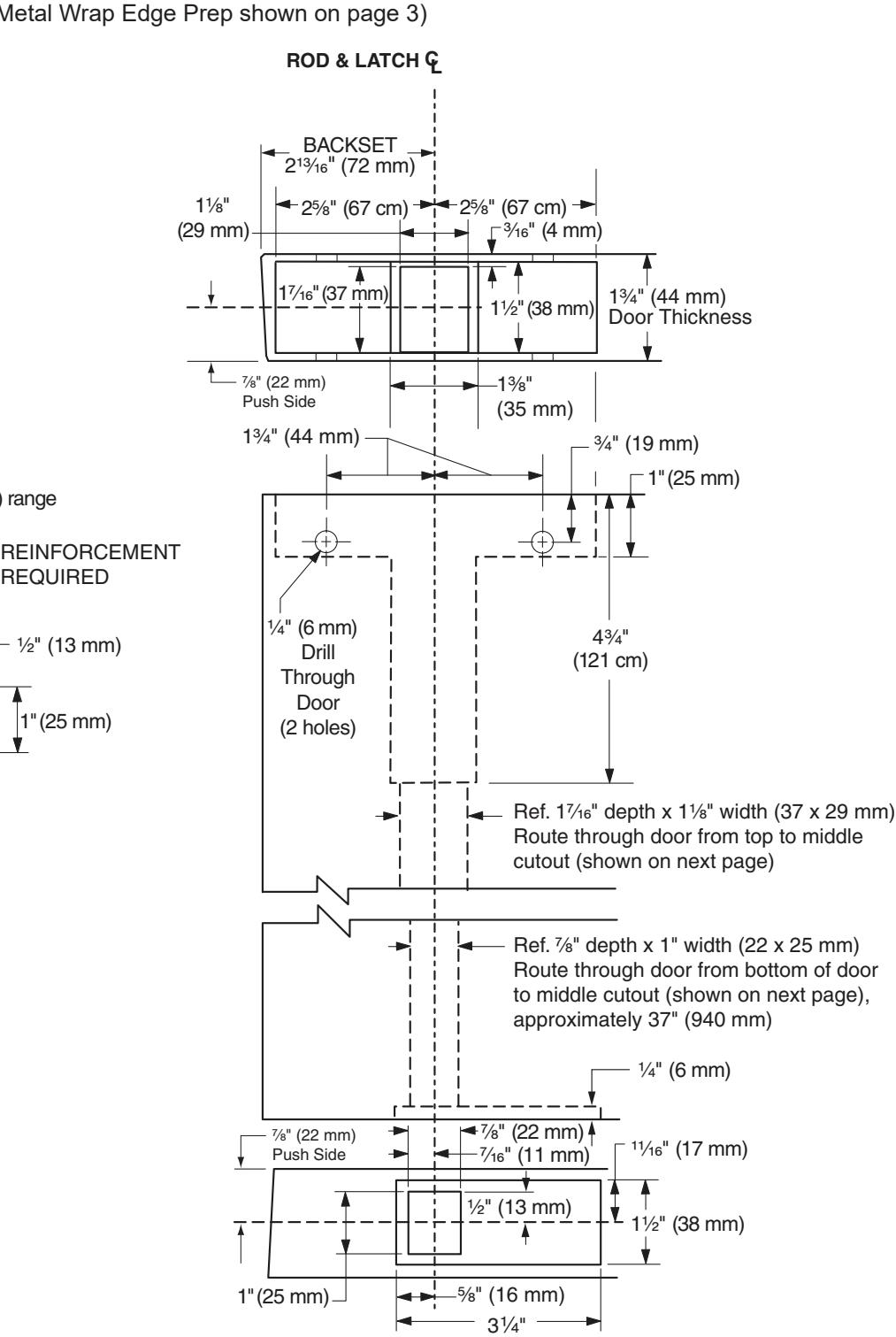

Wood Door Prep
Page 1 of 2
(Metal Wrap Edge Prep shown on page 3)
(83 mm)
- For outside trim, see trim template for door preparation.
- For Less Bottom Rod (LBR) application, refer to Template W-5494 for auxiliary fire latch preparation.
CLROD & LATCH
#10-24 Tap (2 holes)
Stop Height
¹⁄₂" to ³⁄₄" (13–19 mm) range
¹⁄₄" (6 mm)
⁵⁄₈" (16 mm)
RELEASE PLUNGER DETAIL
TEMPLATE
W-1242-e
F-25-C-WDC Concealed Vertical Device
Concealed Vertical Rod Panic and Fire Exit Device With Metal Wrap Edge 5" Stile, Wood Door LHR Shown, RHR Opposite

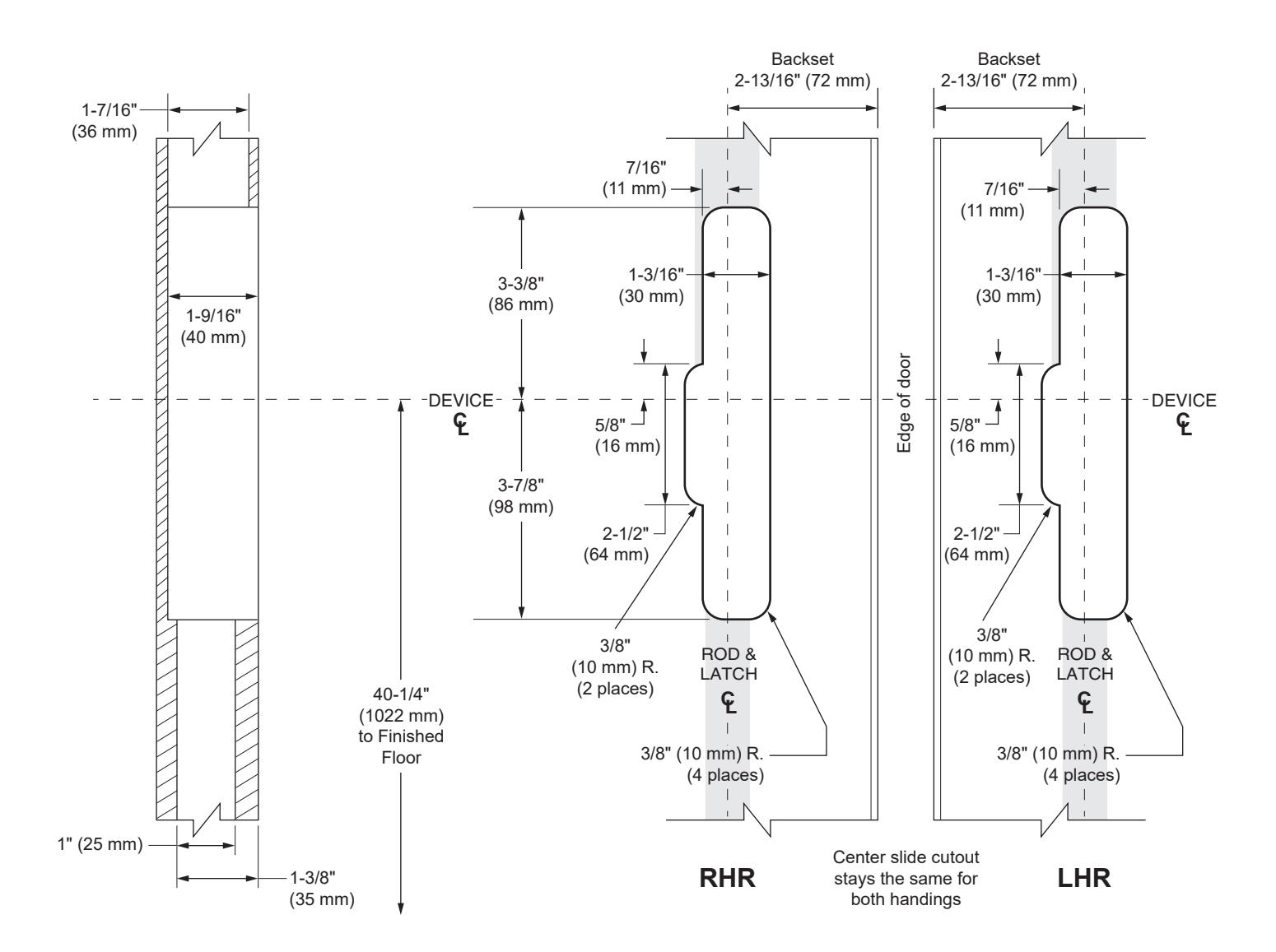

Wood Door Prep
Page 2 of 2
(Metal Wrap Edge Prep shown on page 3)
- For outside trim, see trim template for door preparation.
- For Less Bottom Rod (LBR) application, refer to Template W-5494 for auxiliary fire latch preparation.
TEMPLATE
W-1242-e
F-25-C-WDC Concealed Vertical Device
Concealed Vertical Rod Panic and Fire Exit Device With Metal Wrap Edge 5" Stile, Wood Door LHR Shown, RHR Opposite

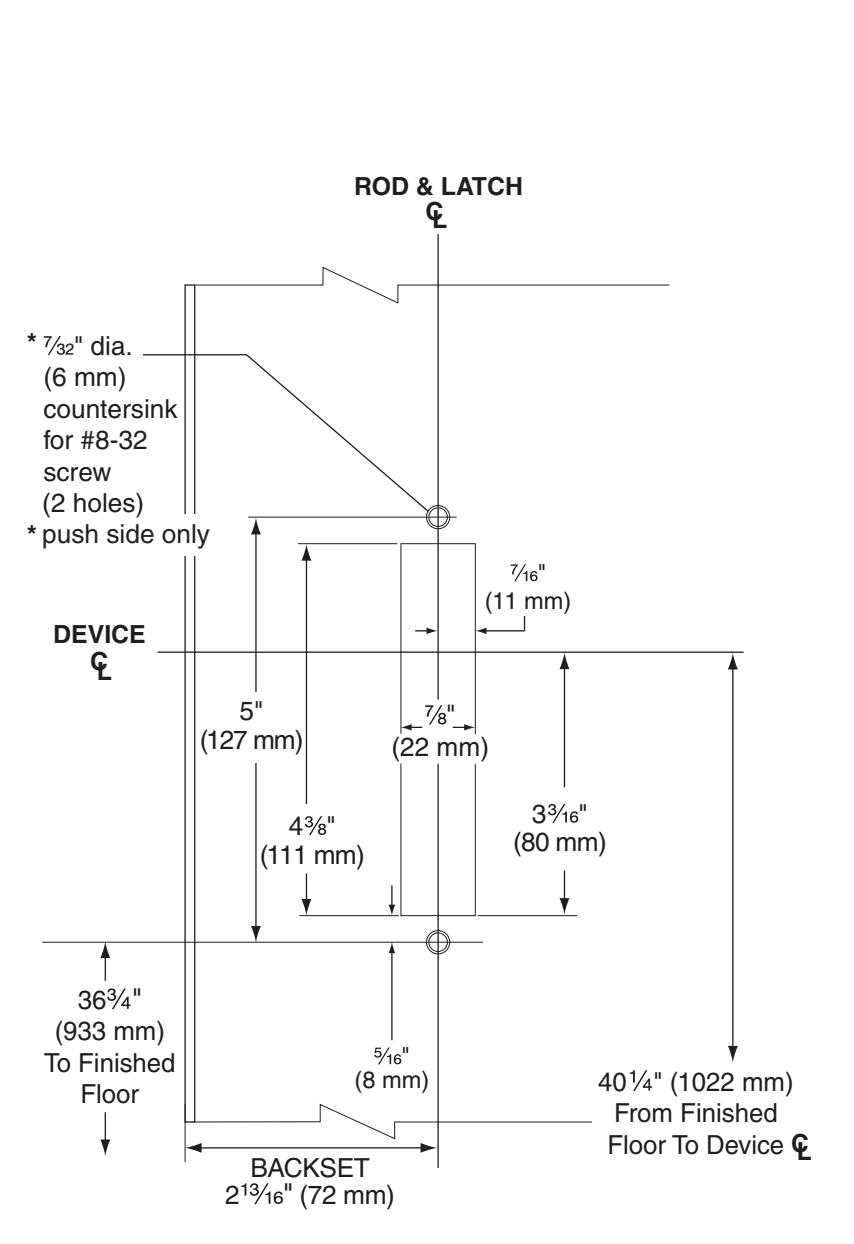

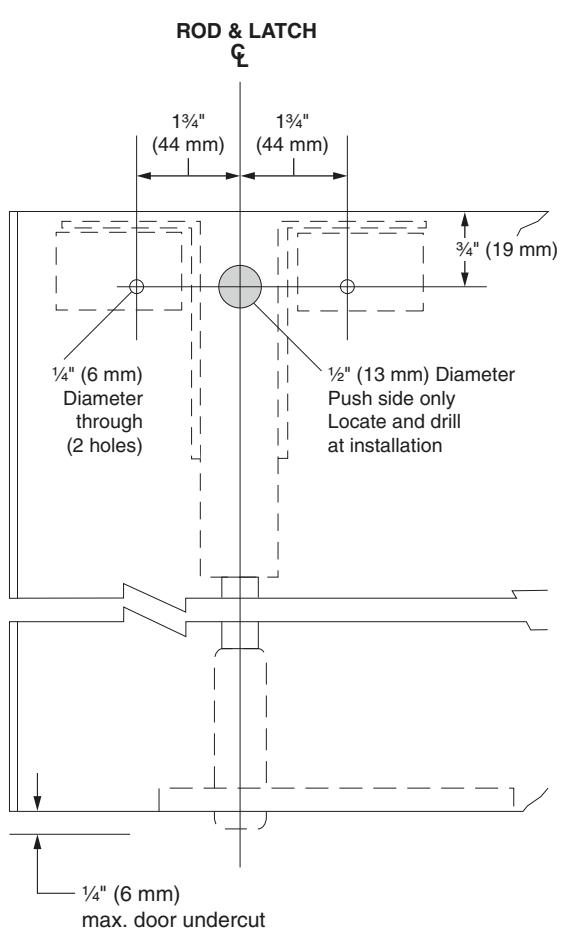

Metal Wrap Edge Prep
(Wood Door Prep shown on pages 1 and 2)
- For Less Bottom Rod (LBR) application, refer to template W-5494 for auxiliary fire latch preparation, and omit bottom rod preparation.
- For outside trim, see trim template for door preparation.
- For sexbolt preparation, refer to Template W-4014.
TEMPLATE
W-1242-e
