Falcon F-25-C Concealed Vertical Device Metal Door Template 108506
Open the original PDF document
View PDFF-25-C Concealed Vertical Device

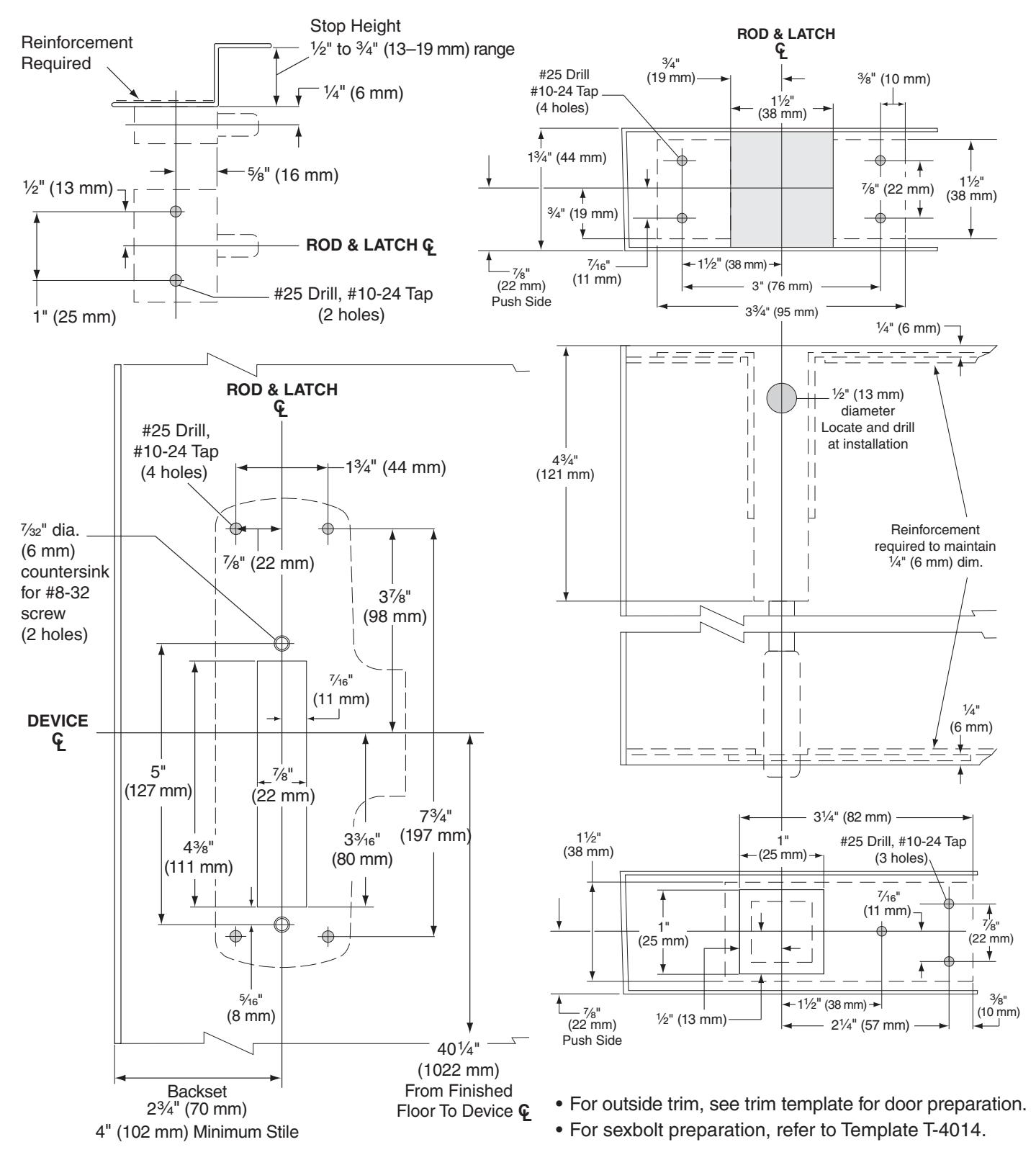

Concealed Vertical Rod FIre Exit Device, Metal Door, LHR Shown, RHR Opposite
- See Master Sheet #0100 for suggested reinforcing.
- For fire rated Less Bottom Rod (LBR) application omit bottom preparation.
- For fire rated Less Bottom Rod (LBR) application,refer to template T-5494 for auxiliary fire latch.
TEMPLATE
T-1230-c
