Falcon F-24-C Concealed Vertical Device Wood Door Template 108797

Open the original PDF document

View PDF

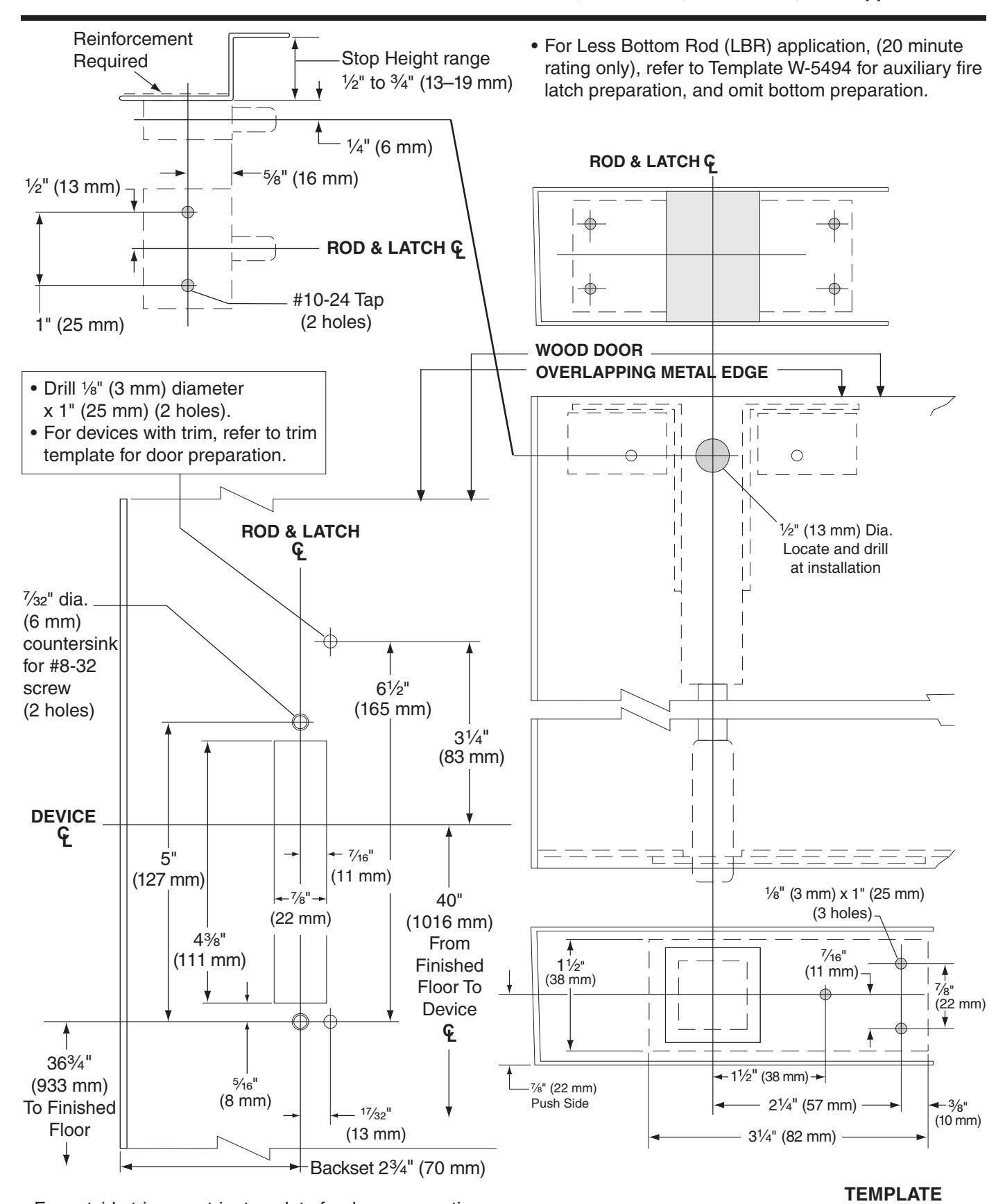

F-24-C Concealed Vertical Device

Full Steel Channel Stile Construction - 90 Minute/20Minute LBR, Wood Door, LHR Shown, RHR Opposite

  • For outside trim, see trim template for door preparation.
  • For sexbolt preparation, refer to Template W-4014.

W-1352-c
