D261/261F (UL)
FALCON
Q513-084
Thumbturn Deadbolt-Single Side Cerrojo de Pasador con Mariposa-Solo Lado Pêne Dormant avec Tourniquet-Seul Côté
Installation Instructions Instrucciones de instalación Notice d'installation

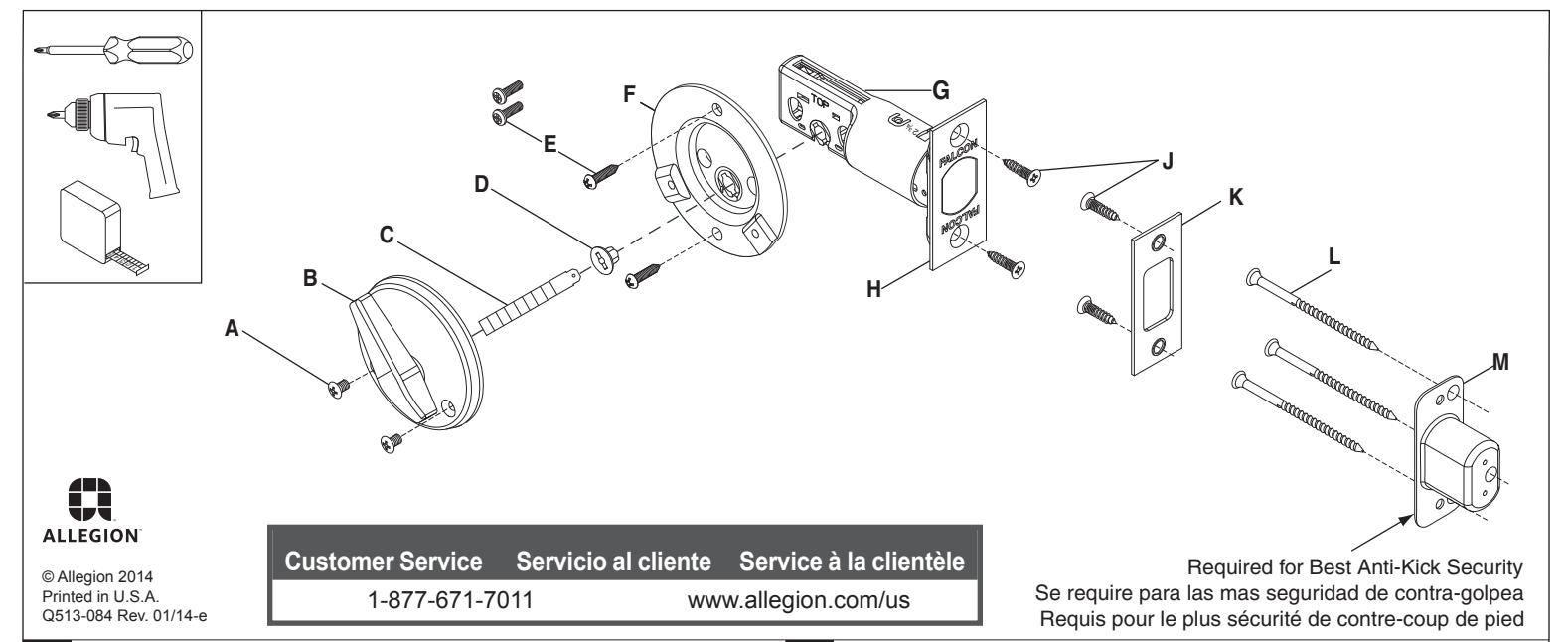

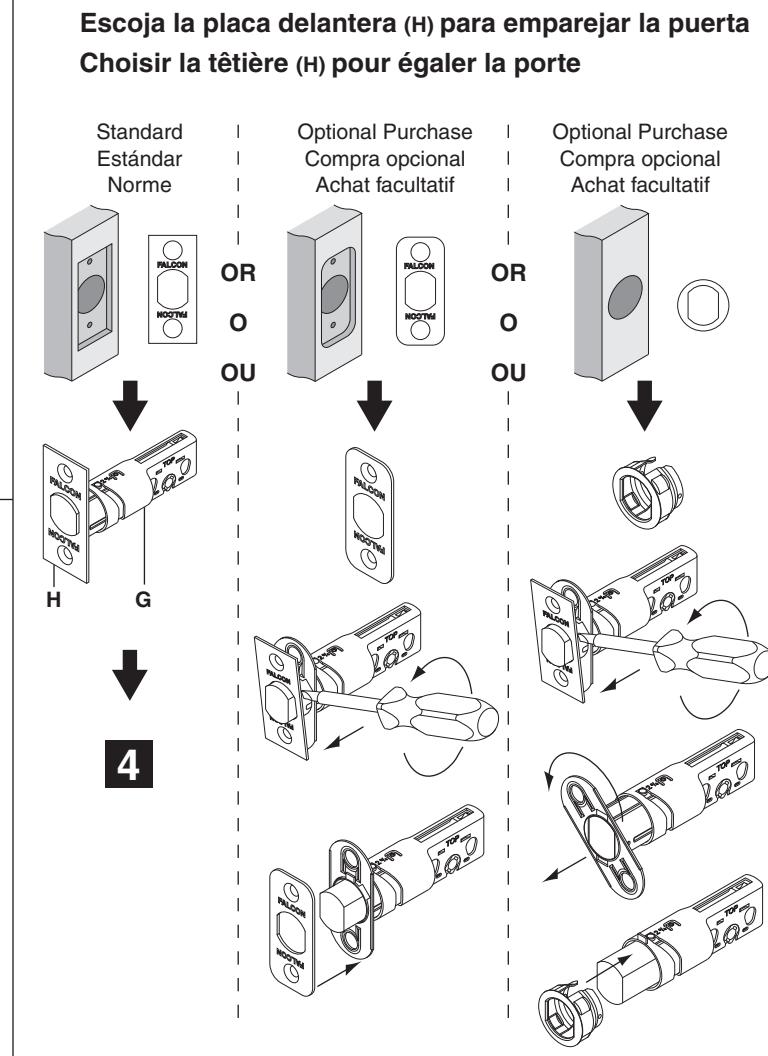

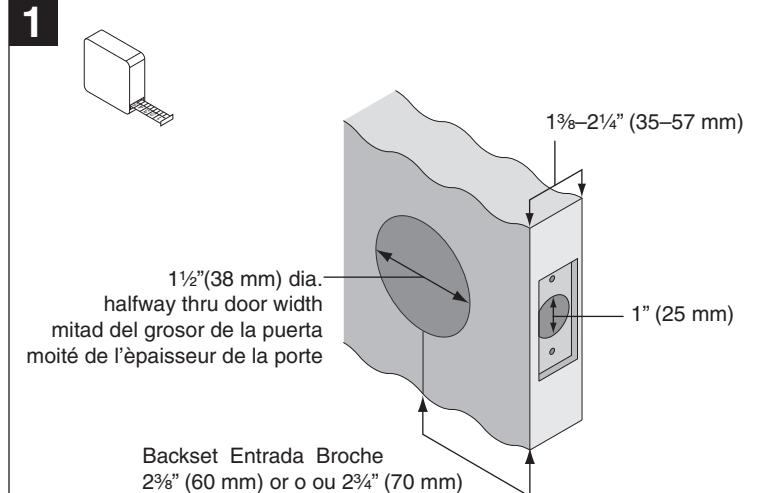

Choose Faceplate (H) to Match Door

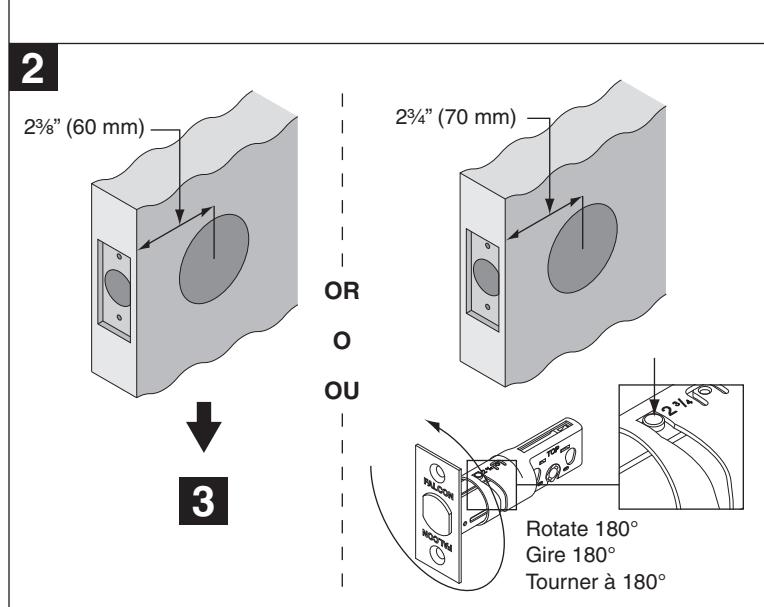

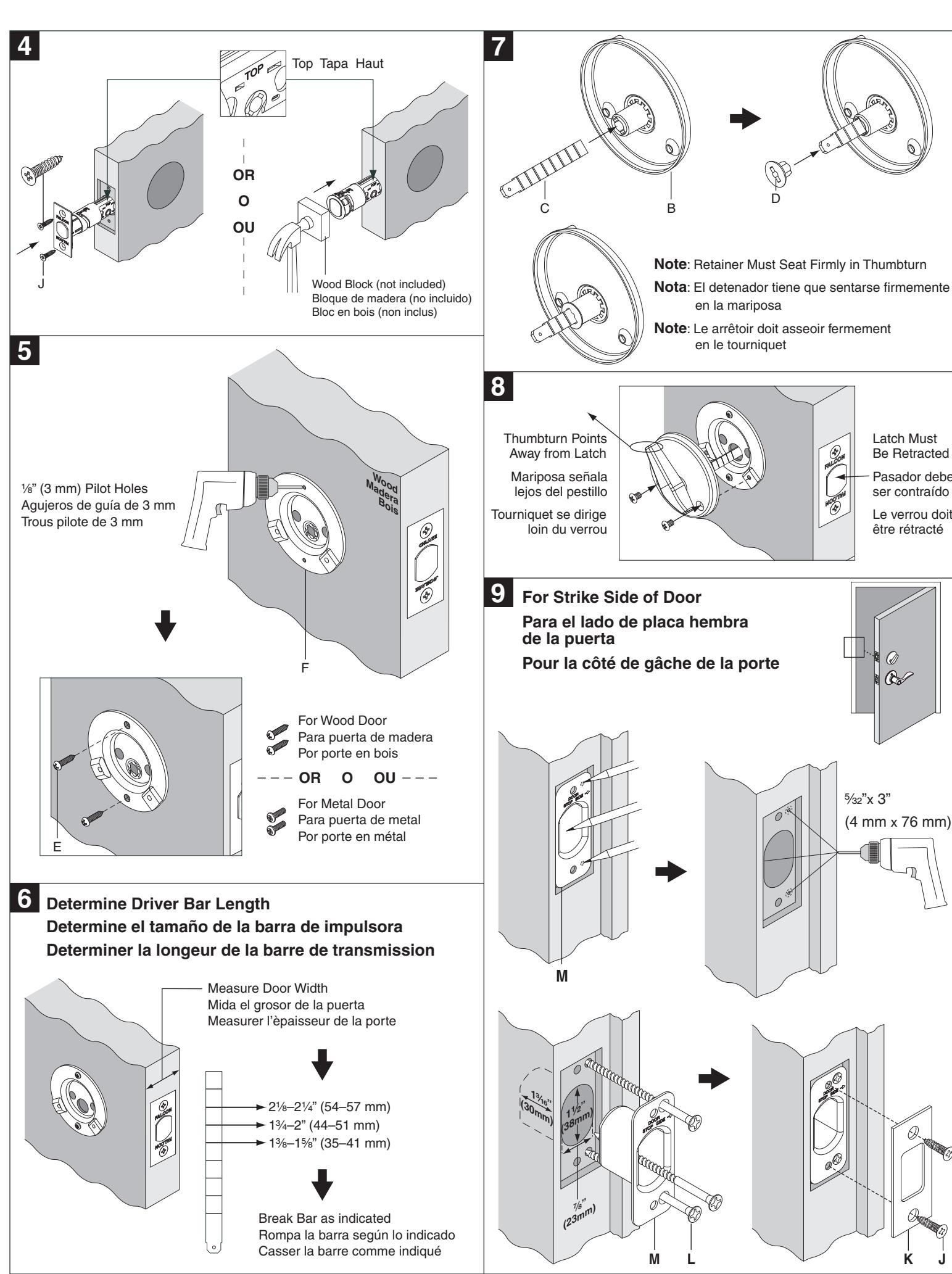

Latch Must
Be Retracted
Pasador debe
ser contraído
Le verrou doit
être rétracté
(4 mm x 76 mm)

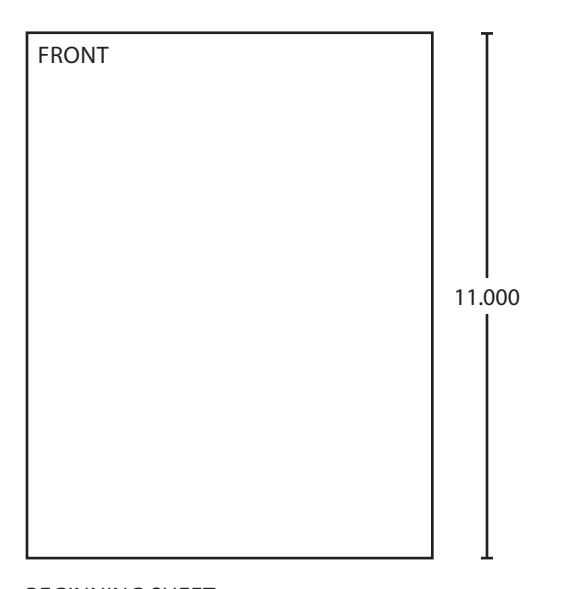

BEGINNING SHEET
| 4.25 | |||
|---|---|---|---|
| FRON | Т |
T
5.500 I |
FOLDED SHEET
| Additional Notes: |
| 1. None |
| Revision History | Revision Description: | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Α | В | С | D | E | F | E > Revised artwork | |||
| 6017 | 6182 | 6291 | 1354 | 1 | |||||
| Material | Edited By | Approved By | EC Number | Release Date | |||||
| White Paper | D. Spence | M. Sasso | 043528 | 01-01-14 | |||||
| Notes | Notes | Title | |||||||
| • | printed two sides printed black | Sheet, Instruction D261-261F | |||||||
| 3. tolerance ± .13 |
Creation Date
01-15-14 |
Number | Revision | ||||||
|
4. printed in country may vary
5. drawings not to scale |
Q513-084 | E | |||||||
| 5. Grawir | 5. drawings not to scale |
