FALCON ®

D100/200-Series

D261M, D271

Door Type:Metal, Flat or BeveledDoor Thickness:1%" (35mm) - 1%" (48mm)Faceplate:Square Corner, 1" (25mm) wide

Backsets: FD108-C, 2%" (60mm) | FD108-D, 2¾" (70mm)

Dimensions shown in parentheses () are in millimeters.

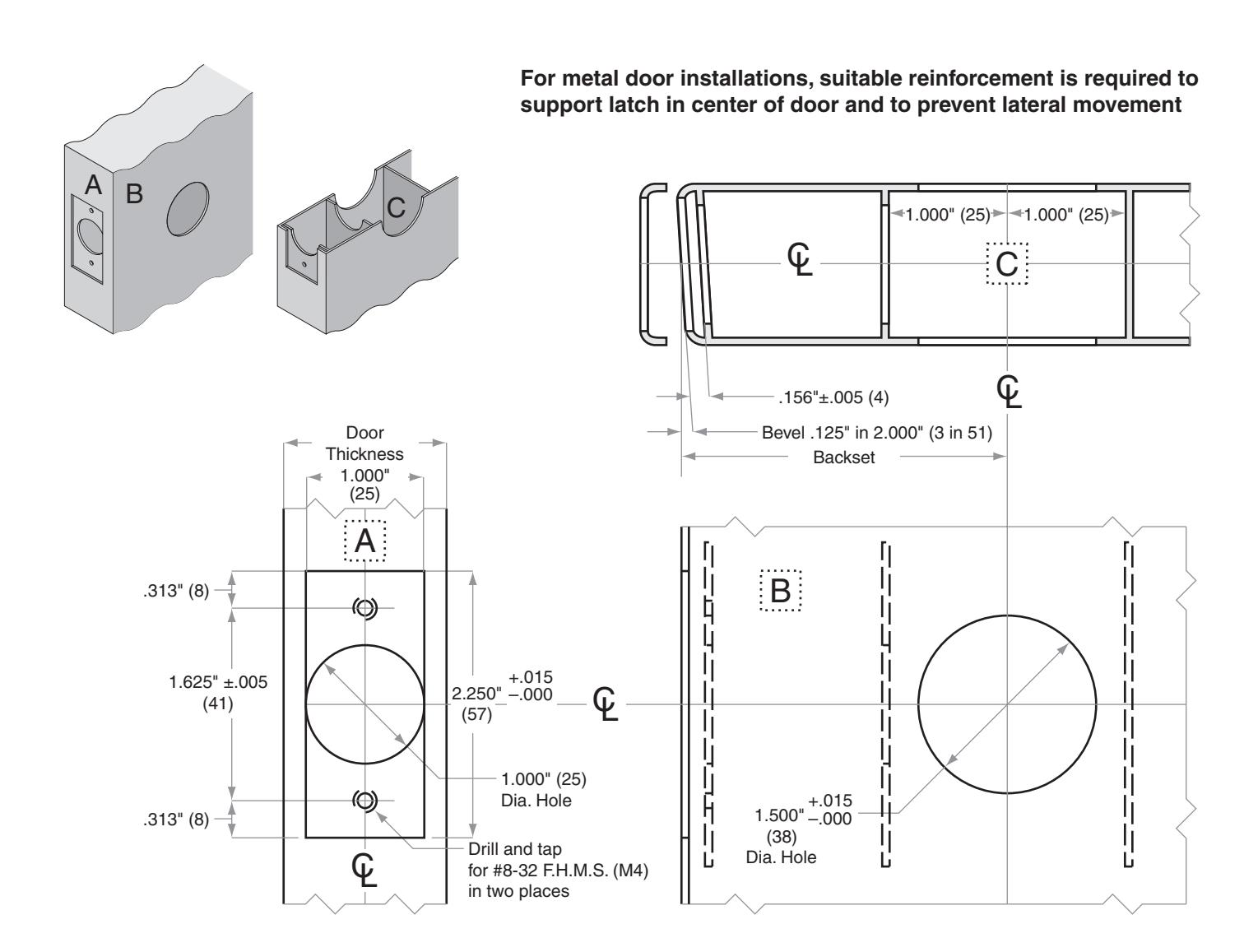

Door preparation template
