FALCON ®

D100/200-Series

D261M, D271

Door Type: Wood or Composite, Flat or Beveled

Door Thickness: 1%" (35mm) – 1%" (48mm) Faceplate: Square Corner, 1%" (25mm) wide

Backsets: FD112-C, 2%" (60mm) | FD112-D, 2%" (70mm)

Dimensions shown in parentheses () are in millimeters.

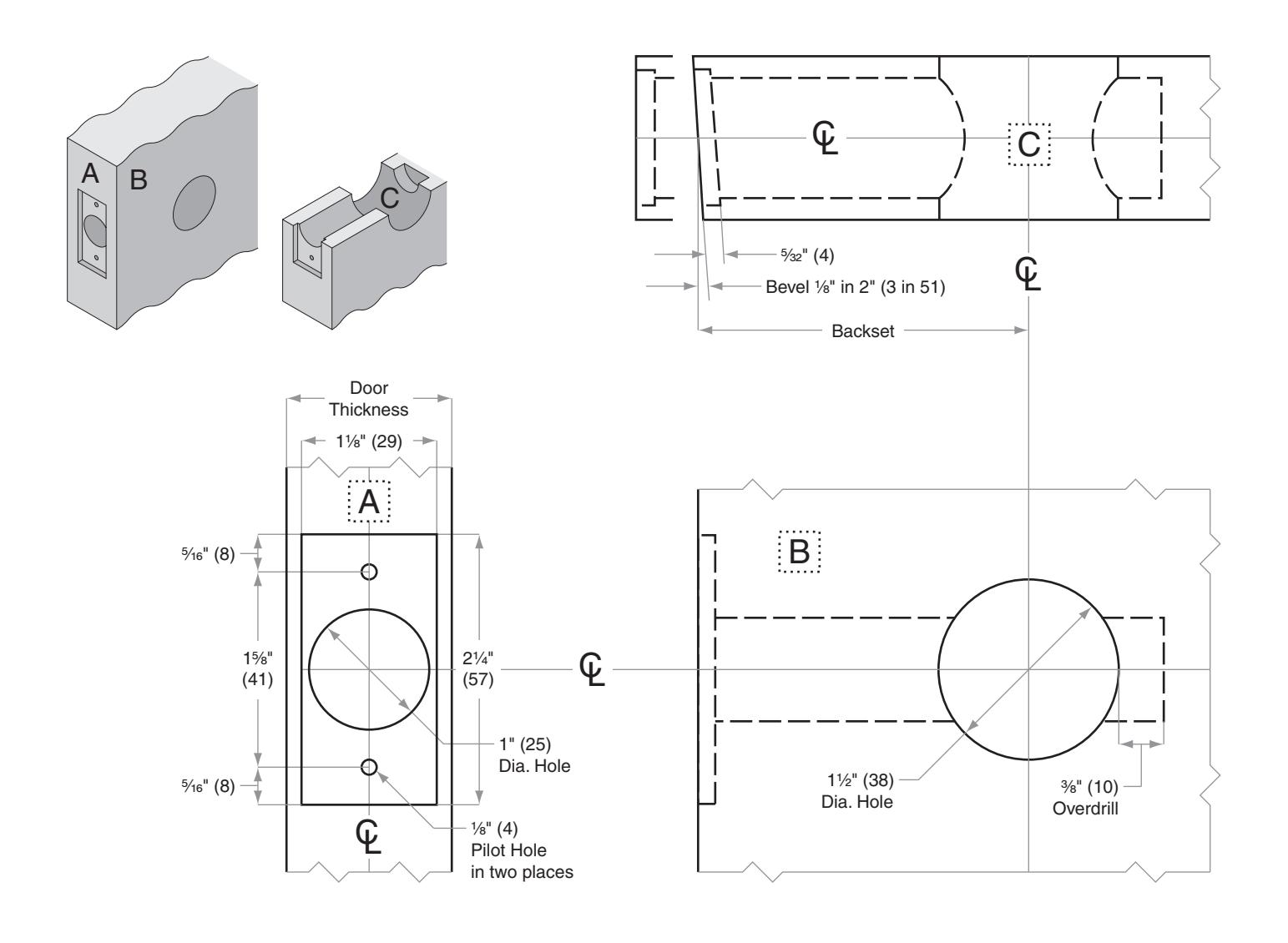

Door preparation template
