Falcon D261 Circular Drive-In Metal Template 108032

FALCON ®

D100/200-Series

D261

Door Type: Metal, flat

Door Thickness: 1%" (35mm) – 1%" (48mm)

Faceplate: Circular Drive-In

Backsets: FD118-C, 2%" (60mm) | FD118-D, 2¾" (70mm)

For metal door installations, suitable reinforcement is required to support latch in center of door and to prevent lateral movement

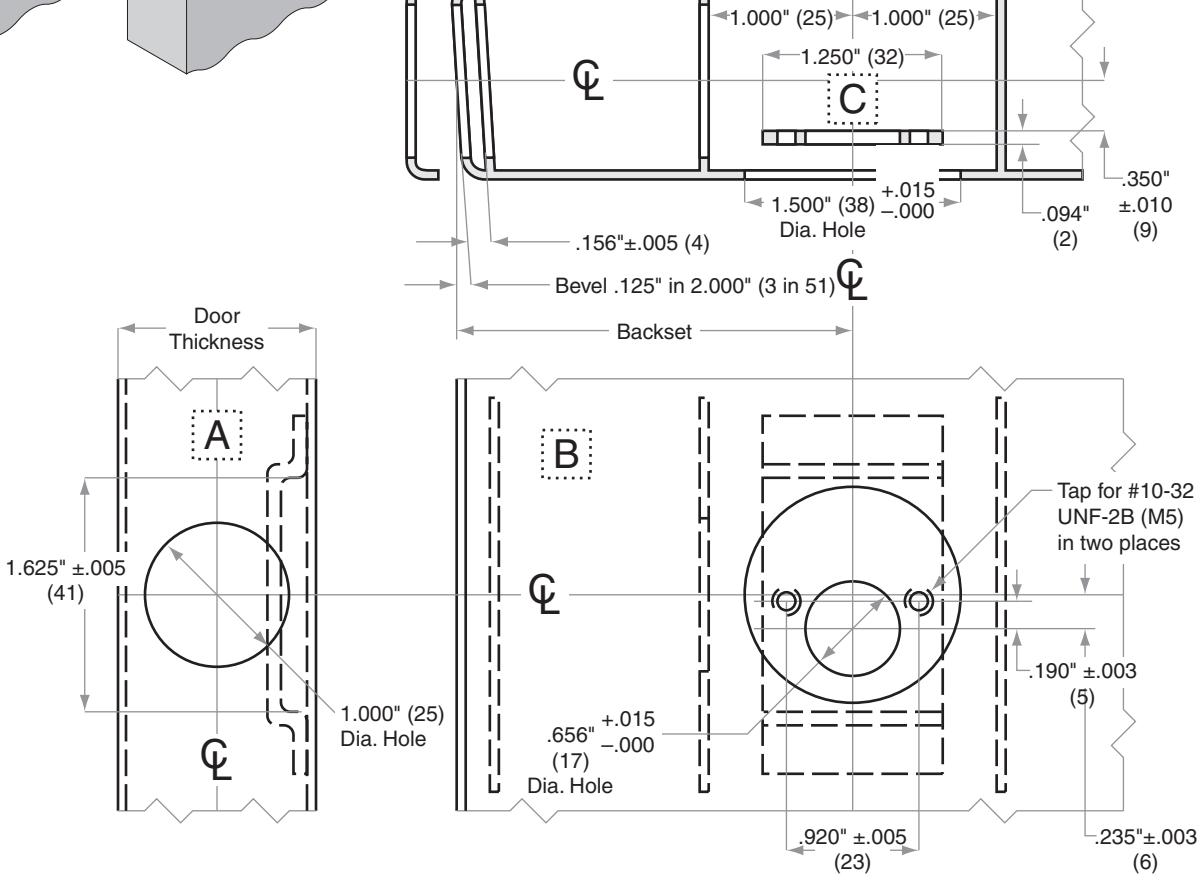

Dimensions shown in parentheses () are in millimeters.

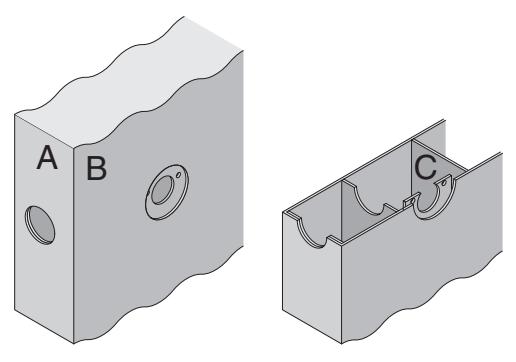

Door preparation template

ALLEGION
