Falcon D151_151F, D251_251F Double Thumbturn Deadbolt Installation Instructions – ENG_SPA_FRE 108473
Open the original PDF document
View PDF
D151/151F (UL) D251/251F (UL)
FALCON
Instrucciones de instalación Notice d'installation
D151F/D251F (UL)
21/8" (54mm) Hole Only:

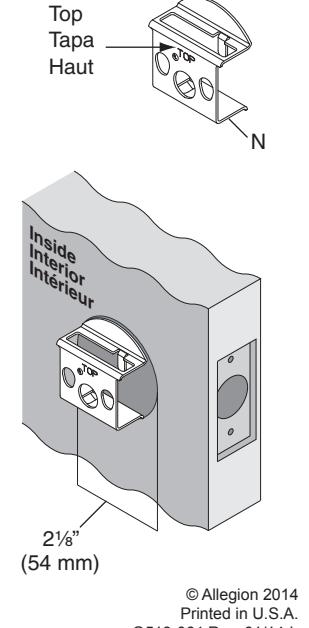

Insert Fire Cup Before Deadbolt Agujero de 54 mm solamente: Inserte la taza contra incendios antes del pasador Trou de 54 mm
seulement: Insérer la coupelle anti-incendie avant le pêne dormant
