Falcon D111 211 121 221 131 231 141 241 111F 211F 221F 141F and 241F Series Cylindrical Deadbolts Installation Instructions – ENG_SPA_FRE 108471
Open the original PDF document
View PDF
D111 / 211 / 121 / 221 / 131 / 231 / 141 / 241 111F/211F/121F/221F/141F/241F (UL)
FALCON
Instrucciones de instalación Pasador con Cilindro-Mariposa/Llana/Cilindro/Clase

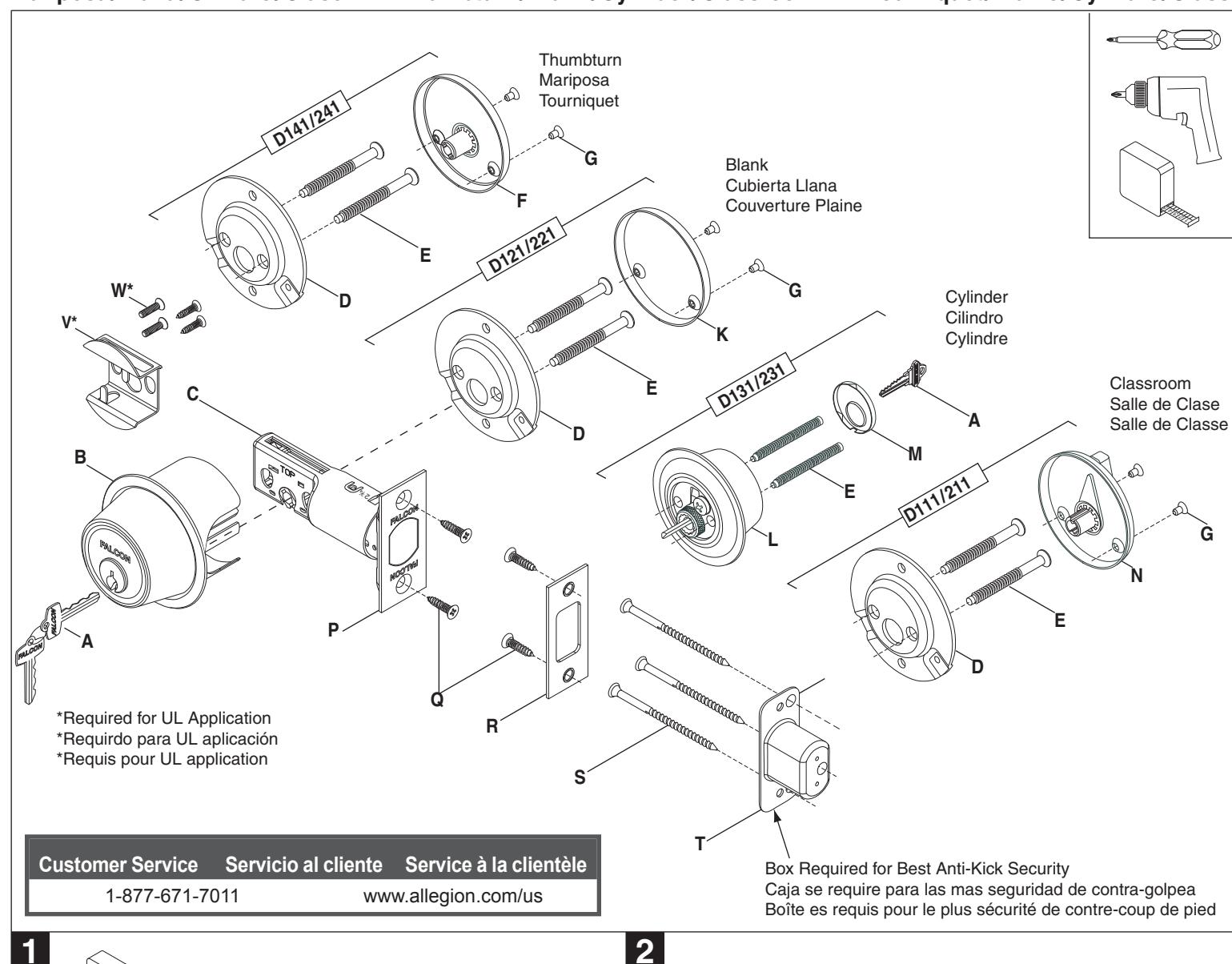

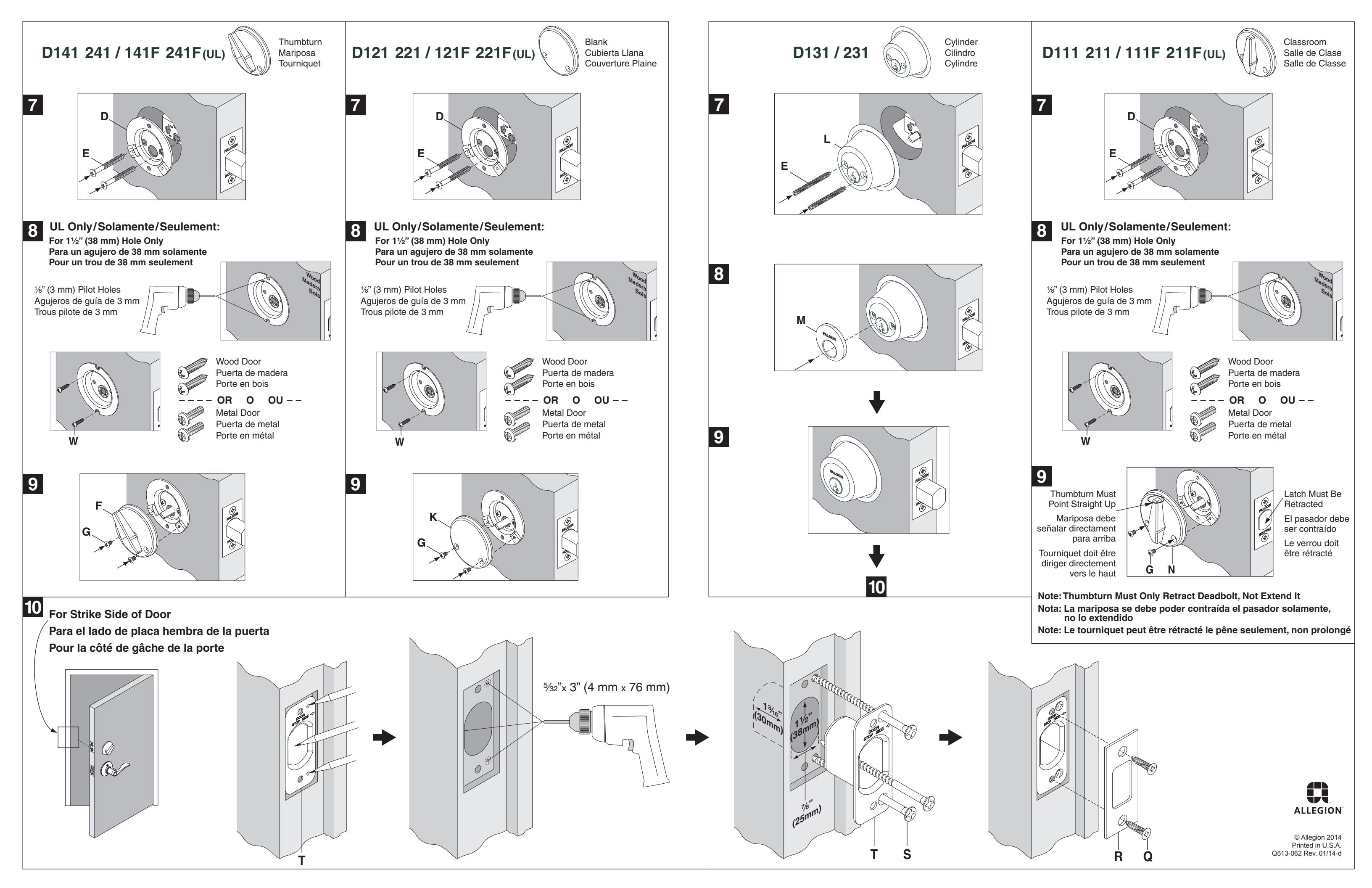

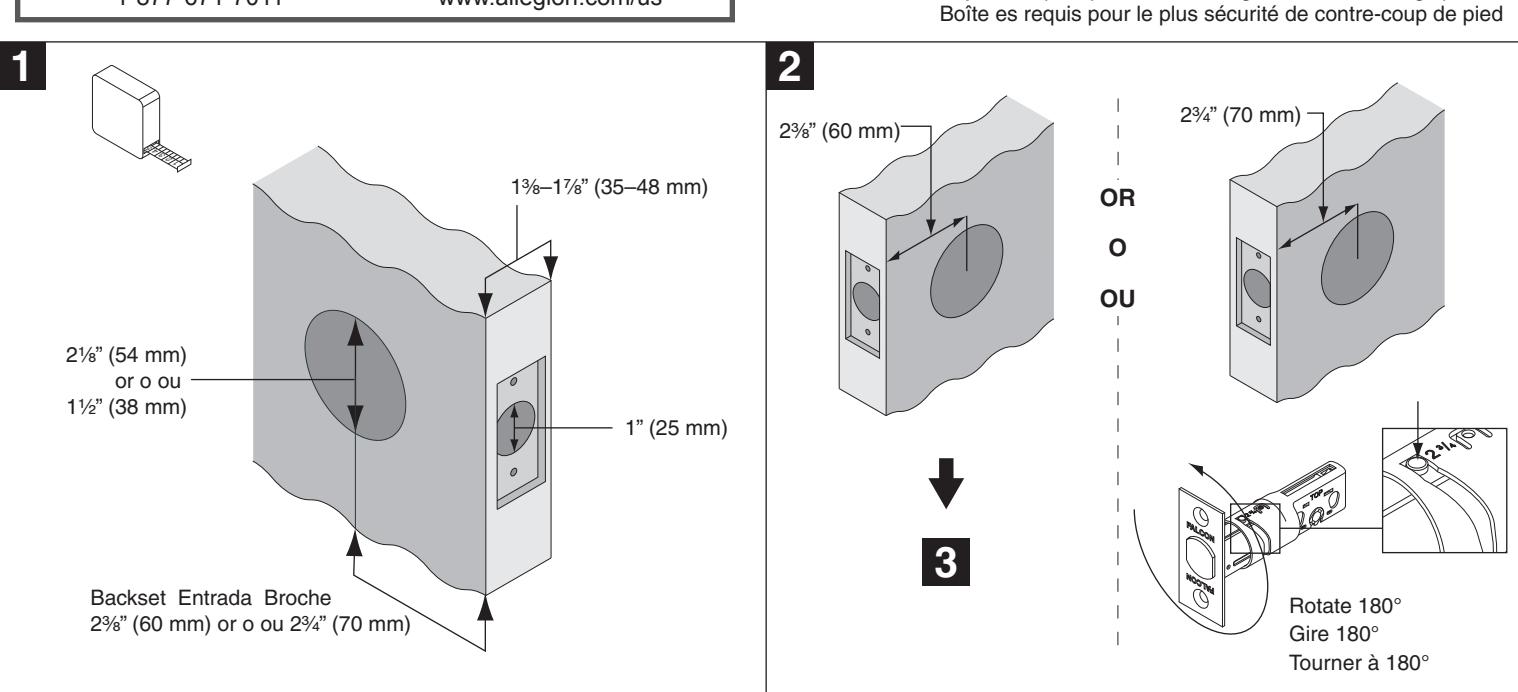

Installation Instructions Cylinder Deadbolt-Thumbturn/Blank/Cylinder/Classroom
Notice d'installation Pêne Dormant avec Cylindre-Tourniquet/Plaine/Cylindre/Classe

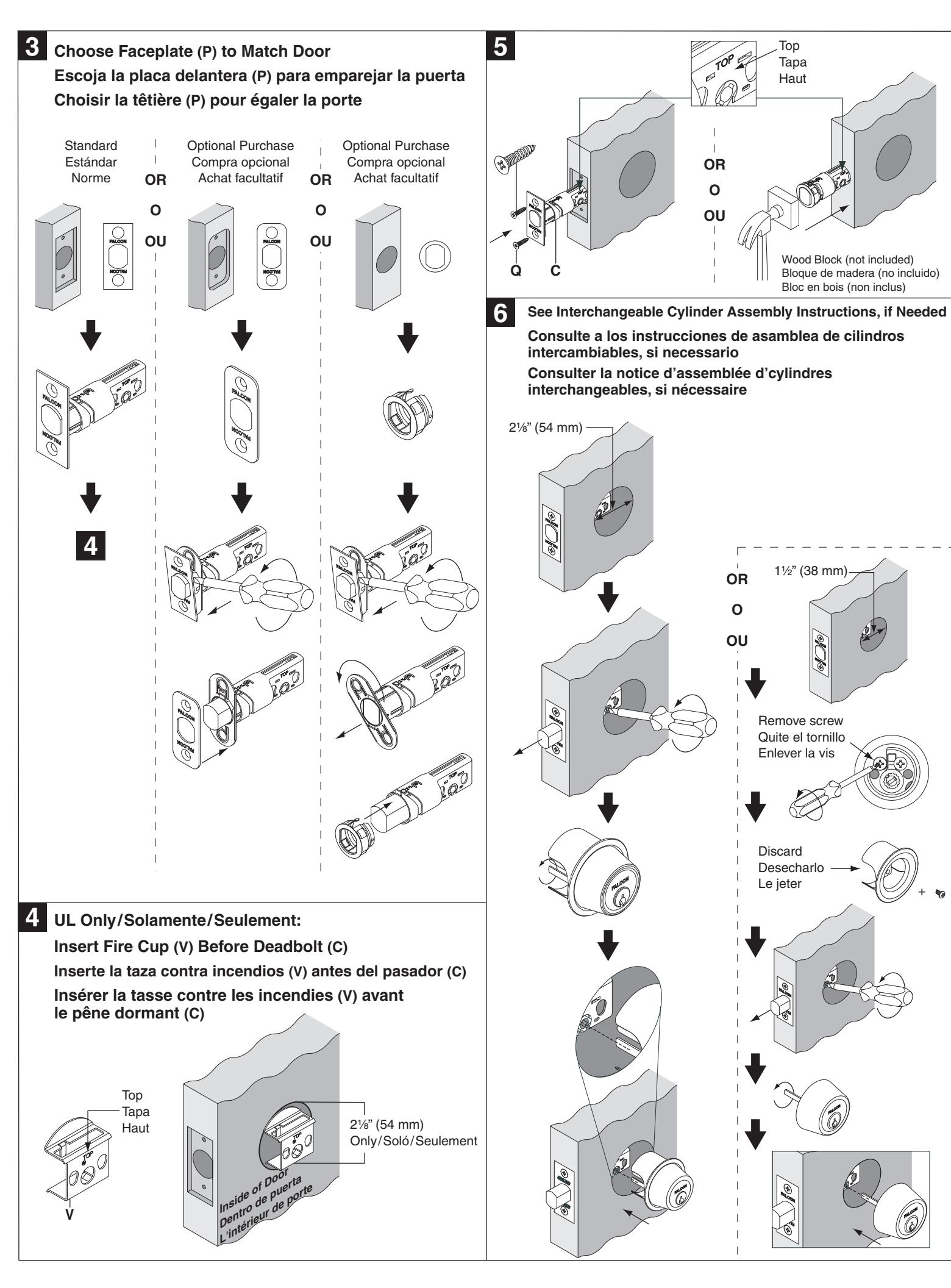

Wood Block (not included Bloque de madera (no incluido)
Bloc en bois (non inclus)
Remove screw
Quite el tornillo
Desecharlo
BEGINNING SHEET FOLDED SHEET
| Additional Notes: | |
|---|---|
| 1. None | |
| Revision History | Revision Description: | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| А | В | С | D | E | F | D > Revised artwork | ||||
| 6116 | 6182 | 00142 | 1 | |||||||
| Material White Paper | Edited By | Approved By | EC Number | Release Date | ||||||
| D. Spence | M. Sasso | 042749 | 01-01-14 | |||||||

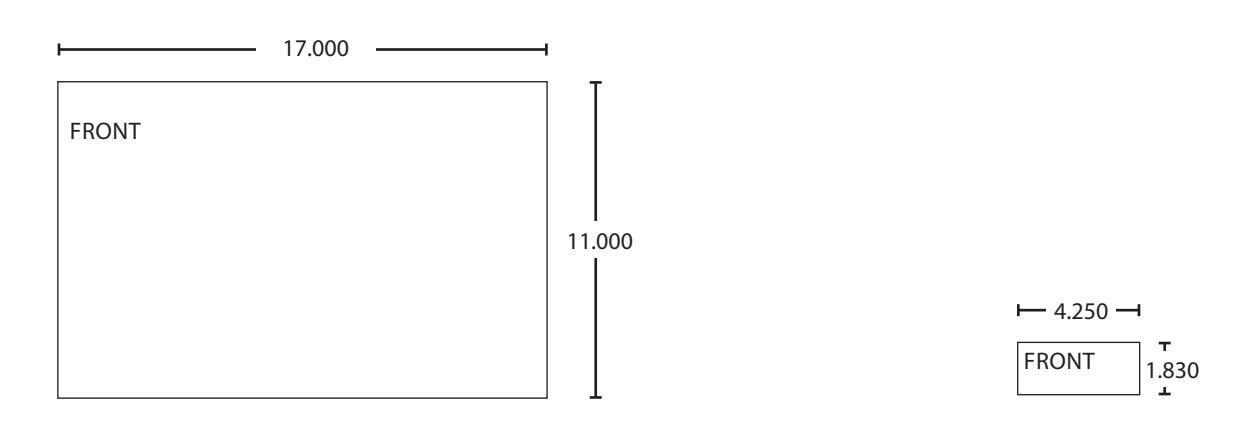

| Notes 1. printed two sides 2. printed black 3. tolerance ± .13 4. printed in country may vary 5. drawings not to scale 6. barcode must be visible after folding | Title SHEET, INSTRUCTION, D111/211/121/221/131/231/141 + UL | |||||||||
|
