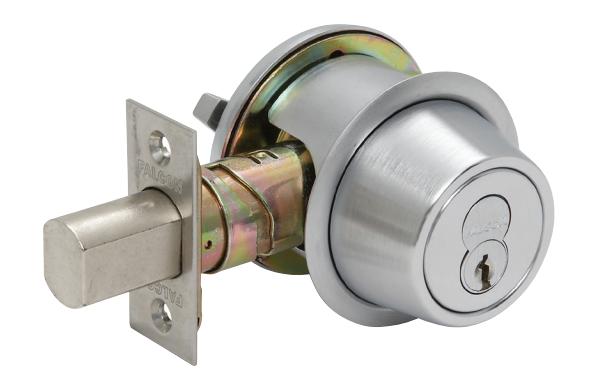

Grade 1, heavy-duty deadbolts

D100 Series

Overview

Deadbolt locks provide an extra measure of protection against break-in when used as a supplement to an existing lockset. In applications ranging from military and government projects to multi-family housing, retail and restaurants, Falcon� deadbolts deliver superior performance and the flexibility of multiple keying systems. Our full line of Grade 1 and 2 auxiliary locks feature interchangeable cores that are compatible with SFIC products from other manufacturers. Plus they're backed by Allegion, the best name in the business.

Finishes

605 Bright Brass

606 Satin Brass

613 Oil Rubbed Bronze

625 Bright Chrome

626 Satin Chrome

Cylinders

Conventional cylinder

L	Less 6-pin conventional cylinder
P	6-pin conventional cylinder (pinned to 5)
P6	6-pin conventional cylinder (pinned to 6)
P7	7-pin conventional cylinder (pinned to 7)
CP6	6-pin conventional cylinder, Schlage C

Small format interchangeable core (SFIC)

B	Less SFIC
BB	7-pin SFIC, Best style
BDC	SFIC disposable construction core
G1	SFIC, Falcon style1
H	SFIC refundable construction core

¹ 6-pin standard, specify G7 if 7-pin is desired.

Availability of conventional cylinders in competitive keyways (6-pin)

The D Series lockset can be ordered with a conventional cylinder in a number of competitive open keyways. For a complete list of options see the Falcon catalog or price book.

Compatibility with competitors' SFIC cylinders

Falcon locksets also accept the following cores:

• Schlage
• Arrow (including Flex Core)
• Best (including PKS and Peaks)
• InstaKey
• Kaba Peaks
• Keymark
• KSP

When specifying "B" for less SFIC cylinder, please note that these manufacturer's cylinders all fit the Falcon lever and spring cage configuration. The appropriate Falcon tailpiece will be provided with the lockset.

Functions

Falcon D111 ANSI E0171 Classroom function

• Deadbolt thrown or retracted by key from outside.
• Inside turn will only retract bolt.
• Bolt automatically deadlocks when fully thrown.

Falcon D121 ANSI E0161 Single cylinder

• Deadbolt thrown or retracted by key only.
• Blank plate inside.
• Bolt automatically deadlocks when fully thrown.

Falcon D131 ANSI E0141 Double cylinder

• Deadbolt thrown or retracted by key from either side.
• Bolt automatically deadlocks when fully thrown.

Falcon D141 ANSI E0151 Single cylinder x thumbturn

• Deadbolt thrown or retracted by key or by turn.
• Bolt automatically deadlocks when fully thrown.

Falcon D151 ANSI - Double thumbturn

• Deadbolt thrown or retracted by turn unit from either side.
• Bolt automatically deadlocks when fully thrown.
• Application for shelters.

Specifications

Chassis
Material	Wrought brass or bronze reinforced with steel insert
Door thickness	1 7 ⁄8" standard conventional cylinder and thumbturn only
	1 5⁄8" to 2 1 ⁄4" SFIC cylinder
Trim
Handing	Non-handed
Deadbolt
Backset	2 3/8" - 2 3/4" adjustable deadbolt
Faceplate	Standard: 1 1/8" x 2 1/4"
	Optional: 1" x 2 1/4"
Bolt	Deadbolt locks are furnished with deadbolts which have a full 1" projection.
	Housed within the deadbolt is a free-turning, 1⁄4" thick, hardened steel, saw
	resistant roller. D100 bolt is high strength steel.
Strike	2 3⁄4" x 1 1 ⁄8" lipless strike standard. ANSI 4 7 ⁄8" x 1 1 ⁄4" lipless, 2 1 ⁄4" full lip strikes,
	a 2 3⁄4" x 1 1 ⁄8" T-strike or a security strike are available.
Keying
Cylinder format	Conventional cylinder, drilled with 6-pin chambers, pinned in 5 comes standard.
	Pinning in 6 chambers available (at no cost) when specified. Optional 7-pin
	conventional and 6- or 7-pin Small Format Interchangeable Core (SFIC)
	cylinders. Cylinder housings and plugs machined from solid brass. Springs are
	phosphor bronze. Two nickel silver keys furnished standard.
Keyway	"G" keyway standard on conventional cylinders; "A" keyway standard on SFIC
	cylinders. Additional options: Falcon, Schlage and many Best and Arrow keyways.
Screws
	Furnished with wood/machine screws for use on wood or metal doors or frames
Warranty
	Limited warranty, 10 years for date of manufacturer, see price book for details.
Certifications
ANSI/BHMA	A156.5, 2001, Grade 1
UL/cUL	Listed for 3-hour fire door
Federal	BAA Listed
Other	ADA compliant thumbturn
