D-Series Deadbolt Installation for UL and ULC 20-Minute Fire Doors 030201-000-70
NOTE: Through-hole in door must be wider than 1¹⁄₂" diameter Trou travesant dans la porte doit être plus large que 1¹⁄₂" díamètre
ATTENTION INSTALLER

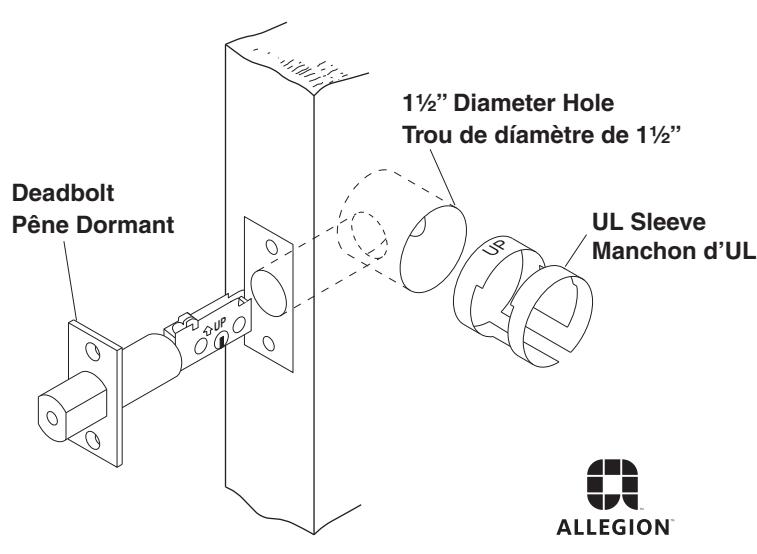

Before installing deadbolt, UL sleeve must be installed in 1¹⁄₂" diameter hole, as shown.
AVIS
Avant l'installation du pêne dormant, le manchon d'UL doit être installer dans un trou de díamètre de 1¹⁄₂" comme illustré.
© Allegion 2014 Printed in U.S.A. 030201-000-70 Rev. 10/14-e
