Falcon B101-B611 1in Square Corner Wood Template 108007

Open the original PDF document

View PDF

B-Series

B101-B611

Door Type: Wood or Composite, Flat or Beveled

Door Thickness: 1C\v" (44mm) – 2Z\," (54mm) Faceplate: Square Corner, 1" (25mm) wide

Backsets: FB100-C, 2C\," (60mm) | FB100-D, 2C\v" (70mm) | FB100-F, 5" (127mm)

Dimensions shown in parentheses () are in millimeters.

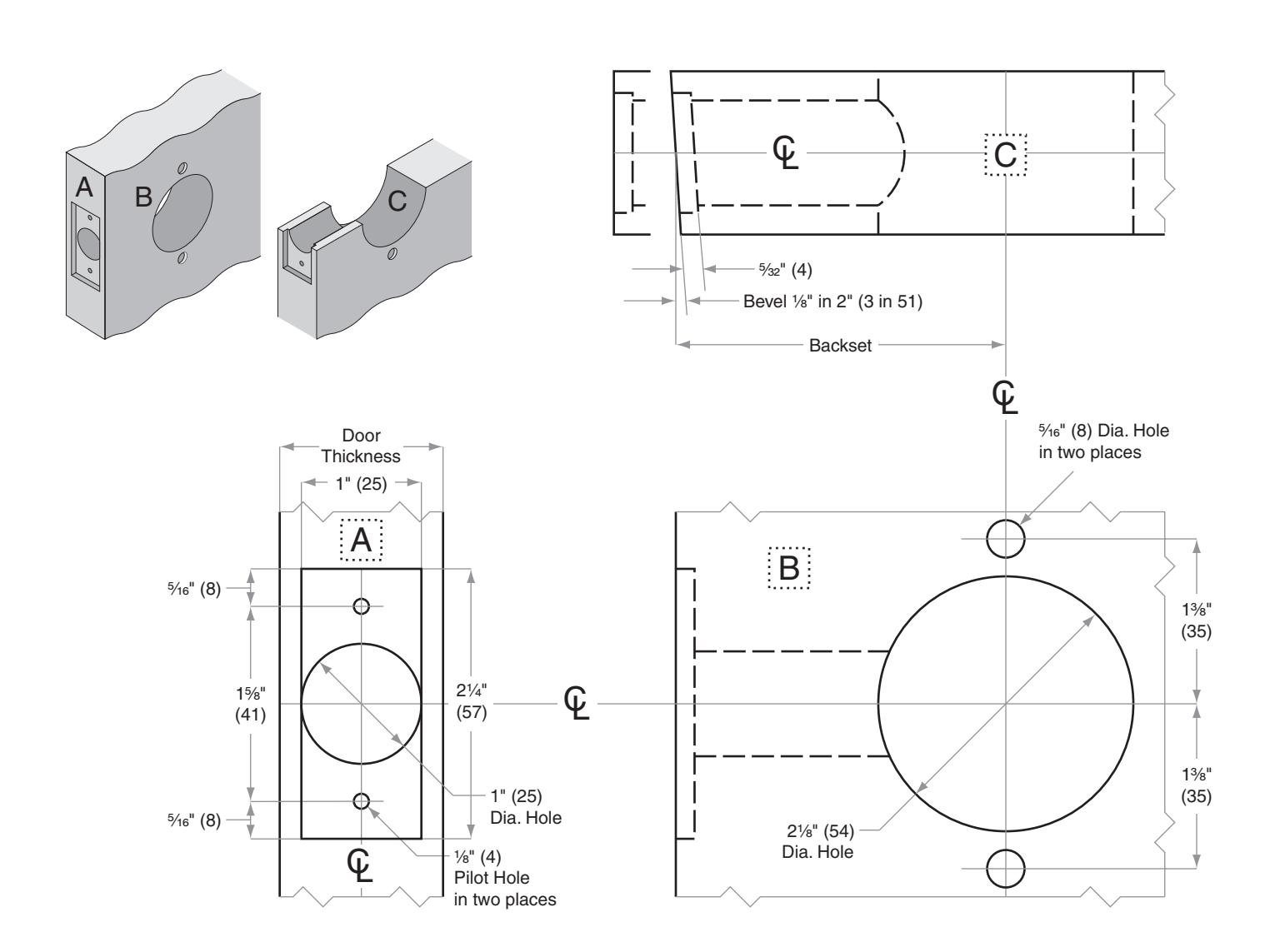

Door preparation template
