Falcon 25-R and F-25-R Rim Exit Device Metal Door Template 108501
Open the original PDF document
View PDF(F)25-R Rim Device

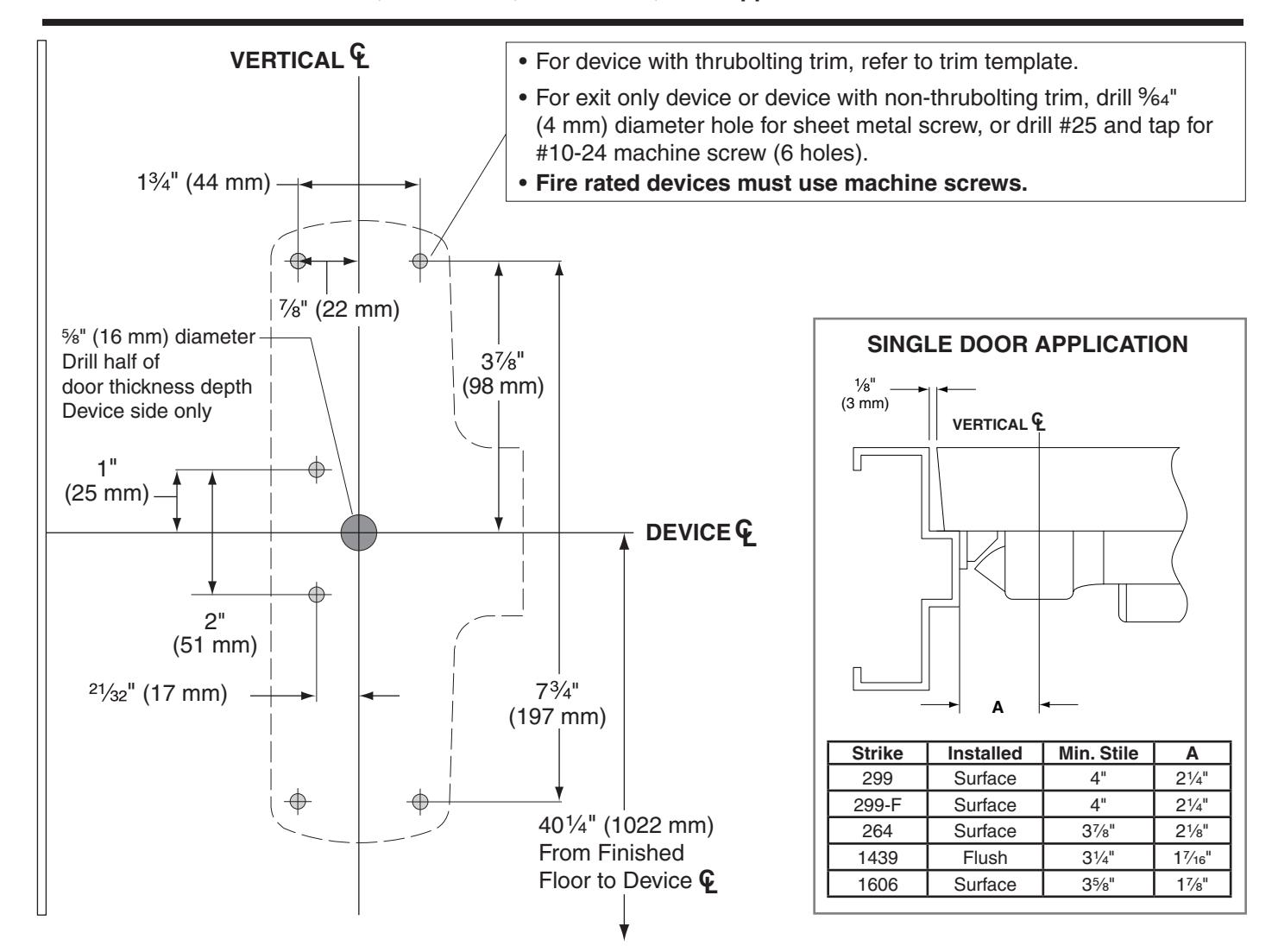

Rim Panic and Fire Exit Device, Metal Door, LHR Shown, RHR Opposite

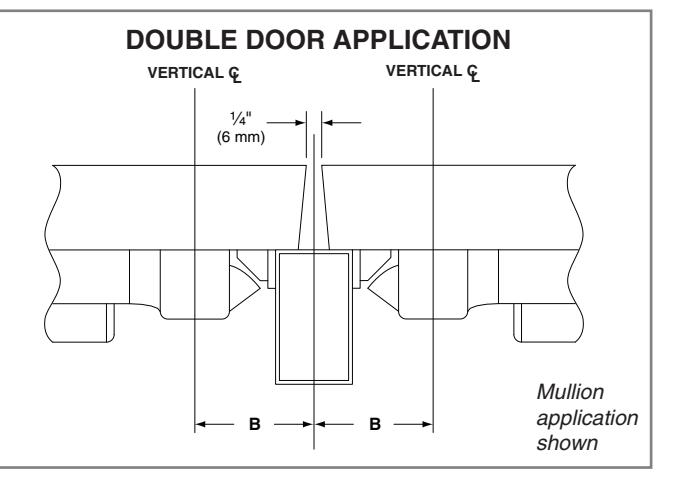

| Strike | Installed With | Min. Stile | B |
VERTICAL C
VERTICAL CL |
L |
|---|---|---|---|---|---|
| 299 | 2923 Mullion | 4¹⁄₈" | 3" | ¹⁄₄" | |
| 299 | 4023 Mullion | 4³⁄₈" | 3¹⁄₄" | (6 mm) | |
| 299-F | F-4023 Mullion | 4³⁄₈" | 3¹⁄₄" | ||
| 499-F | F-4023 Mullion | 4¹⁄₂" | 3⁵⁄₁₆" | ||
| 264 | 2923 Mullion | 4" | 2⁷⁄₈" | ||
| 264 | 4023 Mullion | 4¹⁄₄" | 3¹⁄₈" | ||
| 1439 | 2923 Mullion | 3⁷⁄₈" | 2³⁄₄" | ||
| 1439 | 4023 Mullion | 4¹⁄₈" | 3" | ||
| 1606 | 2923 Mullion | 4¹⁄₄" | 2⁵⁄₈" | ||
| 1606 | 4023 Mullion | 4¹⁄₂" | 2⁷⁄₈" | ||
| 1609 | Surface 25-V | 4" | 2³⁄₈" |
B
B |
|
- For sexbolt preparation, refer to Template T-4014.
- For outside trim, see trim template for door preparation.
- See Master Sheet #0100 for suggested reinforcing.
- For 25-R device on ANSI A115.2 door, refer to Template T-1260.
- For NL-OP cylinder preparation, see template T-4030.
TEMPLATE
T-1201-c
