Falcon 25-R Rim Device ANSI A115.2 Wood Door Template 108789
Open the original PDF document
View PDF25-R Rim Device on ANSI A115.2 Prepared Door

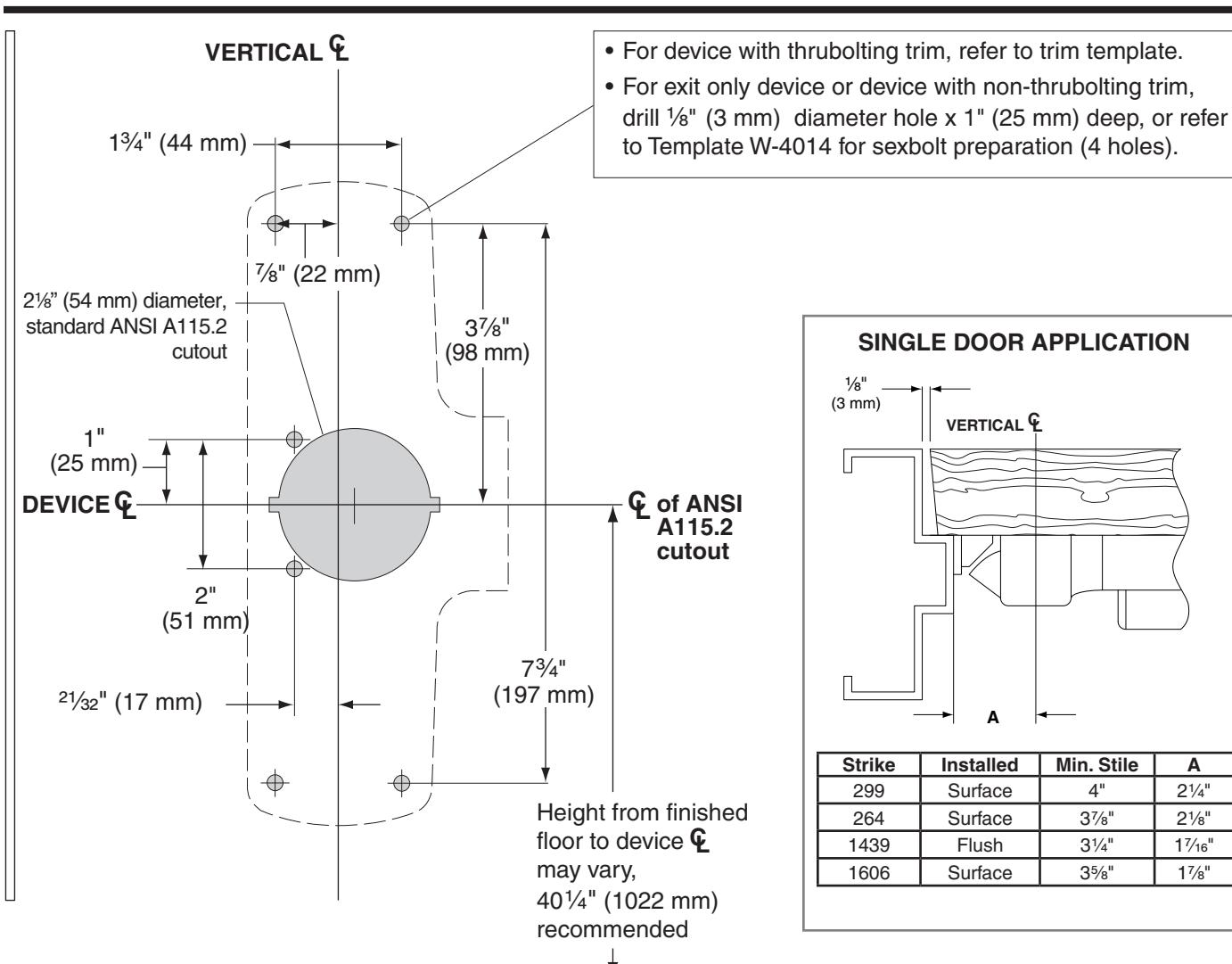

Rim Panic Exit Device, Wood Door, LHR Shown, RHR Opposite
| SINGLE DOOR APPLICATION | |||||
|---|---|---|---|---|---|
|
1
/
8
"
(3 mm) |
vertical & | ||||
| A - | |||||
Min. Stile
37/8"
31/4"
35/8"
Α 21/4"
21/8"
17/16"
17/8"
| Strike | Installed With | Min. Stile | В | 1/4" — |
|---|---|---|---|---|
| 299 | 2923 Mullion | 41/8" | 3" | |
| 264 | 2923 Mullion | 4" | 21/8" | |
| 1439 | 2923 Mullion | 37/8" | 2¾" | |
| 1439 | 4023 Mullion | 41/8" | 3" | |
| 1606 | 2923 Mullion | 41/4" | 25/8" | |
| 1606 | 4023 Mullion | 41/2" | 27/8" | |
| 1609 | Surface 25-V | 4" | 2%" |
- On ANSI 115.2 door, vertical center line of device should be moved up or down to match vertical center line of ANSI 21/8" cutout
- ANSI A115.2 door cannot be used with NL-OP applications
- For sexbolt preparation, refer to Template W-4014.
- For outside trim, see trim template for door preparation.
TEMPLATE
W-1260-a
