Falcon 25-R Rim Device ANSI A115.2 Metal Door Template 108508

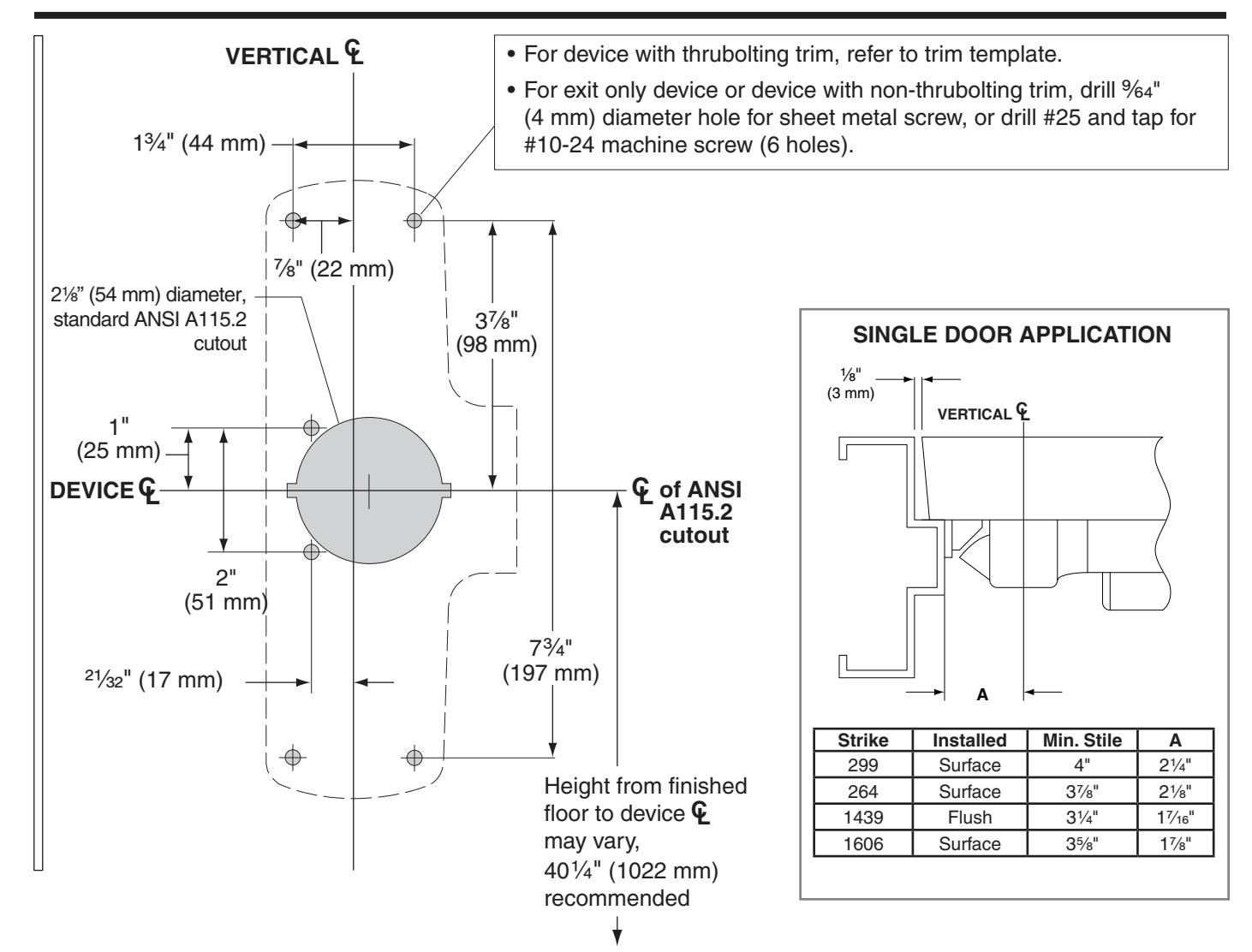

25-R Rim Device on ANSI A115.2 Prepared Door

Rim Panic Exit Device, Metal Door, LHR Shown, RHR Opposite

				1/4"
Strike	Installed With	Min. Stile	В	(6 mm)
299	2923 Mullion	41/8"	3"		7
264	2923 Mullion	4"	21/8"	/ | | | | | |	\
1439	2923 Mullion	37/8"	2¾"		)
1439	4023 Mullion	41/8"	3"		7
1606	2923 Mullion	41/4"	2%"		$\backslash overline\{\}$
1606	4023 Mullion	41/2"	27/8"		)
1609	Surface 25-V	4"	2%"

• On ANSI 115.2 door, vertical center line of device should be moved up or down to match vertical center line of ANSI 21%" cutout
• ANSI A115.2 door cannot be used with NL-OP applications
• For sexbolt preparation, refer to Template T-4014.
• For outside trim, see trim template for door preparation.
• See Master Sheet #0100 for suggested reinforcing.

TEMPLATE

T-1260-a
