Falcon 25-M and F-25-M Mortise Exit Device Wood Door Template 108785
Open the original PDF document
View PDF(F)25-M Mortise Device

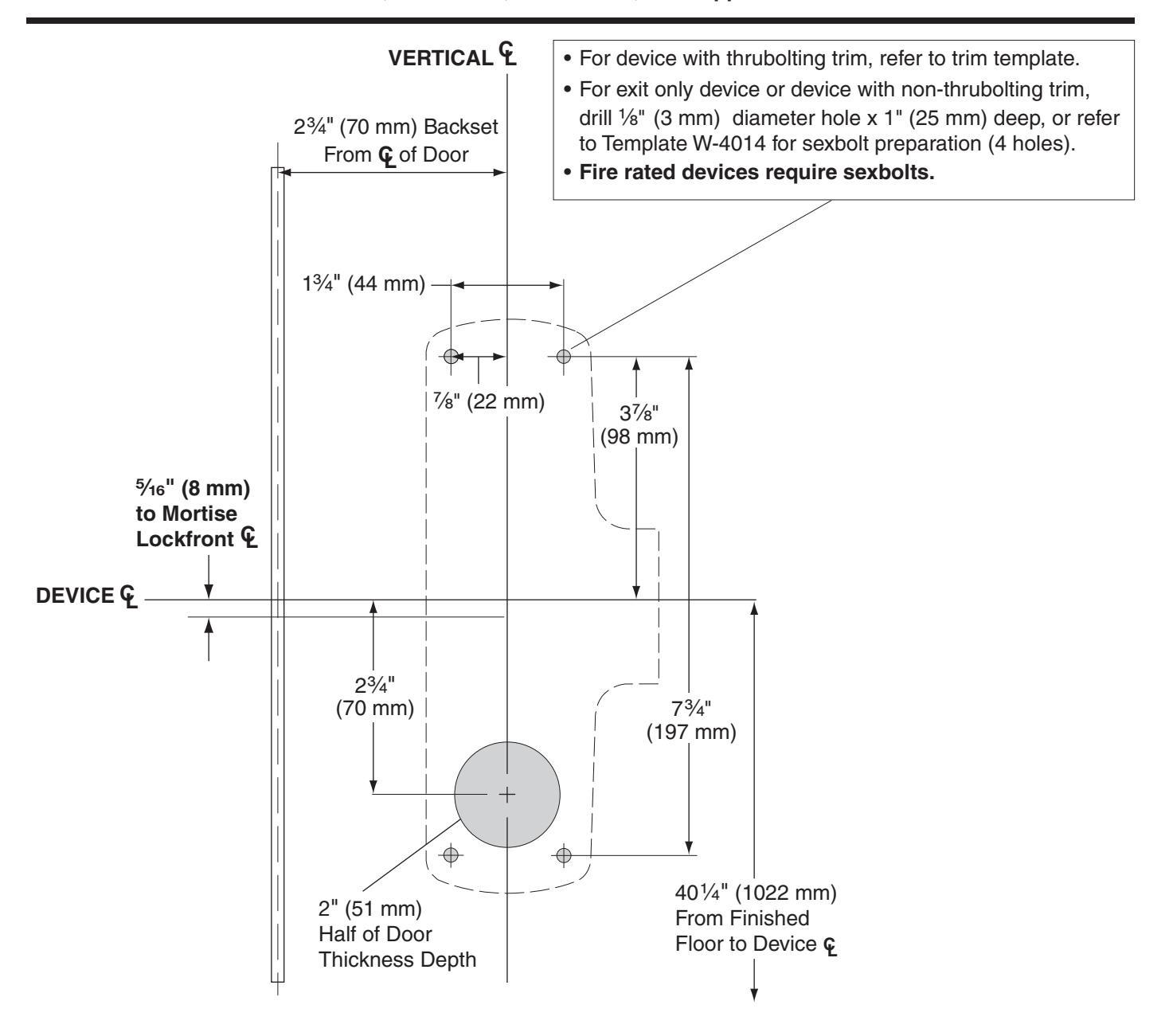

Mortise Panic and Fire Exit Devices, Wood Door, LHR Shown, RHR Opposite
- • See Template W-4012 for mortise lock preparation.
- • For doors with existing Mortise Lock preparation, the Device CL is B\zn" (8mm) above the lockfront CL
- • For sexbolt preparation, refer to Template W-4014.
- • For outside trim, see trim template for door preparation.
TEMPLATE
W-1210-a
