Falcon 25-M and F-25-M Mortise Exit Device Metal Door Template 108502
Open the original PDF document
View PDF(F)25-M Mortise Device

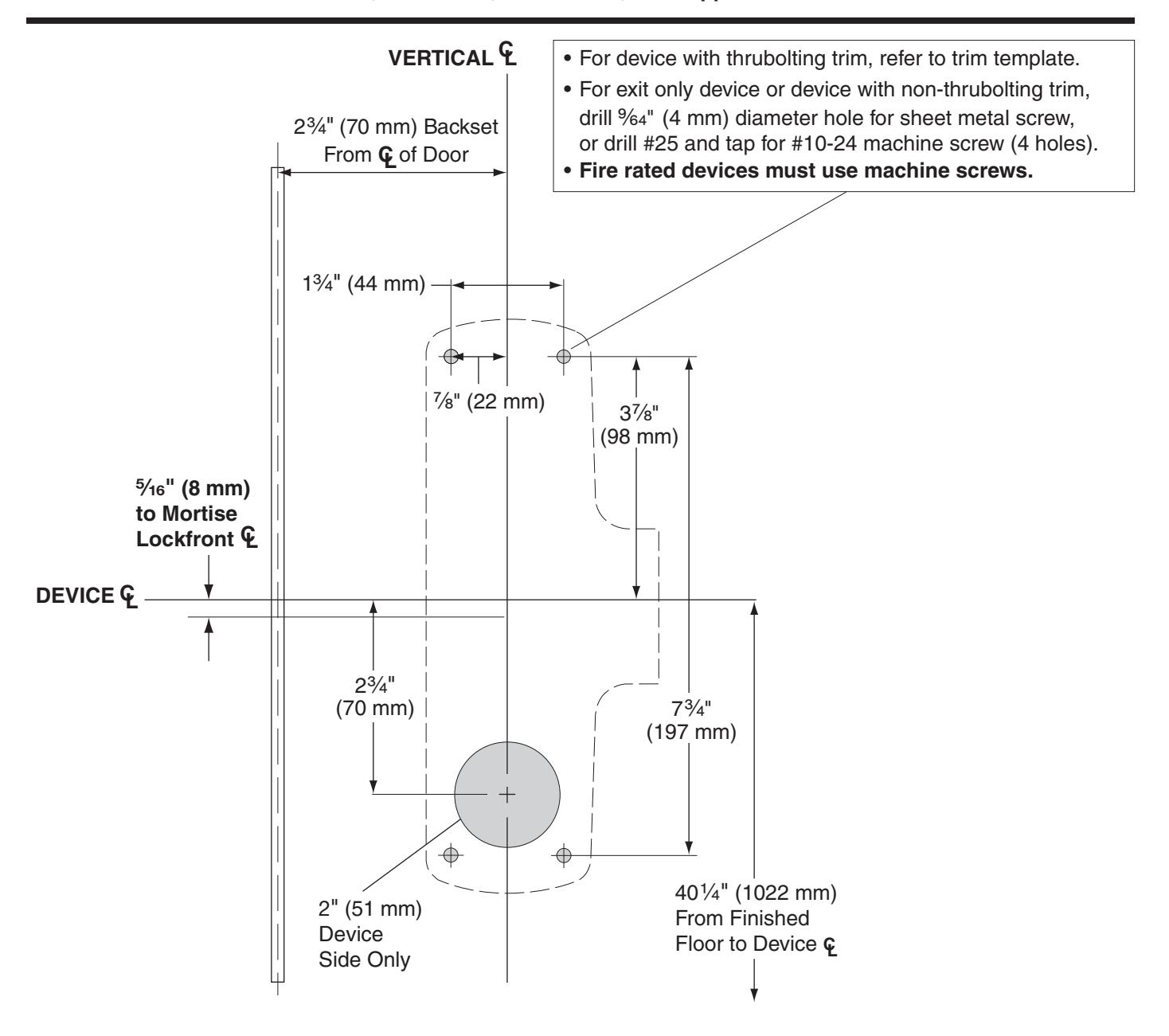

Mortise Panic and Fire Exit Device, Metal Door, LHR Shown, RHR Opposite
- • See Template T-4012 for mortise lock preparation.
- • For doors with existing Mortise Lock preparation, the Device CL is B\zn" (8 mm) above the lockfront CL
- • For sexbolt preparation, refer to Template T-4014.
- • For outside trim, see trim template for door preparation.
- • See Master Sheet #0100 for suggested reinforcing.
TEMPLATE
T-1210-a
