Falcon 25-C Concealed Vertical Device Metal Door Template 108507
Open the original PDF document
View PDF25-C Concealed Vertical Device

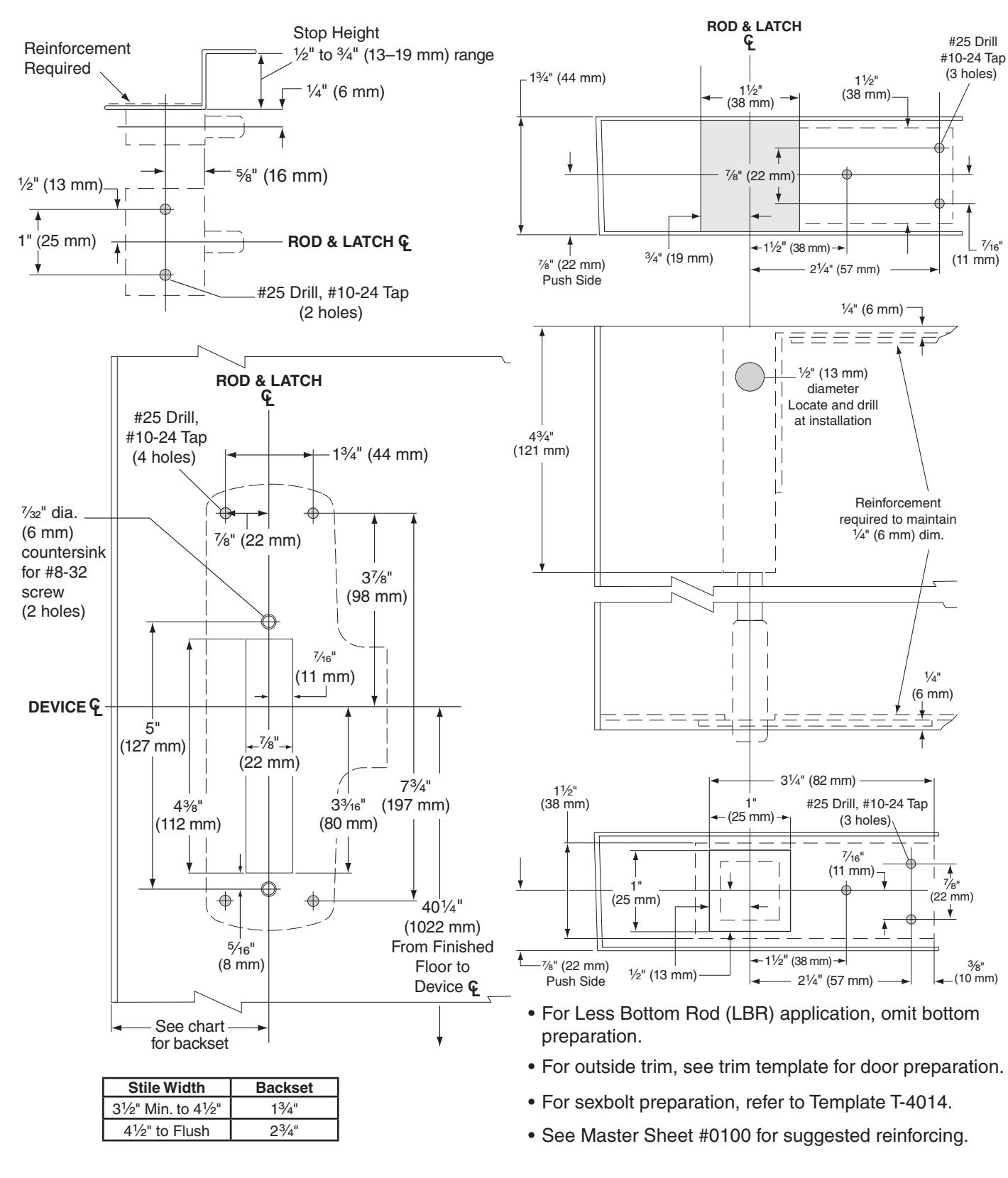

Concealed Vertical Rod Panic Exit Device, Metal Door, LHR Shown, RHR Opposite
TEMPLATE
T-1231-c
Open the original PDF document
View PDFConcealed Vertical Rod Panic Exit Device, Metal Door, LHR Shown, RHR Opposite
TEMPLATE
T-1231-c
