20 Series
Light-to-medium duty pushbar exit device
Overview
Falcon® prides itself on dependable, cost-effective products that meet or exceed life safety and building requirements. The Falcon 20 Series, pushbar exit devices are ideal for light-to-medium duty door applications, such as commercial, multi-family, office, and retail. This Grade 1, affordable exit device is offered in multiple functions, lever, and trim options. With the Falcon 20 Series, you're choosing a quality performing exit device with all metal construction at an unmatched value.

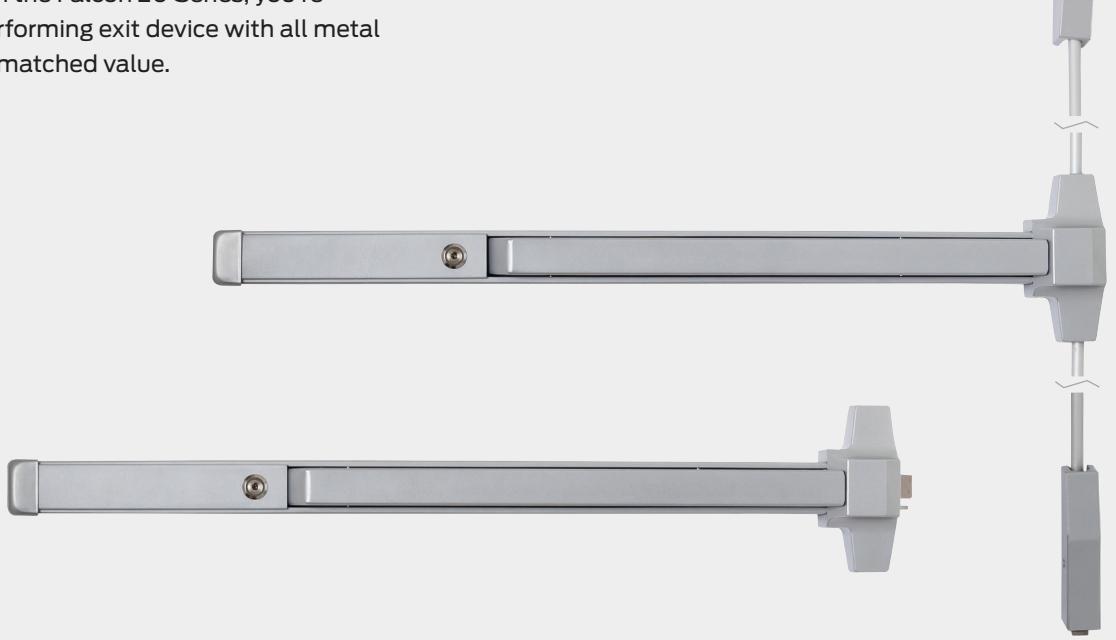

20 Series
Light-to-medium duty, Grade 1 exit device
The Falcon 20 Series exit device is an affordable and reliable choice. Offered in Rim, Surface Vertical, Rim Fire and Surface Vertical Fire that will accommodate 161 door prep, this series can meet the needs of your application. This series offers 8 different trim functions including 161 key in lever.
Specifications
- § Meets ANSI/BHMA A156.3-2014 Grade 1 testing standards
- § Standard features include scratch-resistant surfaces and deadlocking built into the device
- § UL305 listed panic devices
- § UL10 listed 3-hour fire rated devices for rim and surface vertical applications*
- § Durable, steel mechanism case construction
- § Devices fit standard 1 3⁄4" thick door
- § 3 1 ⁄2" minimum stile width
- § Hex key dogging standard on all panic devices
- § Rim devices and trim are non-handed
- § Surface vertical devices easily field reversible
- § Universal hardware pack for wood and hollow metal
-
§ Door widths:
- − 36" device fits 29" to 36"door size
- − 48" device fits 33" to 48" door size
- * UL listed fire rated devices launching Q2 2018
Available trim
Escutcheon lever - Entrance (212-L) Night latch (212-L-NL)
Raised lip pull plate - Night latch (240-NL) Handle pull plate - Night latch (218-NL)
Handle pull plate - Thumb piece (218-TP)
Key in lever round rose - Entrance (214-KIL) Night latch (214-KIL-NL) Passage (214-KIL-BE)
Available finishes
689/SP28 Aluminum, sprayed
630/US32D Satin stainless steel
How to order
| 20 | R | EO | SP28 | 3' | ||
|---|---|---|---|---|---|---|
| Rating |
F – Fire exit
Blank – Panic exit |
|||||
| Series | 20 | |||||
| Type |
R – Rim
V –Surface vertical rod |
|||||
| Function | EO – Exit Only | |||||
| Finish |
SP28
US32D |
|||||
| Door width |
3'
4' |
To order device, specify: To order trim, specify:
| 212 | L | SP28 | ||
|---|---|---|---|---|
| Type |
212 – Lever trim
214 – Key-in-lever 218 – Handle pull plate 240 – Raised lip pull plate |
|||
| Function |
L, L-NL
KIL, KIL-NL, KIL-BE NL, TP |
|||
| Finish |
SP28
US32D |
