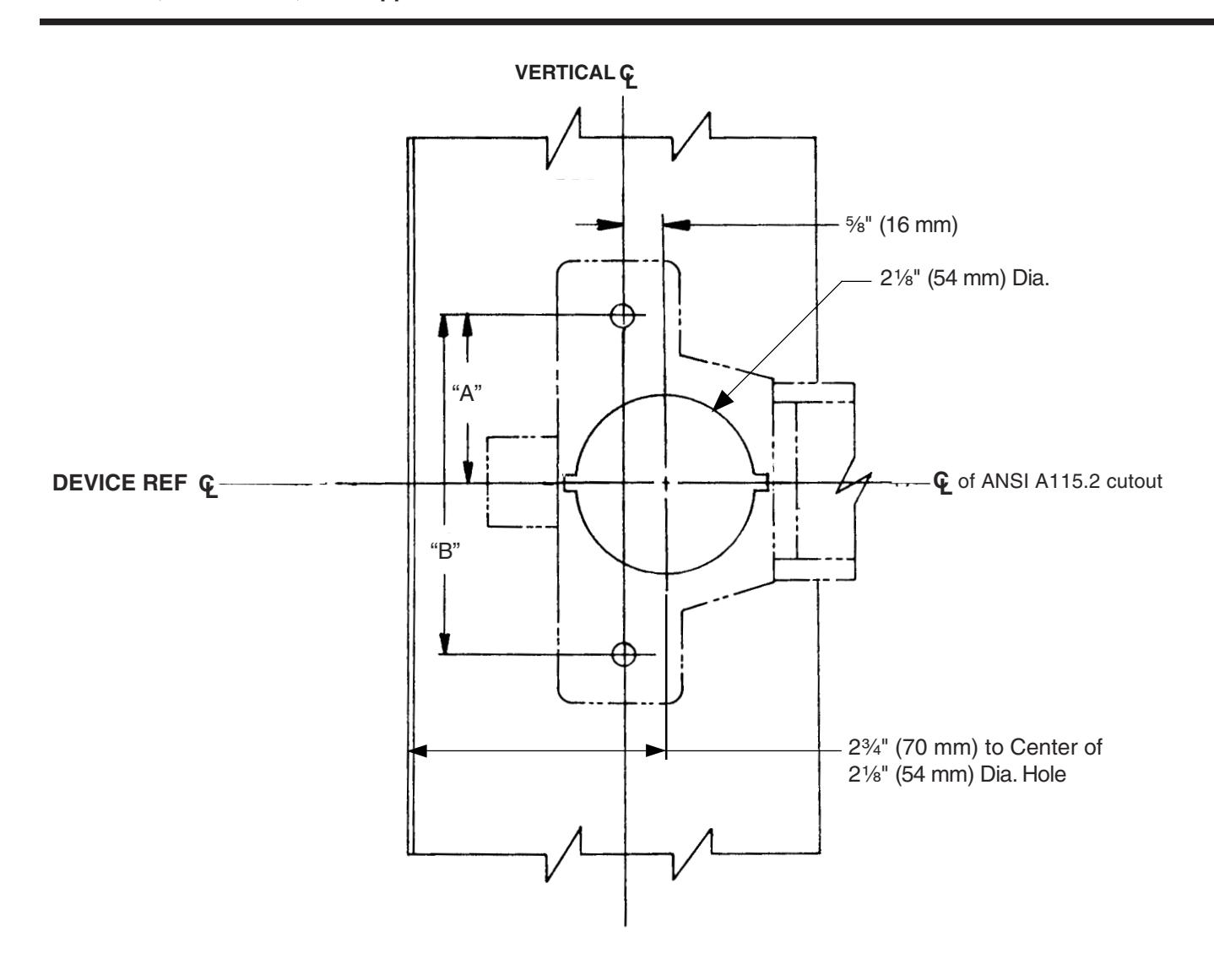

View PDF19 Series Device on ANSI A115.2 Prepared Door
Wood Door, LHR Shown, RHR Opposite
| "A" | "B" | |
|---|---|---|
| With KIK, KIL, or Centron Trim | 1C\v" (44 mm) | 3Z\x" (89 mm) |
| With Control Trim | 2Z\v" (57 mm) | 4Z\x" (114 mm) |
- • For device and trim function and preparation, see appropriate device or trim templates.
- • See ANSI specification A-115.2 for location of cutout.
TEMPLATE
W-4040-b
