Falcon 19 Series Device on ANSI A115.2 Prepared Door Metal Door Template 108598
Open the original PDF document
View PDF19 Series Device on ANSI A115.2 Prepared Door

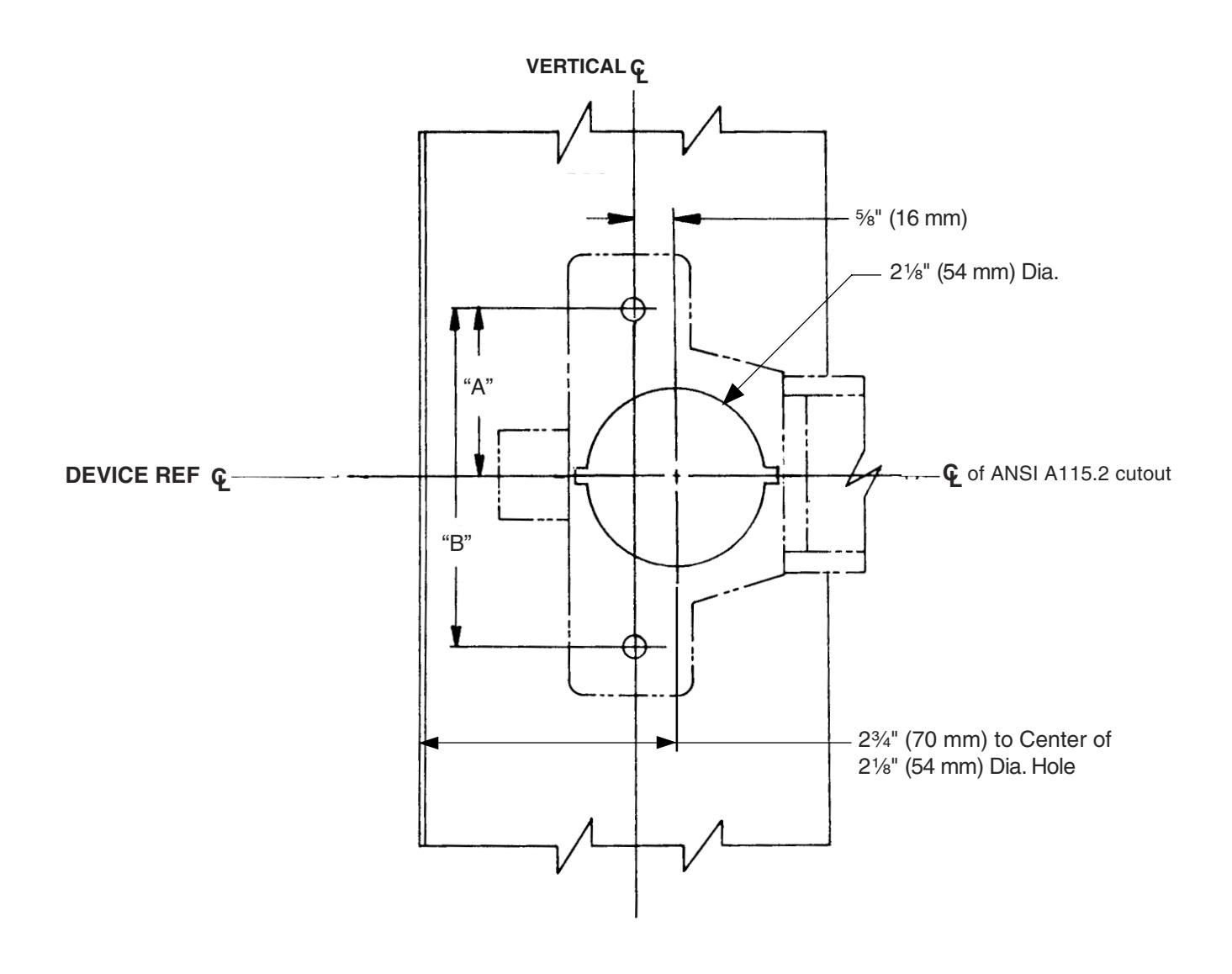

Metal Door, LHR Shown, RHR Opposite
| "A" | "B" | |
|---|---|---|
| With KIK, KIL, or Centron Trim | 1C\v" (44 mm) | 3Z\x" (89 mm) |
| With Control Trim | 2Z\v" (57 mm) | 4Z\x" (114 mm) |
- • For device and trim function and preparation, see appropriate device or trim templates.
- • See ANSI specification A-115.2 for location of cutout.
TEMPLATE
T-4040-b
